WARNING: CHINA
NOTIFICATION: For use at
altitude 2,000 meters or
lower.
Mounting PRO4X

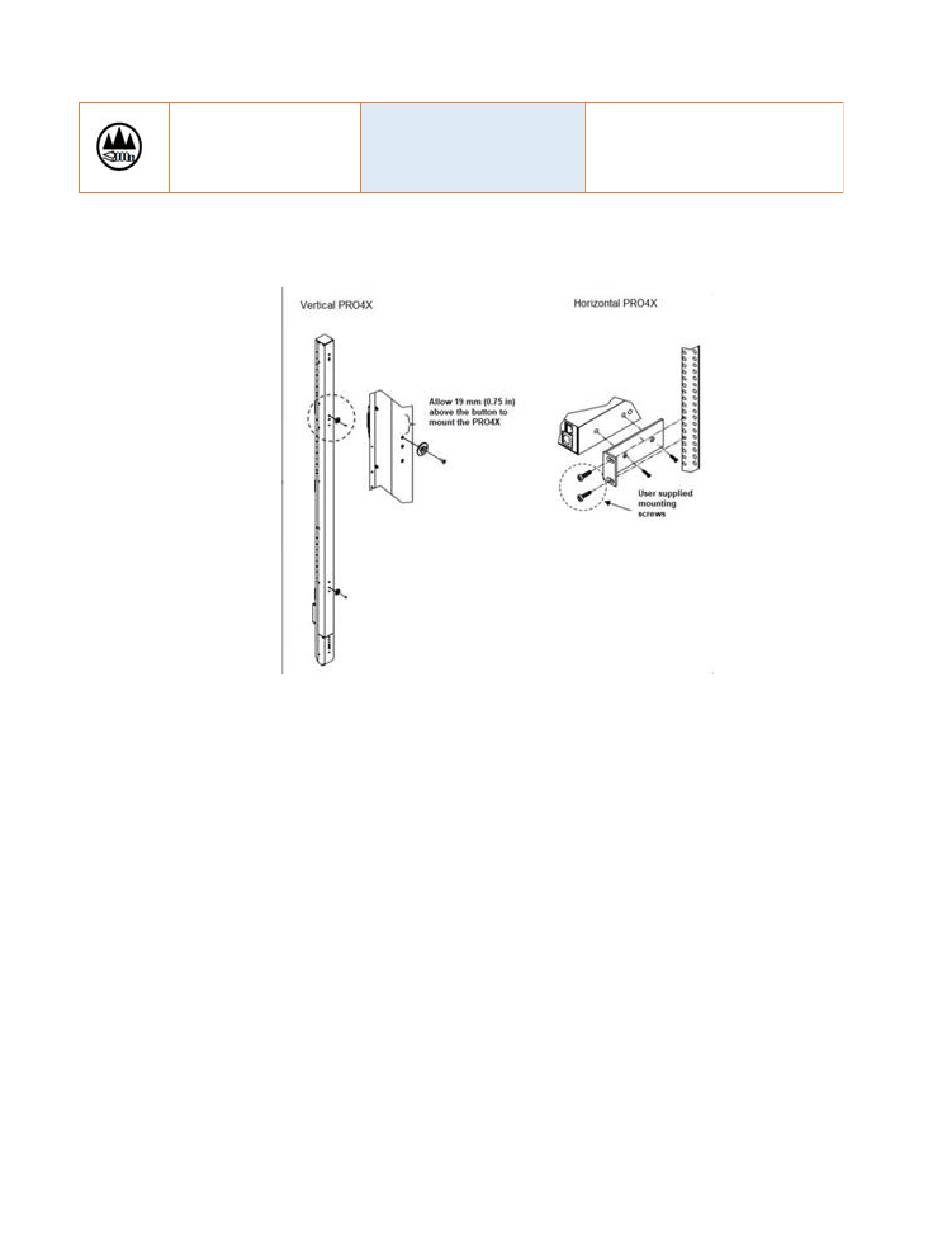

The following illustration shows how to mount the PRO4X unit in vertical or horizontal orientation:
▶
Horizontal/Rack
1. Select the appropriate bracket mounting points for proper mounting depth within the rack.
2. Attach the L-brackets to these mounting points with two screws for each bracket.
3. Install the enclosure into your rack, using the slots in each bracket. The slots allow about 6 mm (0.25 inch) of horizontal
adaptability to align with the mounting holes of your rack.
▶
Vertical
PRO4X units are supplied with button mounting kit(s). Distribute the buttons vertically and attach to the PRO4X as
appropriate for the cabinet. An additional 19 mm (0.75 inch) of clearance is required at the top of the PRO4X to allow the
button to mount into the keyholes.
PRO4X Quick Setup Guide | SPDU_G4_QSG_B1_4.0.40
255-92-0001-00
AVERTISSEMENT : AVIS
CONCERNANT LA CHINE : conçu
pour être utilisé à une altitude
maximale de 2 000 mètres.
WARNUNG: EINSATZLAND CHINA: nur
für den Betrieb auf Höhen bis maximal
2000 m.
