Dual technology wall switch occupancy sensors

Advertisement

Quick Links

No: 24156 – 11/17 rev. 1
Catalog Numbers • Les Numéros de Catalogue • Los Números de Catálogo: DSW-100 v3/DSW-200 v3
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China

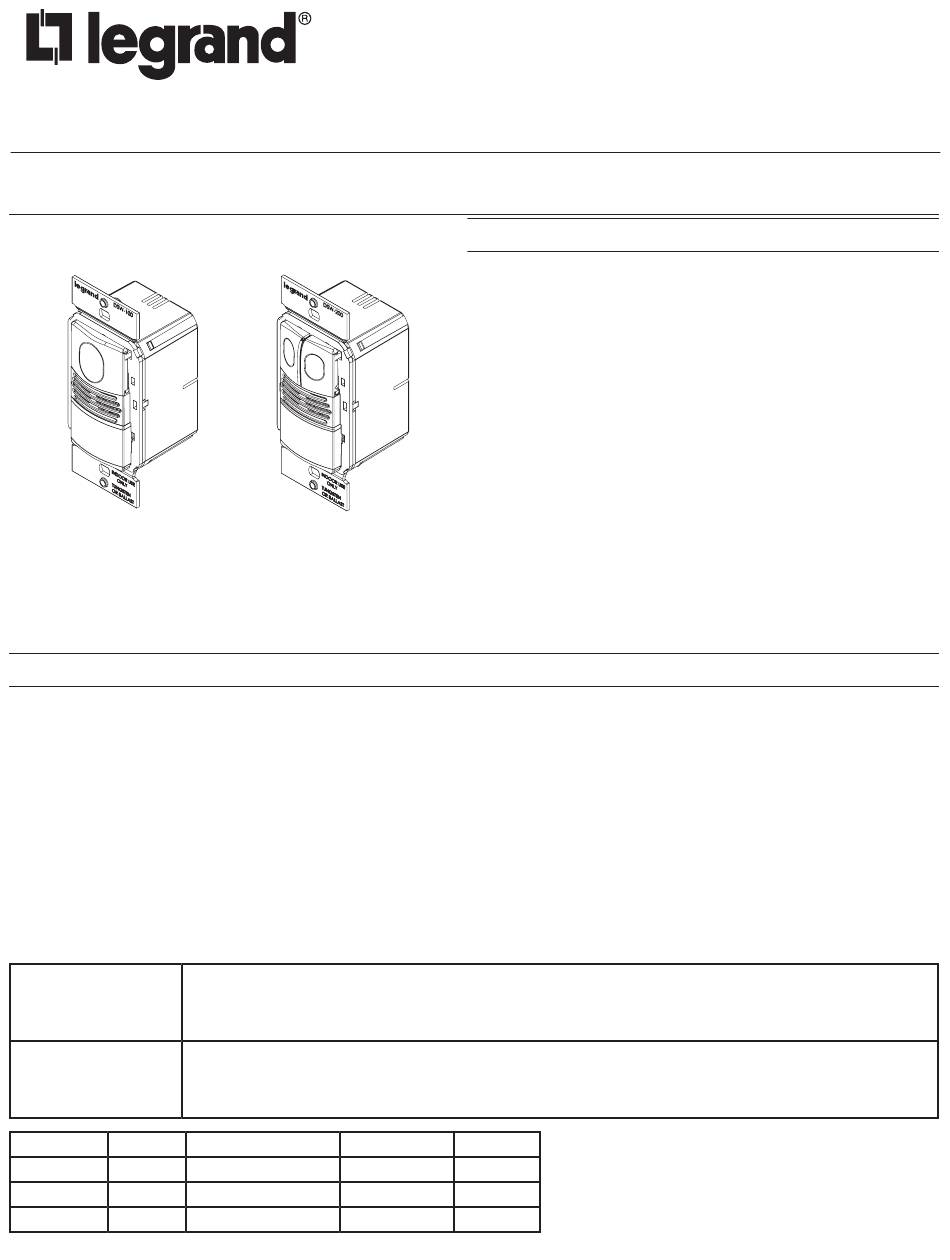

DSW-100
The DSW Dual Technology Wall Switch sensors combine advanced passive infrared (PIR) and ultrasonic technologies into one unit.
The combined technologies help to eliminate false triggering even in difficult applications.
Selectable operating modes allow the sensor to turn a load ON when PIR motion is detected and held ON using either or both
technologies. After no movement is detected for the selected time delay, the lights switch OFF. A "walk-through" mode can turn lights off
after only 3 minutes, if no activity is detected after 30 seconds following an occupancy detection.
The DSW-100 has one relay and one ON/OFF button. The DSW-200 contains two relays and two ON/OFF buttons to allow control of
one or two loads independently. Pressing a button toggles the state of the corresponding relay.
DSW sensors contain a light level sensor. If adequate daylight is present, the sensor holds the load OFF until light levels drop, even if
the area is occupied. In the DSW-200, light level only affects the load on Relay 2. Users can overrule this function by pressing the
ON/OFF button. See Light Level Adjustment.
Turning ON the Load (ON Mode)
The relays are programmed independently for either Auto ON or Manual ON. In either mode, the load can be turned ON or OFF using
the ON/OFF button.
Auto ON
With an ON Mode DIP Switch in the OFF position, the load turns ON and OFF automatically based on
occupancy. If the load is turned OFF manually, Presentation Mode operation applies. This prevents the
DIP 8 OFF for Relay 1
load from turning ON automatically after it was deliberately turned OFF. Pressing the button to turn lights ON
DIP 9 OFF for Relay 2
returns the sensor to Auto ON mode.
Manual ON
With an ON Mode DIP Switch in the ON position, the occupant must press the ON/OFF button to turn ON
the load. The sensor keeps the load ON until no motion is detected for the selected time delay. There is a 30
DIP 8 ON for Relay 1
second re-retrigger delay. If occupancy re-triggers during the delay (see Trigger Mode), the sensor turns the
DIP 9 ON for Relay 2
load back ON. After the re-trigger delay elapses the ON/OFF button must be pressed to turn ON the load.
Model #
Relay
DSW-100
1
DSW-200
1
2
DSW-200

DESCRIPTION AND OPERATION

Default ON Mode
DIP Switch #
Manual ON
Auto ON
Manual ON
Wattstopper
Dual Technology Wall Switch Occupancy Sensors
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación

Specifications

Voltages:
DSW-100 & DSW-200 ..................................... 120/277VAC, 50/60Hz
Load Limits for each relay:
@120VAC ...................................0-800W tungsten or ballast, 1/6 HP
@277VAC .................................................................0-1200W ballast
Load Type Compatibility:
Incandescent, fluorescent, magnetic or electronic ballast
Horsepower Rating (each relay) ............................ 1/6 HP @120VAC
Time Delay Adjustment ...................................................... 5 to 30 minutes
Walk-Through Mode ....................3 minutes if no activity after 30 sec.
Test Mode .......................... 5 sec. for 10 min. with DIP switch setting
PIR Adjustment .................................................... High or Low (DIP switch)
Ultrasonic Adjustment ......................... Minimum to Maximum (trimpot), Off
Frequency .................................................................................40kHz
Light Level Adjustment ........................................................... 8fc to 180+fc
Alerts ...........................................................................................................
Selectable Audible
US Patents: 5640113, 6617560
Setting
8
ON
8
OFF
9
ON
®
SPECIFICATIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wattstopper DSW-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for LEGRAND Wattstopper DSW-100

  • Page 1 Wattstopper ® Dual Technology Wall Switch Occupancy Sensors No: 24156 – 11/17 rev. 1 Installation Instructions • Instructions d’Installation • Instrucciones de Instalación Catalog Numbers • Les Numéros de Catalogue • Los Números de Catálogo: DSW-100 v3/DSW-200 v3 Country of Origin: Made in China • Pays d’origine: Fabriqué en Chine • País de origen: Hecho en China SPECIFICATIONS Specifications Voltages:...
  • Page 2 Presentation Mode This is a feature of the Auto ON mode. When both relays are manually turned OFF the DSW holds the lights OFF until no motion has been detected for the duration of the Time Delay. With subsequent occupancy, the DSW turns the load ON. If both relays are ON and one relay is manually turned OFF this relay remains OFF until both the Time Delay and retrigger delay expires for the relay that is ON, after that time the ON Mode control settings again apply.
  • Page 3 COVERAGE PATTERNS Coverage testing has been performed according to the NEMA WD 7 guideline. For best Major motion Major motion Minor motion Minor motion performance, use in spaces not larger than Ultrasonic 18' x 15'. Top View Coverage Coverage PIR Sensor 35’...
  • Page 4 No. 24156 – 11/17 rev. 1 © Copyright 2017 Legrand All Rights Reserved. 800.879.8585 © Copyright 2017 Tous droits réservés Legrand. www.legrand.us/wattstopper © Copyright 2017 Legrand Todos los derechos reservados.
