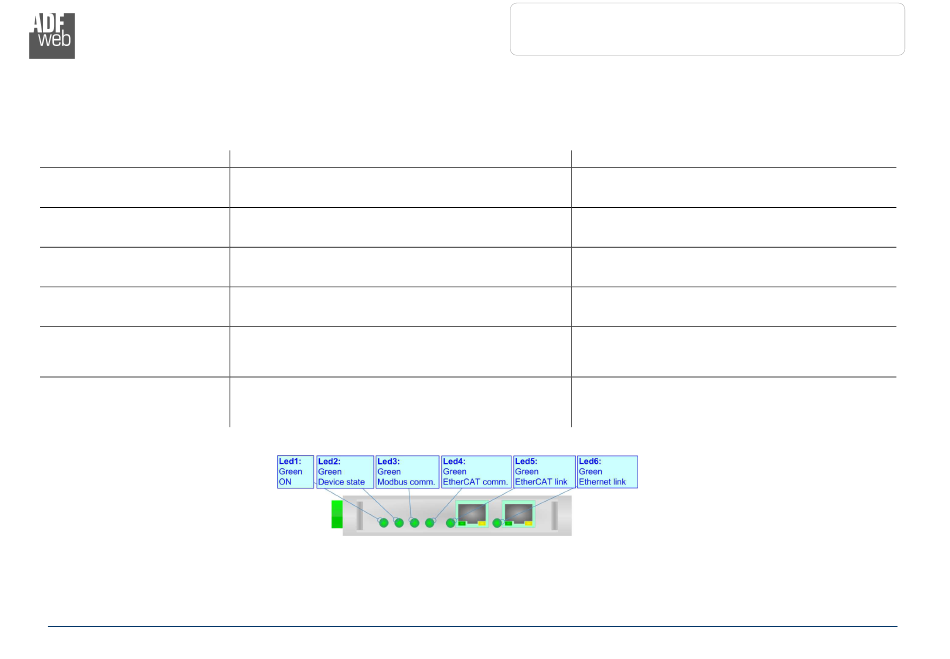

LEDS:

The device has got seven LEDs that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: ON [supply voltage ]
(green)
2: Device State (green)
3: EtherCAT comm. (green)
4: Modbus comm. (green)
5: EtherCAT link (green)
6: Ethernet link (green)
ADFweb.com S.r.l.
Normal Mode
ON: Device powered
OFF: Device not powered
Blinks slowly (~1Hz)
It blinks when EtherCAT communication is running
It blinks when Modbus communication is running
ON: EtherCAT cable connected
OFF: EtherCAT cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
User Manual EtherCAT Master / Modbus Slave
Document code: MN67E52_ENG Revision 1.000
Boot Mode
ON: Device powered
OFF: Device not powered
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
ON: EtherCAT cable connected
OFF: EtherCAT cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
