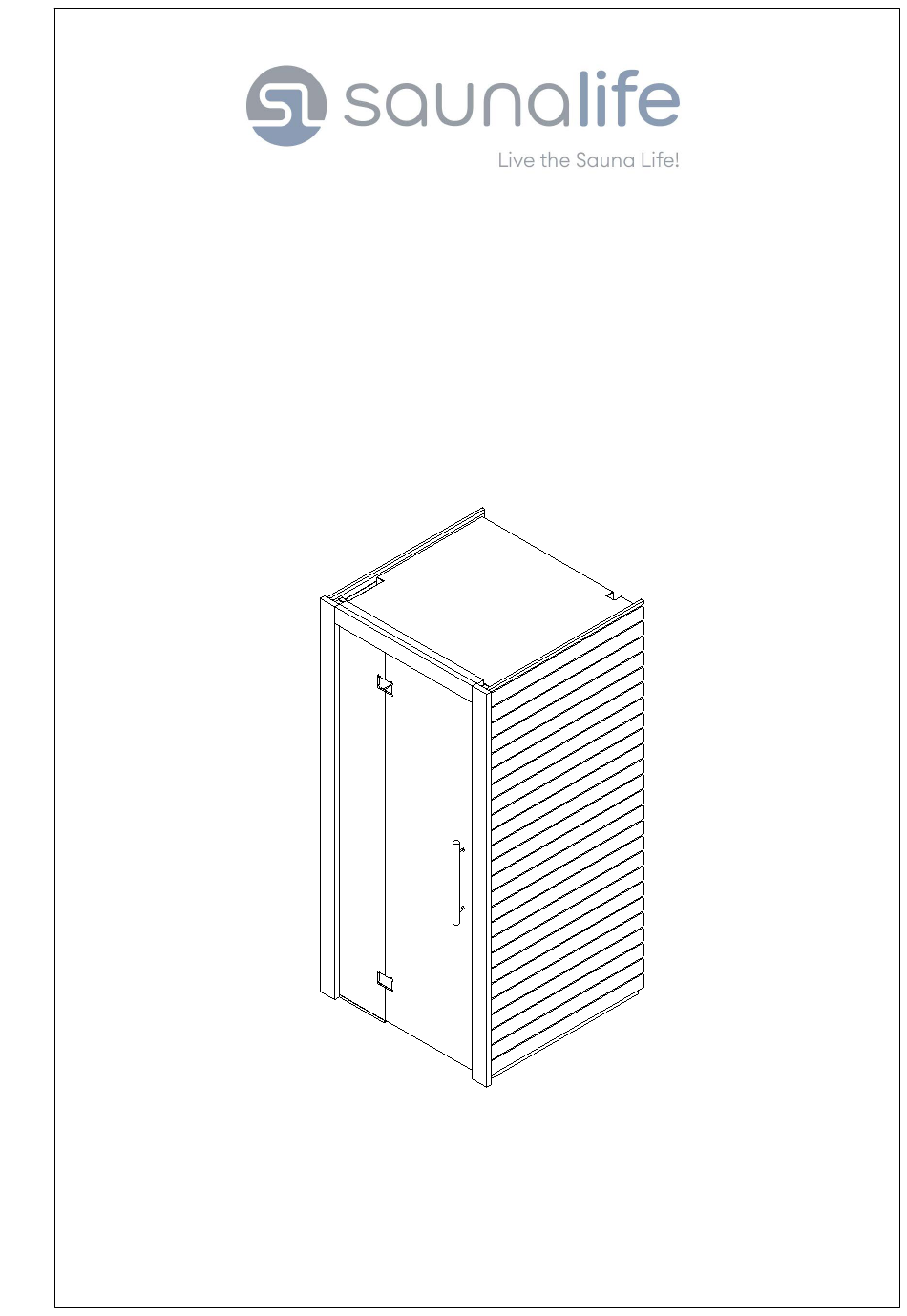

- Page 1 Xperience-Series Model X2 INSTALLATION MANUAL saunalife.com...
- Page 2 Assembly instructions Preparations Sauna package must be stored in a heated and dry room. · Prior to installation ithe package must be opened and stored for 48h to adjust to · relative humidity of the room (72 F, 40-60% RH). Ensure the sauna model fits in the designated room with sufficient extra room for ·...
-
Page 3: Base Frame
BASE FRAME Check substructure level. Sauna must be installed on a level surface. Connect the base frame elements Fix the elements with screws Check baseframe diagonals for equality and right corners Apply silicone under basefame and fix in place NOTE! If the sauna is to be moved after installation, silicone can be installed afterwards. Figure a. - Page 4 Wall elements Start fixing walls from A-B corner Place walls on base frame Fasten screws from top Fix corners outside Figure 2a.
- Page 5 Ceiling elements Place the ceiling element on top of prefiously installed and fixed wall elements (Figure 3a). Check walls for vertical level. Ceiling element must sit flush with walls external layer and with no excessive gaps between internal panels. Fix with screws. NOTE! Do not support elements on edge of previous installed element! Figure 3a.
- Page 6 Bench support placement Place bench supports in sauna, check for level. Fix bench supports with screws. Figure 4a. Figure 4b. 12.2"...
- Page 7 Bench frames Place upper bench frame and fix with screws. Place lower bench frame and fix with screws. NOTE! First fasten the screws on sidewalls, then backwall. Figure 5a.
- Page 8 Bench grids Place bench grids on bench frames Fix bench grids from below with screws *Fixing bench grids helps to prevent bench grid from bending Figure 7a. Bench grid Bench grid...
- Page 9 Backrest Lift backrest in place and fasten with screws, cover screw holes with caps. Figure 8a. Backrest...
- Page 10 8.5 Floor grids Place floor grids Figure 8.5a. Floor grid Floor grid...
- Page 11 LED Light Strips Install the lighting before attaching the benches and backrest Pull the LED strip cables through the pipes to the ceiling Attach the LED strips to the clamps Always use certified electrician! Figure 9a. Figure 9b. Backrest LED...
-
Page 12: Electrical Diagram
Electrical diagram Always use certified electritian! Figure 9.2a. LED strip for the backrest: Junction box 2 Reciever 24v out Transformer 230V in Junction 120V in... - Page 13 10. Heater guard Place heater guard as indicated on Figure 10a Fix heater guard with screws. Figure 10a. Heater guard...
- Page 14 11. Glass wall Apply stripes of silicone on respective lines of glass walls location. Lehngth of stripe equals B (Figure 11b). For silicone stripes distance from the wall check Figure 11b. Lift the glass wall in place and fix with screws. Check the distance (A) between installed walls.
- Page 15 12. Door See drawing on next page Figure 10a.
- Page 16 Door Fit the hinges on door according to Figure 12c. Fit the door to glass wall according to Figure 12c. Fit the handle to the door according to Figure 12b. NOTE! Door must not be supported directly to a hard (tiled, concrete or other) floor due to risk of shattering.
-
Page 17: Finishing Touches
Finishing touches Figure 13.c Multiclip view Fix vertical frames with multiclips. Figure 10.c. Fix horizontal frame with screws from top Frame Frame Frame... - Page 18 Check the functionality of all moving parts. If needed, make adjustments on adjustable components. Before using the sauna read SaunaLife terms and conditions and user manual. IMPORTANT! When first using sauna, it must be gradually and steadily heated to normal operating temperature under constant supervision, and afterwards, thoroughly ventilated due to evaporation of various substances that might be present from production of the sauna and/or its components.
- Page 19 (hot water splashes). 4.3.It is recommended to rinse the sauna stones with water before use. This cleans the stones of any possible processing residue. 4.4.Never use the heater without stones. saunalife.com...
- Page 20 Remove and pools of water from wooden surfaces. · · If the design of the bench allows it, raise the platforms to an upright position to dry. · Let the heater run under supervision for approximately 20 minutes - wooden parts dry more efficiently this way. saunalife.com...
- Page 21 Instructions for use and maintenance of pre-built and pre-assembled indoor and outdoor saunas 8.2. As needed: Wash the surfaces of your sauna with a SaunaLife Sauna Wood Cleaner according to · instructions. Stronger stains can be removed with fine-grained sandpaper. All treated surfaces must be re- ·...
- Page 22 Effective from 1.04.2022 Definitions 1.1 "Manufacturer" is SaunaLife, a division of Bathing Brands, Inc. "Product" means a sauna or sauna product (including a sauna bath, sauna door or sauna accessory) manufactured by the Manufacturer for indoor or outdoor use, whether prefabricated or assembled.
- Page 23 Customer, the Seller or any third party may incur in connection with the use of or inability to use the Product. The Seller may provide additional warranties to the Customer in its name and for its account. The Manufacturer shall not be liable to the Customer for the performance of such warranties. saunalife.com...
