Model X6 Sauna Room
Installation Manual
saunalife.com
800.957.2862

Advertisement

loading

Summary of Contents for saunalife X6

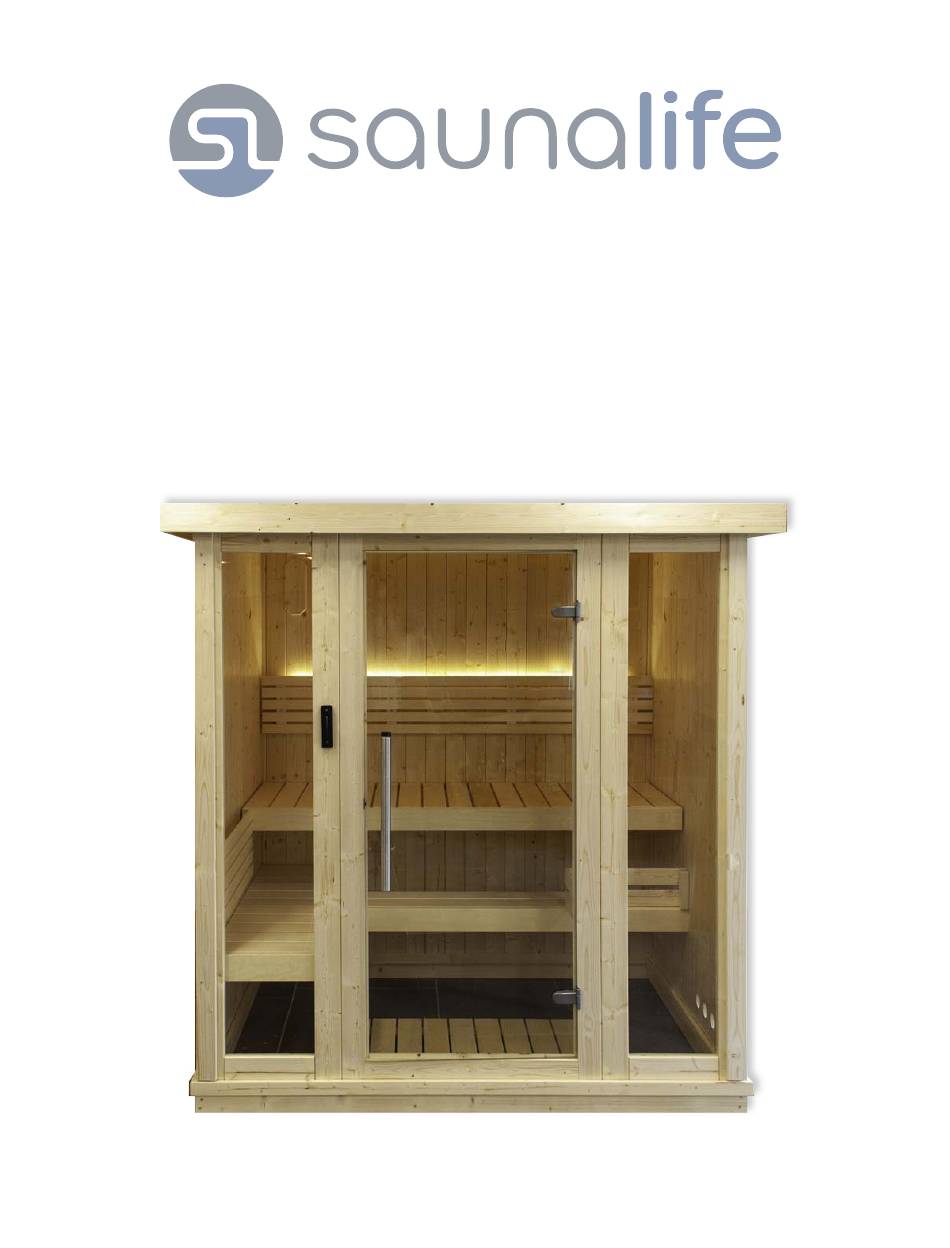

  • Page 1 Model X6 Sauna Room Installation Manual saunalife.com 800.957.2862...
  • Page 2 8 am – 5 pm, Central, M – F. Your SaunaLife X6 sauna is specifically designed to utilize your existing floor. As such, assembly is made very simple since the entire sauna sits on pre-fabricated rails and risers. Your sauna can be assembled on any surface that is firm and flat, including concrete, ceramic, vinyl, laminate or tile.
  • Page 3 Roof 1 (qty. 1) Window element Door element (qty. 2) (qty. 1) Roof 2 (qty. 2) Bench (qty. 1) Bench support (qty. 2) Side bench support 1 (qty. 1) Side bench (qty. 1) Side bench support 2 (qty. 1) Backrest (qty. 1) Cornice board 1 (qty.
  • Page 4 X6 Sauna Model Installation & Owner’s Manual Vent cover (qty. 1) Front wall cover slat Heater fence (qty. 1) (qty. 2) Door handle (qty. 1) Foot rest (qty. 1) Tools required for assembly: Screws Qty.  Cordless drill 4.5 x 80 mm (.19” x 3.14”) ...
  • Page 5 Use a framing square to ensure the assembly is square. Floor Raiser 2 Floor Raiser 1 Pre-drill holes for the screws Screws 4.5 x 80 Floor Raiser 2 Floor Raiser 1 saunalife.com 800.957.2862...
  • Page 6 STEP 2. Tenon Connect Wall Support Rails Support Rail 1 Each wall support has a pre-drilled slot for a Tenon. Insert the tenons in the longer support rail holes. Fasten the wall support rails together and connect from corners using four 3.5 x 20 Support Rail 2 screws per corner.
  • Page 7 STEP 3. Position Wall Support Rails Lay the wall support rail assembly squarely on top of the floor risers with the groove facing up. The rails should overlap both sides of the riser by approximately 0.5”. Secure the assembly to the floor risers using four 4 x 50 screws evenly spaced on each wall support rail.
  • Page 8 STEP 4. Position Wall Sections (Back Wall 1 & Side Wall 1) Position Back Wall Section 1 in the groove of the back rail and push it flush against the left rail. Have a helper hold back wall section. Orient Side Wall Section 1 and place it in the groove of the left rail.
  • Page 9 STEP 5. Position Back Wall Sections 2 & 3, & Side Wall 1 Position Back Wall 2 section into the groove of the back rail. Attach it to Back Wall section 1 by way of the tongue and groove fit. Secure it by tapping it into place with a rubber mallet. Repeat this step for Wall Section 3, again tapping it into place with a rubber mallet.
  • Page 10 STEP 6. Position Side Wall Section 2, Window Section & Door Section Position Side Wall Section 2 into the groove of the side rail. Slide Side Wall Section 2 into place with side Wall Section 1. Section 2 connects to Section 1 via tongue and groove so there is no need to use screws.
  • Page 11 Now, making sure Window Section and Side Wall 3 are flush with each other, secure them with 4.5 x 70 screws. Side Wall 3 Window Pre-drill holes Screws for the screws 4.5 x 70 saunalife.com 800.957.2862...
  • Page 12 STEP 8. Assemble & Position Roof Support Rails Connect Roof Support Rails in the same way as Step 2. Place the assembly on top of the wall sections so that the wall sections fit snugly into the groove. When in place, secure to the assembly to the walls using four 4 x 50 screws on each rail.
  • Page 13: Bench Installation

    STEP 9. Bench Installation Use 4.5 x 70 screws to connect the Bench Supports to the wall. Make sure the supports in both walls are in same height. When the supports are assembled place the bench on the supports. Use three 4.5 x 70 screws to connect the seat bench to the back wall. Bench Support Screws...
  • Page 14 Window Section using 4 x 60 screws. Place the side bench on the supports and fasten wit three 4.5 x 70 screws to the side wall element. Pre-drill holes for the screws Screws Side Bench 4.5 x 70 Support 1 saunalife.com 800.957.2862...
  • Page 15 X6 Sauna Model Installation & Owner’s Manual Side Bench Support 2 Screws 4 x 60 Screws 4.5 x 70 saunalife.com 800.957.2862...
  • Page 16 STEP 11. Backrest & Lower Backrest Installation Center the Backrest between the two sides and position it vertically at a height most comfortable for you (typically 8-12” from the bench). Using a level to ensure proper installation, fasten the Backrest into place using 4 x 60 screws. Using a level, secure the Lower Backrest to side wall section with 4 x 60 screws at the same height above the upper long bench.
  • Page 17 X6 Sauna Model Installation & Owner’s Manual Lower Backrest Screws 4 x 60 saunalife.com 800.957.2862...
  • Page 18 From the backside, roof panels must be in the same line with ceiling supports. Position the both sides equally 1.875”. Connect panels with 4 x 50 screws. Screws Roof 3 Roof 2 4 x 50 Roof 1 Pre-drill holes for the screws saunalife.com 800.957.2862...
  • Page 19 STEP 13. Cornice Boards Connect the Cornice Boards to the roof, using 3.5 x 40 screws. Cornice Cornice Board 2 Board 1 Cornice Board 2 Screws 3.5 x 40 saunalife.com 800.957.2862...
  • Page 20 STEP 14. Cover Slats to the Front Wall Connect the Cover Slats using 3.5 x 40 screws Pre-drill holes for the screws Cover Slat STEP 15. Heater Fence Connect the Heater Cover to the wall with 4 x 60 screws. Perform this step after heater is installed.
  • Page 21 STEP 16. Vent Cover & Door Handle Connect the Vent Cover with 3.5 x 40 screw. Between wall and Vent Cover add small washer. Washer saunalife.com 800.957.2862...
  • Page 22 Connect the Foot Rest with 4.5 x 70 screws from one side to the Side Bench and from the other side to the side wall. Two screws per side. Measure from front wall must be 22.14” Screws 4.5 x 70 Floorplan View Foot rest saunalife.com 800.957.2862...
