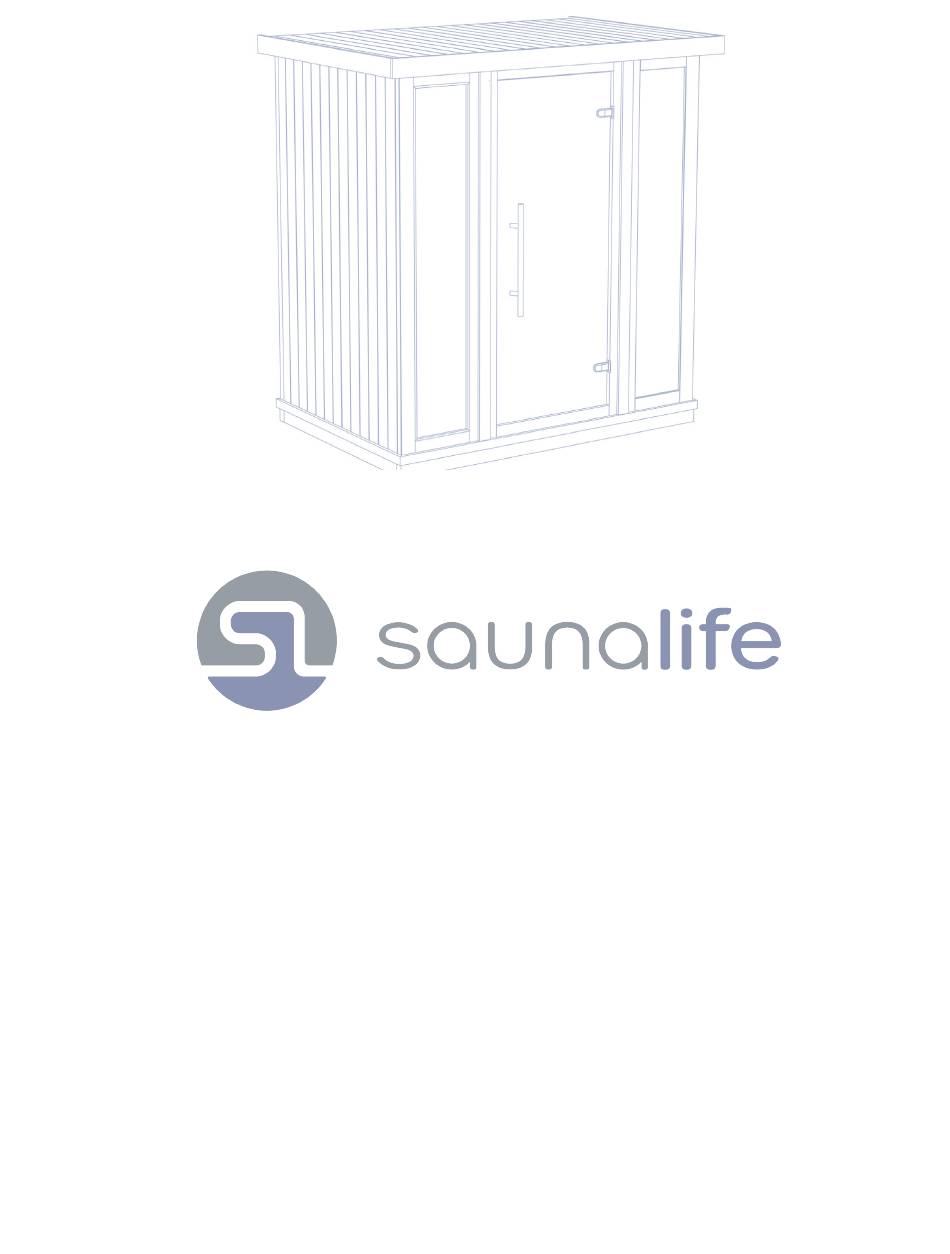

- Page 1 Model X7 Sauna Room Installation Manual...
- Page 2 Floor Raiser 1 Floor Raiser 2 Support Rail 1 Support Rail 2 Back Wall 1...
- Page 3 Back Wall 2 Back Wall 3 Side Wall 1 Side Wall 2 Side Wall 3 Window Element...
- Page 4 Door Element Roof 1 Roof 2 Roof 3 Bench Side Bench...
- Page 5 Backrest Lower Backrest Bench Support Side Bench Support 1 Side Bench Support 2 Cornice Board 1 Cornice Board 2...
- Page 6 Heater Cover Front Wall Cover Slat Vent Cover Door Handle Footrest Screws 4.5 x 80mm (.19" x 3.14") 4.5 x 70mm (.17" x 2.75") 4 x 60mm (.15" x 2.36") 4 x 50mm (.15" x 1.96") 3.5 x 40mm (.13" x 1.57") Vent Cover Washer Tenon...
- Page 7 Step 1. Connect the Four Floor Risers Fasten the four Floor Risers together using 4.5x80 screws, being sure the two shorter boards are located on the Pre-drill holes for sides and the two longer boards are on the front and back. the screws Use a framing square to ensure the assembly is square.
- Page 8 Step 3. Position Wall Support Rails Lay the wall support rail assembly squarely on top of the floor risers with the groove facing up. The rails should overlap both sides of the riser by approximately 0.5”. Secure the assembly to the floor risers using four 4x50 screws evenly spaced on each wall support rail Screws 4x50...
- Page 9 Step 5. Position Back Wall Sections 2 & 3, and Side Wall 1 Position Back Wall 2 section into the groove of the back rail. Attach it to Back Wall section 1 by way of the tongue and groove fit. Secure it by tapping it into place with a rubber mallet.
-
Page 10: Window Section
Step 7. Position Side Wall Section 3 and Window Section Position Side Wall Section 3 into the groove of the side rail so that the heater vent holes are located at the bottom. Slide wall section into place with Side Wall Section 1. Side Wall 3 connects to Side Wall 1 via tongue and groove so there is no need to use screws. -
Page 11: Step 9. Bench Installation
Step 9. Bench Installation Use 4.5x70 screws to connect the Bench Supports to the wall. Make sure the supports in both walls are in same height. When the supports are assembled place the bench on the supports. Use three 4.5x70 screws to connect the seat bench to the back wall. Bench Support Screws... - Page 12 Step 10. Side Bench Installation Attach the Side Bench Support 1 to the back wall using two 4.5x70 screws. Side Bench Support 2 connects to the Window Section using 4x60 screws. Place the side bench on the supports and fasten wit three 4.5x70 screws to the side wall element.
- Page 13 Step 11. Backrest and Lower Backrest Installation Center the Backrest between the two sides and position it vertically at a height most comfortable for you (typically 8-12” from the bench). Backrest Using a level to ensure proper installation, fasten the Backrest into place using 4x60 screws.
- Page 14 Step 12. Position Roof Sections Place the Roof Panels on top of the ceiling supports. Connect the sections via the tongue and groove fit. Screws From the backside, roof panels must be in the same 4x50 Roof 2 Roof 3 line with ceiling supports.
- Page 15 Step 14. Cover Slats to the Front Wall Connect the Cover Slats using 3.5x40 screws Screws 3.5x40 Step 15. Heater Cover Cover Cover Slat Connect the Heater Cover to the wall with 4x60 screws. Perform this step after the heater is installed. Note: Follow heater manufacturer recommended installation for heater guard.
- Page 16 Step 17 Footrest Installation Connect the Footrest with 4.5x70 screws from one side to the Side Bench and from the other side to the side wall. Two screws per side. Measure from front wall must be 22.14" Footrest Screws 4.5x70 Floorplan View REV: X703923...
