Summary of Contents for saunalife X6

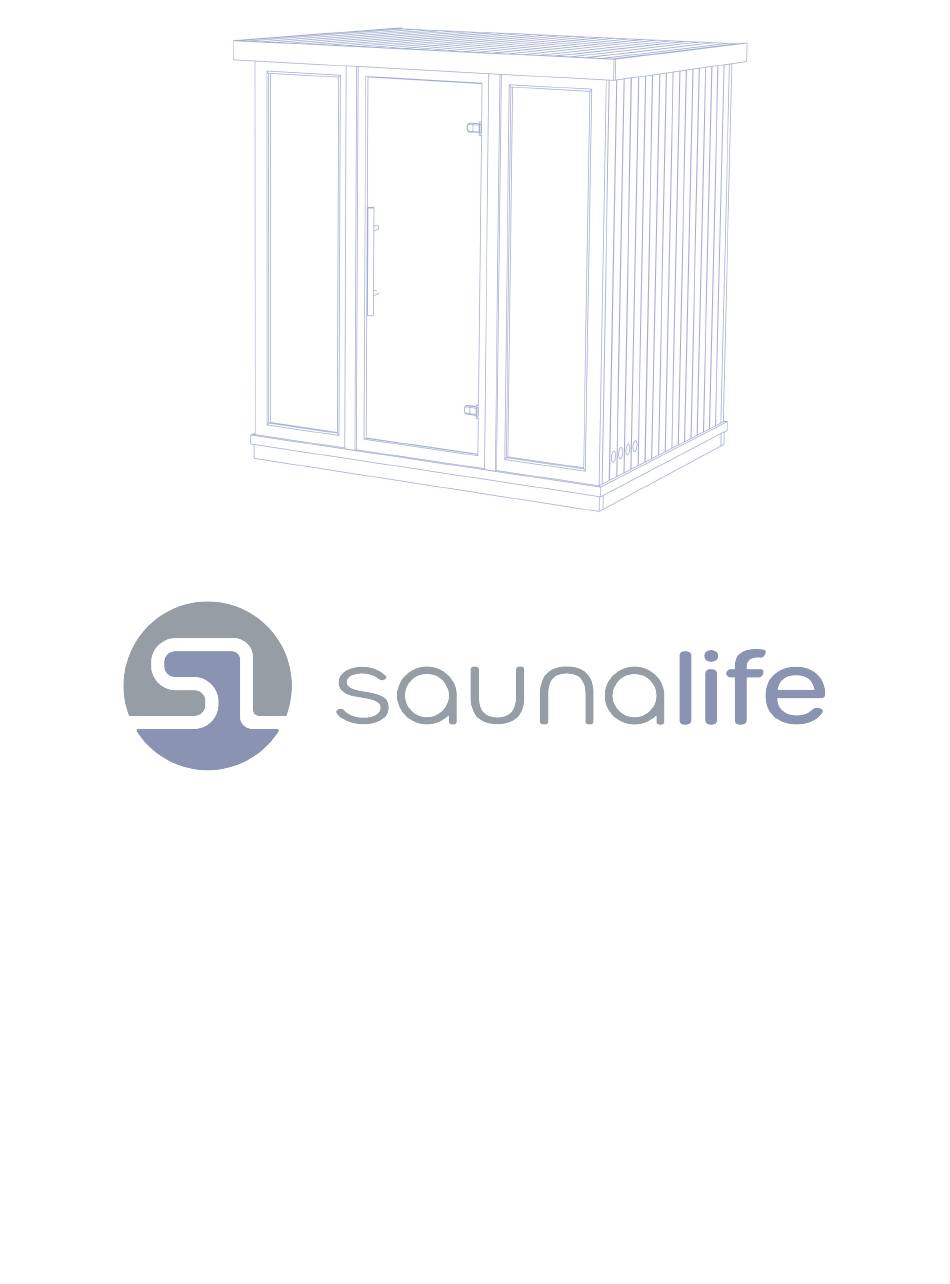

- Page 1 Model X6 Sauna Room Installation Manual...
- Page 2 Floor Raiser 1 Floor Raiser 2 Support Rail 1 Support Rail 2 Back Wall 1...
- Page 3 Back Wall 2 Back Wall 3 Side Wall 1 Side Wall 2 Side Wall 3...
- Page 4 Window Element Door Element Roof 1 Roof 2 Upper Bench...
- Page 5 Lower Bench Side Bench Backrest 1 Backrest 2 Backrest 3 Bench Support 1 Bench Support 2...
- Page 6 Side Bench Support 1 Side Bench Support 2 Backrest 2 Vertical Slat Cornice Board 1 Cornice Board 2 Heater Cover Front Wall Cover Slat...
-
Page 7: Vent Cover
Vent Cover Door Handle Screws 4.5 x 80mm (.19" x 3.14") 4.5 x 70mm (.17" x 2.75") 4 x 60mm (.15" x 2.36") 4 x 50mm (.15" x 1.96") 3.5 x 40mm (.13" x 1.57") 3.5 x 35mm (.13" x 1.37") 3.5 x 25mm (.13"... - Page 8 Step 1. Connect the Four Floor Risers Fasten the four Floor Risers together using 4.5x80 screws. Be sure the two shorter boards are located on the sides and the two longer boards are on the front and Pre-drill holes for back.
- Page 9 Step 3. Position Wall Support Rails Lay the wall support rail assembly squarely on top of the floor risers with the groove facing up. The rails should overlap both sides of the riser by approximately 0.5”. Secure the assembly to the floor risers using four 4x50 screws evenly spaced on each wall support rail Screws 4x50...
- Page 10 Step 5. Position Back Wall sections 2 & 3, & Side Wall 1 Position Back Wall 2 section into the groove of the back rail. Attach it to Back Wall Section 1 by way of the tongue and groove fit. Secure it by tapping it into place with a rubber mallet.
- Page 11 Step 7. Position Window section and Side Wall section 3 Position Side Wall Section 3 into the groove of the Side Rail orienting it so that the heater vent holes are located at the bottom. Slide the wall section into place with Side Wall section 1.
- Page 12 Step 9. Bench and Lower Bench installation Use 4.5x70 screws to connect the Bench Supports to the wall. Make sure the supports in both walls are the same height. When the supports are assembled, place the benches on the supports. Use three 4.5x70 screws to connect the Seat Bench to the Back Wall. Screws 4.5x70 20.3"...
- Page 13 Step 10. Backrest Installation Center the Backrest between the two sides and position it at a height most comfortable for you (typically 8-12” from the bench). Use a level to ensure proper installation. Fasten the Backrest in place using 4x60 screws. Use 3.5x25 screws to connect the vertical slats to the backrest, refer to the dimensions on drawings.
- Page 14 Step 11. Side Bench installation Attach the Side Bench Support 1 to the Lower Bench, using two 4.5x70 screws. The gap between the support and the side wall must be 2". Side Bench Support 2 connects to the window section using 4x60 screws. Support must be in the same height with lower bench.
- Page 15 Step 12. Lower Backrest installation Using a level, secure the Lower Backrest to side wall section with 4x60 screws at the same height above the upper long bench. Screws 4x60 Step 13. Position Roof Sections Pre-drill holes for the screws Place the Roof Panels on top of the Ceiling Supports.
- Page 16 Step 14. Cornice Boards Connect the Cornice Boards to the roof, using 3.5x40 screws. Cornice Board 2 Cornice Board 2 Screws Cornice Board 1 3.5x40 Pre-drill holes for the screws Step 15. Vent Cover and Door Handle. Connect Vent Cover with 3.5x40 screw. Between wall and Vent Cover add Small Washer.
- Page 17 Step 16. Heater Cover Connect the Heater Cover to the wall with 4x60 screws. Perform this step after heater is installed. Note: Follow heater manufacturer recommended installation for heater guard. Pre-drill holes for the screws Screws 4x60 4x60 Step17. Cover Slats for the front wall Connect the Cover Slats using 3.5x40 screws.
