HGA-6000 High Gain Antenna Installation Manual Document number 862-A0059_IM Issue Date 08 Oct 2015 Filename 862-A0059_IM_ISS1.7 (HGA-6000 INSTALLATION MANUAL).DOCX Form #: 875-A0064...
Page 3
Despite this warning, specific system configurations may have a much shorter safe distance. This is dependent on factors like the number of channels used, the use of cooperative channels etc. Should shorter safe distances be a requirement in a specific application, please contact Cobham or the manufacturer of the SDU equipment.
Page 5
HGA-6000 High Gain Antenna Installation Manual IST OF IGURES Figure 1 : Block diagram of HGA-6000 in a SATCOM system ............8 Figure 2 : HGA-6000 & Slimline HGA-6000 High Gain Antennas ........... 9 Figure 3 : HGA-6000 bottom view ................... 10 ...
Page 6
HGA-6000 High Gain Antenna Installation Manual ACRONYMS Aircraft Maintenance Organization ARINC Aeronautical Radio Inc. American Wire Gauge BITE Built-in Test Equipment Beam Steering Unit Decibel DLNA Duplexer / Low Noise Amplifier Federal Aviation Administration Gigahertz Global Positioning System High Gain Antenna...

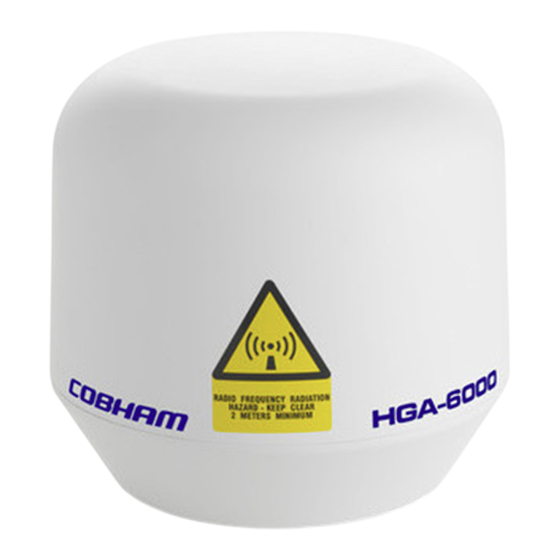

Aero-H antenna, and is approved for use with Aero-H/H+, Swift64 and SwiftBroadband SATCOM Systems. 2) The Slimline HGA-6000 antenna is the same basic antenna with a different dust-cover shape. Throughout this manual, the two antennas can be considered to be the same other than when specifically detailed.
3. EQUIPMENT DESCRIPTION 3.1 SYSTEM OVERVIEW 1) The purpose of the HGA-6000 Antenna System is to provide an L-band RF link between Inmarsat Aero-H/H+, Swift64 and SwiftBroadband SATCOM systems and an Inmarsat satellite. 2) The HGA-6000 High Gain Antenna is used together with the following subsystems interconnected as shown in Figure 1: a) HGA-6000 High Gain Antenna, Cobham Part Number 677-A0161.
Two interfaces are provided for controlling the antenna: An ARINC 429 Interface and a Coaxial Modem Interface: The HGA-6000 is capable of interfacing directly to the ARINC 429 interface of an SDU (as defined in ARINC 741 [1]). In this configuration the antenna will accept the commands normally intended for a Beam Steering Unit (BSU).
HGA-6000 High Gain Antenna Installation Manual Figure 6 : Slimline HGA-6000 side view Document: 862-A0059_IM issue 1.7 COMPANY CONFIDENTIAL Page 13 of 37...
HGA-6000 High Gain Antenna Installation Manual 3.2.3 HGA-6000 Electrical Interfaces 1) The HGA-6000 interfaces to the aircraft are typically done via 2 cables that exit from the base of the unit. J1: L-Band Feed L-Band Rx: 1525 to 1559 MHz ...
3.2.3.2 HGA-6000 to SDU Interconnection Connecting the antenna to the SDU using the Modem Interface is done via a single coaxial cable. Details are not given in this manual for this option, please contact Cobham for further details in this regard.
Page 17
HGA-6000 High Gain Antenna Installation Manual THIS PAGE LEFT BLANK INTENTIONALLY Document: 862-A0059_IM issue 1.7 COMPANY CONFIDENTIAL Page 17 of 37...
* NOTE: Contact Cobham for Variation part number details The following items are not permanently installed on the aircraft as part of the SATCOM system but are required during the installation and/or maintenance process. Table 5 : Test Equipment Required for HGA-6000 system installation EQUIPMENT PURPOSE...
If using a non-Cobham SDU, run the Antenna Systems Support software (see Appendix B). Installation angles are now entered. If using a Cobham SDU, then the install angles may be stored in the SDU. Refer to the Swift64 or SwiftBroadband SDU installation manuals.
The installation mounting plate or structure must provide a flat platform for the HGA-6000. The HGA-6000 is fixed to the mounting plate/structure by means of four ¼ inch 28UNF screws which screw into the base of the antenna from below. A locking wire thread insert in each of the four mounting holes will ensure that the screws remain secure.
Page 21
HGA-6000 High Gain Antenna Installation Manual 4.2.2.2 Data required during installation process Once the antenna is installed the installation angles of the antenna must be entered manually. It is recommended that these angles be measured before the antenna is mounted as it may be difficult to measure these angles once the antenna is in place.
Retain access to antenna installation for this purpose 6) Connect a PC to the HGA-6000 maintenance port. This step is not required if you are using the SDU-73XX or the BSU-7100. The offset angles may be programmed in the Antenna or the BSU/SDU, which is preferable.
Page 23
HGA-6000 High Gain Antenna Installation Manual THIS PAGE LEFT BLANK INTENTIONALLY Document: 862-A0059_IM issue 1.7 COMPANY CONFIDENTIAL Page 23 of 37...
5. HGA-6000 MAINTENANCE, INSPECTION, REPAIR AND SERVICING 5.1 Scheduled Maintenance The HGA-6000 does not require scheduled maintenance or adjustment. 5.2 Inspection The recommended inspection interval is equal to the Mandatory Periodic Inspection interval for the aircraft type on which it is fitted or 600 hours, whichever is shorter.
5.3 Built-In Test Log Analysis 1) This inspection should be performed whenever antenna malfunction is suspected. 2) Connect a PC to the RS-232 maintenance interface of the HGA-6000 and using the installation software, select HGA-6000 maintenance option and follow the on-screen instructions.
Page 26
HGA-6000 High Gain Antenna Installation Manual THIS PAGE LEFT BLANK INTENTIONALLY Document: 862-A0059_IM issue 1.7 COMPANY CONFIDENTIAL Page 26 of 37...
HGA-6000 High Gain Antenna Installation Manual APPENDIX A: EXAMPLES OF INSTALLATION CONFIGURATIONS Document: 862-A0059_IM issue 1.7 COMPANY CONFIDENTIAL Page 27 of 37...
HGA-6000 High Gain Antenna Installation Manual Figure 9 : Cobham SwiftBroadband System using SRS-7200 AHRS System Figure 10 : Cobham SwiftBroadband System using IRS System Document: 862-A0059_IM issue 1.7 COMPANY CONFIDENTIAL Page 28 of 37...
HGA-6000 High Gain Antenna Installation Manual Figure 11 : SwiftBroadband SATCOM System using HLD and IRS Navigation System HGA-6000 High Gain Antenna Tx & Rx DLNA ARINC 429 Interface DC Power High Power Amplifier ARINC 741 SDU Figure 12 : ARINC 741 SATCOM System using IRS Navigation System Document: 862-A0059_IM issue 1.7...
HGA-6000 High Gain Antenna Installation Manual APPENDIX B: ANTENNA SUPPORT SOFTWARE GUIDE Document: 862-A0059_IM issue 1.7 COMPANY CONFIDENTIAL Page 30 of 37...
Page 31
SwiftBroadband SDU. The following figures depict the initial antenna installation step-by-step. Step 1: Run the Antenna Systems Support software Step 2: For initial HGA-6000 installation, click (1), then (2) Document: 862-A0059_IM issue 1.7 COMPANY CONFIDENTIAL...
Page 32
HGA-6000 High Gain Antenna Installation Manual Step 3: Fill in at (1), click on (2) Step 4: Fill in at (1), click on (2) Document: 862-A0059_IM issue 1.7 COMPANY CONFIDENTIAL Page 32 of 37...
Page 33
HGA-6000 High Gain Antenna Installation Manual Step 5: Fill in at (1), select misalignment angle correction at (2) and click on (3) Step 6: Select (1) and click on (2) Document: 862-A0059_IM issue 1.7 COMPANY CONFIDENTIAL Page 33 of 37...
Page 34
HGA-6000 High Gain Antenna Installation Manual Step 7: Do NOT select any at (1), click on (2) Step 8: Click on (1) Document: 862-A0059_IM issue 1.7 COMPANY CONFIDENTIAL Page 34 of 37...
Page 35
HGA-6000 High Gain Antenna Installation Manual Step 9: If “Antenna” was selected in Step 5, fill in and select (1), click on (2). If “SDU” was selected in Step 5, skip to step 11. Step 10: Fill in and select (1), click on (2) Document: 862-A0059_IM issue 1.7...
Page 36
HGA-6000 High Gain Antenna Installation Manual Step 11: Select (1), (2), then click on (3) Step 12: See results at (1), click on (2) Document: 862-A0059_IM issue 1.7 COMPANY CONFIDENTIAL Page 36 of 37...
Page 37
HGA-6000 High Gain Antenna Installation Manual Step 13: Click on (1) if you want to exit application, click on (2) if you want to stay in program Step 14: View log file in Log directory Document: 862-A0059_IM issue 1.7 COMPANY CONFIDENTIAL...
