AXIOMTEK PICO840 Quick Installation Manual page 2

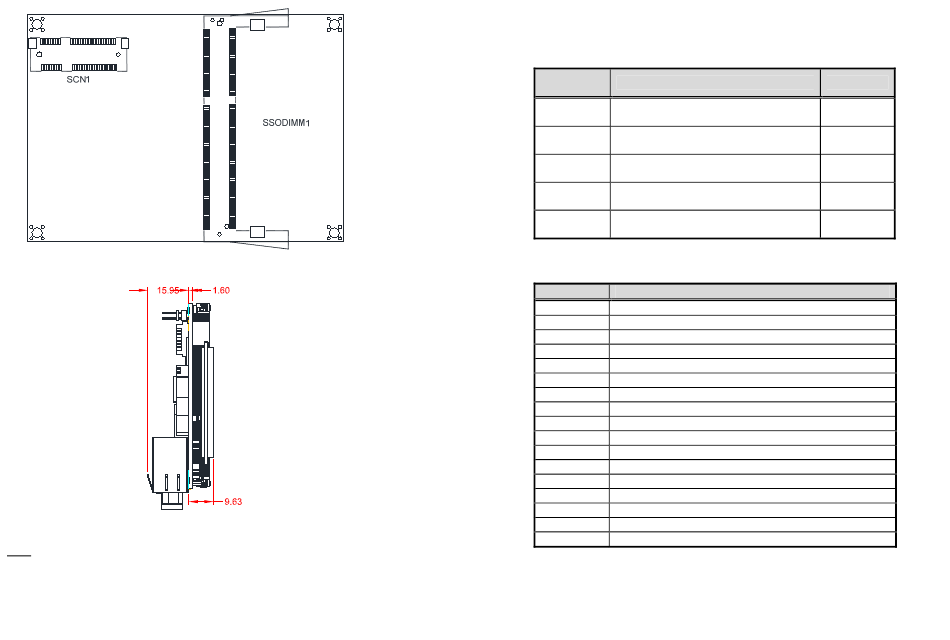

Bottom View
Side View
Note: Please refer to the PICO840/842 product information CD for the
complete user's manual, drivers and utilities. User's manual and related
documents are in Acrobat PDF format.
2 9418H840010E
©
Copyright 2015 Axiomtek Co., Ltd.
Version A2 September 2015
Printed in Taiwan
Jumper and Switch Settings
Before applying power to the PICO840/842, please make sure all of the
jumpers and switch are in factory default position.
Jumper and
Description
Switch
LVDS +12V Voltage Selection
JP1
Default: N/A
LVDS +3.3V/+5V Voltage Selection
JP2
Default: +3.3V
LVDS Brightness Control Mode Setting
JP4
Default: PWM Mode
Restore BIOS Optimal Defaults
JP5
Default: Normal Operation
Auto Power On
SW1
Default: Disable
Connectors
Connector Description
CN1 VGA Connector
CN2 HDMI Connector
CN3 DC Power Jack w/ Screw
CN4 SMBus Connector
CN6 LVDS Connector
CN7 Power LED Header
CN8 SATA Power Connector
CN9 External Speaker and Internal Buzzer Header
CN10 Inverter Connector
CN11 Fan Power Connector
CN12 40-pin Board to Board Connector
CN13 20-pin Board to Board Connector
LAN1 Ethernet Port
SATA1 SATA Connector
BAT1 CMOS Battery Connector
SCN1 Full-size PCI-Express Mini Card and mSATA Connector
SSODIMM1 DDR3L SO-DIMM Connector
9418H840010E
©
Copyright 2015 Axiomtek Co., Ltd.
Version A2 September 2015
Printed in Taiwan
Setting
1-2 Open
1-2 Close
1-2 Close
1-2 Close
1-2 Close
