EVAL-AD5696RSDZ User Guide UG-726

MEMORY MAP

All registers are fully accessible from the AD5696R Memory
Map tab, shown in Figure 5. To navigate to this tab, click the
Proceed to Memory Map button, shown in Figure 4. This tab
allows registers to be edited at bit level. The bits shaded in dark
gray are read-only bits and cannot be accessed from the ACE
software. All other bits are toggled.
Clicking the Apply Changes button transfers data to the device.
All changes made in the memory map tab correspond to the
block diagram. For example, if the internal register bit is enabled,
it displays as enabled on the block diagram. Any bits or registers

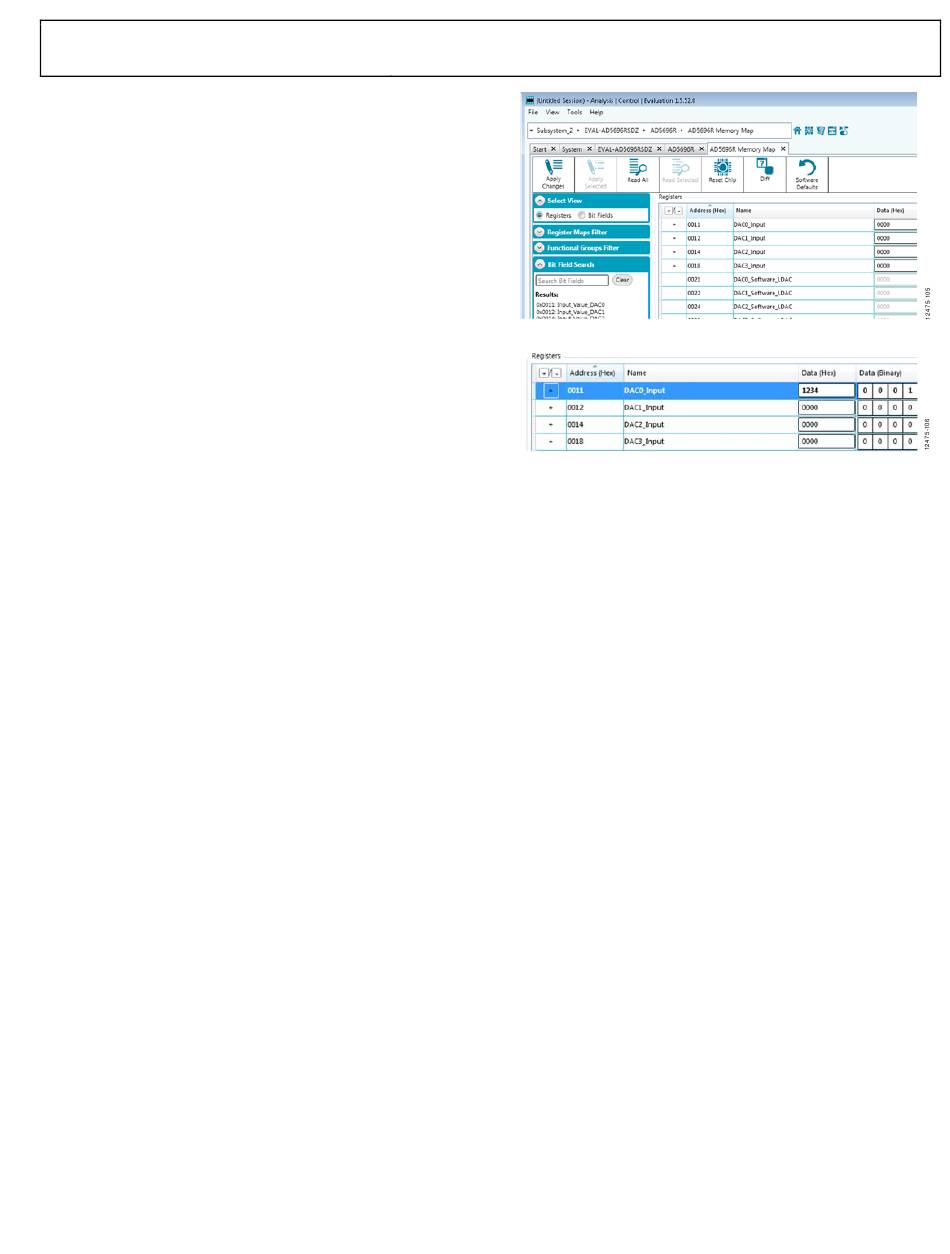

Figure 5. AD5696R Memory Map Tab
that are shown in bold in the memory map tab are modified
values that have not been transferred to the evaluation board
(see Figure 6). Click Apply Changes to transfer the data to the
evaluation board.
Figure 6. AD5696R Memory Map with Unapplied Changes in the
DAC0_Input Register
Rev. C | Page 5 of 13
