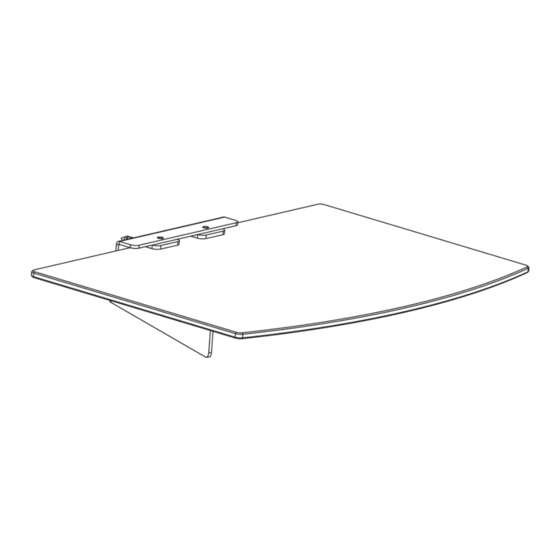

White Tempered Glass Floating Wall Shelf

Instruction Manual

SKU: MOUNT-SF011W

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

https://vivo-us.com/products/mount-sf011

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

help@vivo-us.com

www.vivo-us.com

309-278-5303

Chat live with an agent!

Table of Contents

Need help?

Do you have a question about the MOUNT-SF011W and is the answer not in the manual?

Page 1 White Tempered Glass Floating Wall Shelf Instruction Manual SKU: MOUNT-SF011W Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-sf011 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
Page 2 CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303.
Page 3 ASSEMBLY STEPS STEP 1 OPTION A: Wood Stud Wall Using the shelf bracket (A) as a guide, mark the mounting holes on the wall where a stud is located. With a 5/32” bit, drill approximately 2” into wall. Using bolts (W-A) and washers (W-C), mount the shelf bracket (A) onto wall.
Page 4 STEP 2 Insert plastic clips (C) into shelf bracket (A). STEP 3 Attach suction cups (E) to shelf bracket (A) as shown in diagram.
Page 5 STEP 4 Slide shelf (B) into clips (C). STEP 5 OPTION A: Tighten M5x8 bolts (D) into top of shelf bracket to secure shelf.
Page 6 STEP 5 (Continued) OPTION B: Tighten M5x8 bolts (D) into bottom of shelf bracket to secure shelf.
Page 7 STEP 6 Place desired objects on shelf.
