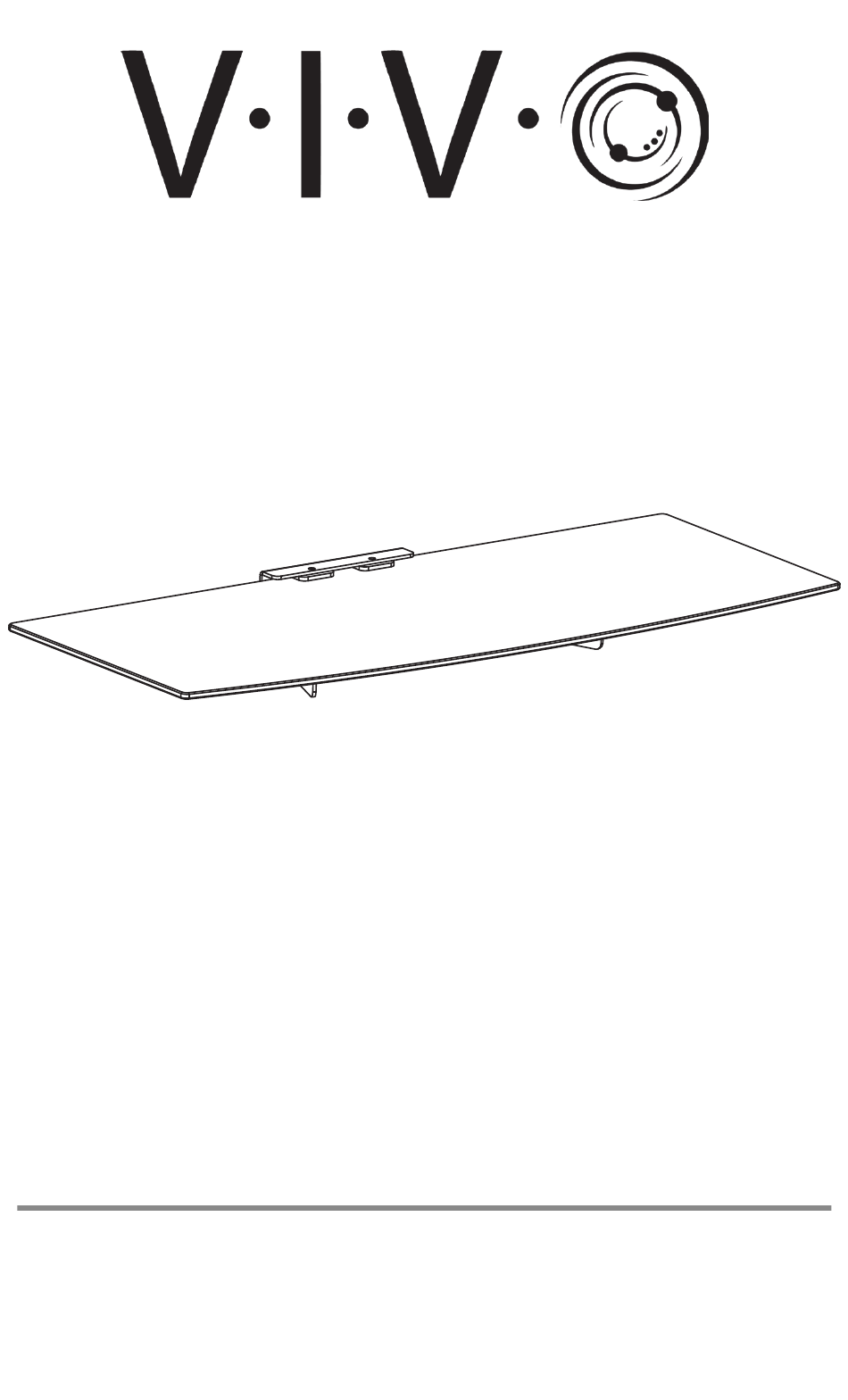

- Page 1 Extra Long Tempered Glass Floating Wall Shelf MOUNT-SF024 Assembly Manual...
- Page 2 Better Products for a Better Workspace Experience We are dedicated to creating high-end ergonomic solutions for the office with top of the industry support. Explore Endless Workspace Solutions www.vivo-us.com...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
- Page 4 Package Contents D (x2) A (x1) B (x1) C (x2) Suction Cup Shelf Clip Shelf Shelf Bracket Included Hardware & Tools S-A (x2) W-A (x3) W-B (x3) W-C (x3) W-D (x2) M5x8mm ST6.3x55mm Concrete Anchor M6 Washer ST3.5x50mm Screw Screw Screw W-E (x2) W-F (x2)
-
Page 5: Assembly Steps
Assembly Steps STEP 1 Option 1: Wood Stud Installation Use Wall Bracket (A) to mark drilling locations in all four holes using a pencil. Use of a stud finder and level is recommended. Pre-Drilling Instructions Drill the two center mounting holes into Drill the two side mounting holes through the stud using the illustration shown. - Page 6 Option 1 - Cont’d 1.1 Insert Drywall Anchors (W-E) into the two side drywall holes. 1.2 Using the center two holes, attach Wall Bracket (A) to the wall into the stud using ST6.3x55mm Screws (W-A), M6 Washers (W-C) and a Drill or Phillips screwdriver. 1.3 Using the side two holes, secure Wall Bracket to the drywall using ST3.5x50mm Screws (W-D), M5 Washers (W-F) and a Drill or Phillips screwdriver.
- Page 7 Option 2: Concrete Installation Use Wall Bracket (A) to mark drilling locations in the three locations shown using a pencil. Use of a level is recommended. Pre-Drilling Instructions Drill mounting holes using illustration shown Drill Bit: 3/8” (10mm) Hole Depth: 2.4”...
- Page 8 Option 2 - Cont’d Press Concrete Anchors (W-B) into the drilled holes. Secure Wall Bracket (A) to the wall using ST6.3x55mm Screws (W-A), M6 Washers (W-C) and a Drill or Phillips screwdriver. STEP 2 Insert Shelf Clips (C) onto the tabs on Wall Bracket (A).
- Page 9 STEP 3 Press Suction Cups (D) into the Wall Bracket (A) as shown. Insert Shelf (B) fully into the Shelf Clips (C), then press the Shelf into the Suction Cups (D).
- Page 10 STEP 4 Option 1: Screws on Top Note: Screw orientation is for appearance only Secure Shelf (B) to the Wall Bracket (A) using M5x8mm Screws (S-A) into the top of Wall Bracket. Tighten using a Phillips screwdriver. Option 2: Screws on the Bottom Note: Screw orientation is for appearance only Secure Shelf (B) to the Wall Bracket (A) using M5x8mm Screws (S-A) into the bottom of Wall Bracket.
- Page 11 Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...
- Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
