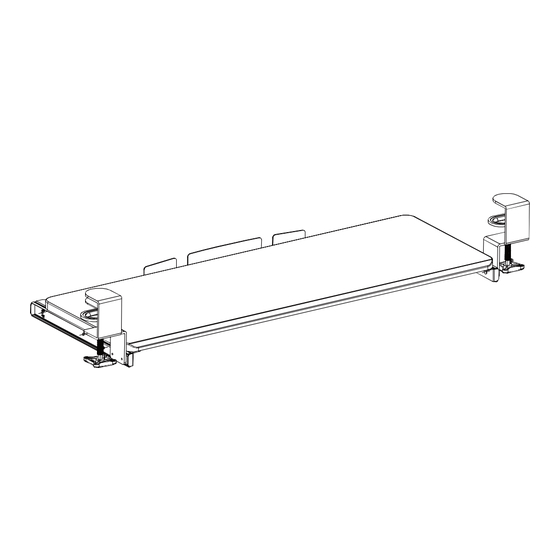

- Page 1 Clamp-on Keyboard Tray MOUNT-KB05A Series Assembly Manual Individual Product SKUs MOUNT-KB05A MOUNT-KB05D MOUNT-KB05GY MOUNT-KB05O...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
- Page 3 Package Contents D (x2) A (x1) B (x2) C (x2) Keyboard Tray Slider Bracket Clamp Included Hardware & Tools S-A (x6) S-B (x8) M4x7mm M5x12mm Screw Screw *Some hardware included may not be used Weight Capacity: Tools Needed: 11lbs Phillips (5kg) Screwdriver...
-
Page 4: Assembly Steps
Assembly Steps STEP 1 Attach Slider Brackets (B) to Keyboard Tray (A) using M5x12mm Screws (S-B), and tighten with a Phillips screwdriver. Note: With the Tray flipped upside-down, the Bracket with the “R” sticker will go on the left side of the assembly, and the Bracket with the “L” sticker will go on the right. The Slider Brackets (B) should protrude from the back of the Keyboard Tray. - Page 5 STEP 2 Choosing Assembly Method Tray features two assembly options based on the desired extension distance. Extended Standard Standard Extended Tray will extend 9”(23cm) from desktop Tray will extend 10”(25.4cm) from edge when extended. desktop edge when extended. *Ensure you have 12” under desk clearance *Tray will remain partially extended free of obstacles for tray to fully retract.
- Page 6 STEP 3 Loosen Clamps (C) and place Pads (D) on the underside of each Clamp. Place assembled Keyboard Mount on the edge of the desk and tighten Clamps to secure. Slide keyboard tray forward/back as desired. Tray locks at fully extended position and at fully stored position.
- Page 7 Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...
- Page 8 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
