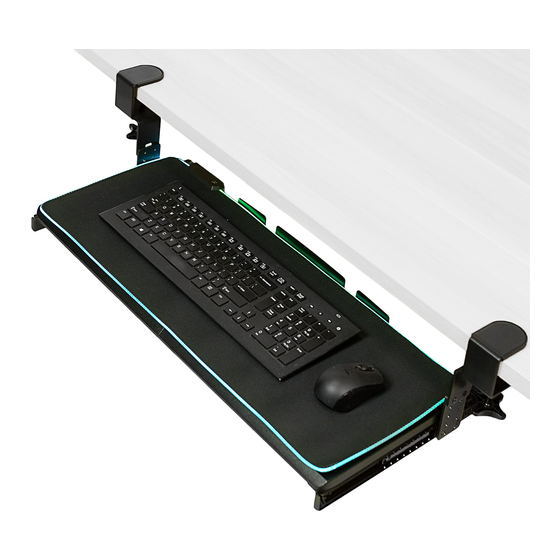

Clamp-on Height Adjustable Keyboard Tray
with RGB Pad
Instruction Manual
SKU: MOUNT-KB05GP/W
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-kb05gp
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOUNT-KB05GP/W and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo MOUNT-KB05GP/W

  • Page 1 Clamp-on Height Adjustable Keyboard Tray with RGB Pad Instruction Manual SKU: MOUNT-KB05GP/W Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-kb05gp GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3 ASSEMBLY STEPS STEP 1 Assemble the Keyboard Tray (A) using Connecting Plates (B) and M5x12 Flat Head Screws (S-C), and tighten with a Phillips screwdriver. STEP 2 Attach the (C) to the back of Keyboard Tray (A) using M5x12 Flat Head Screws (S-C). Keyboard Stop Tighten with a Phillips screwdriver.
  • Page 4 STEP 3 Attach Slider Brackets (E) to Support Brackets (D) using M4x7mm Flat Head Screws (S-A), making sure the countersunk holes on Support Brackets (D) are facing outward, as shown below. Tighten with a Phillips screwdriver. NOTE: Countersunk holes should be facing outward. STEP 4 Assemble Slider Brackets (E) to Keyboard Tray (A) using M5x12mm Screws (S-B), and tighten with a Phillips screwdriver.
  • Page 5 STEP 5 Assemble Clamps (F) to Support Brackets (D) at desired height using M5x8mm Flat Head Screws (S-D). Tighten with a Phillips screwdriver. STEP 6 Place Pads (G) on the underside of each Clamp (F). Place assembled keyboard mount on the edge of desktop and tighten Clamps (F).
  • Page 6 STEP 7 Place Mouse Pad (H) on Keyboard Tray (A). Plug Power Cable (I) into Mouse Pad (H) and plug the other end into a 5V USB power supply. To ensure the keyboard tray assembly is level, do not over-tighten Clamps (F). Slide Keyboard Tray (A) forward/back to desired position.
  • Page 7 HOW TO USE MOUSE PAD Mouse Pad (H) will automatically turn on when connected to a power source. Use button on the edge of the pad to adjust the light settings. LIGHT MODES: Short press to toggle BRIGHTNESS: Rapid double press to through light settings: toggle between full and half brightness TURN OFF: Long press to power off.
  • Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
