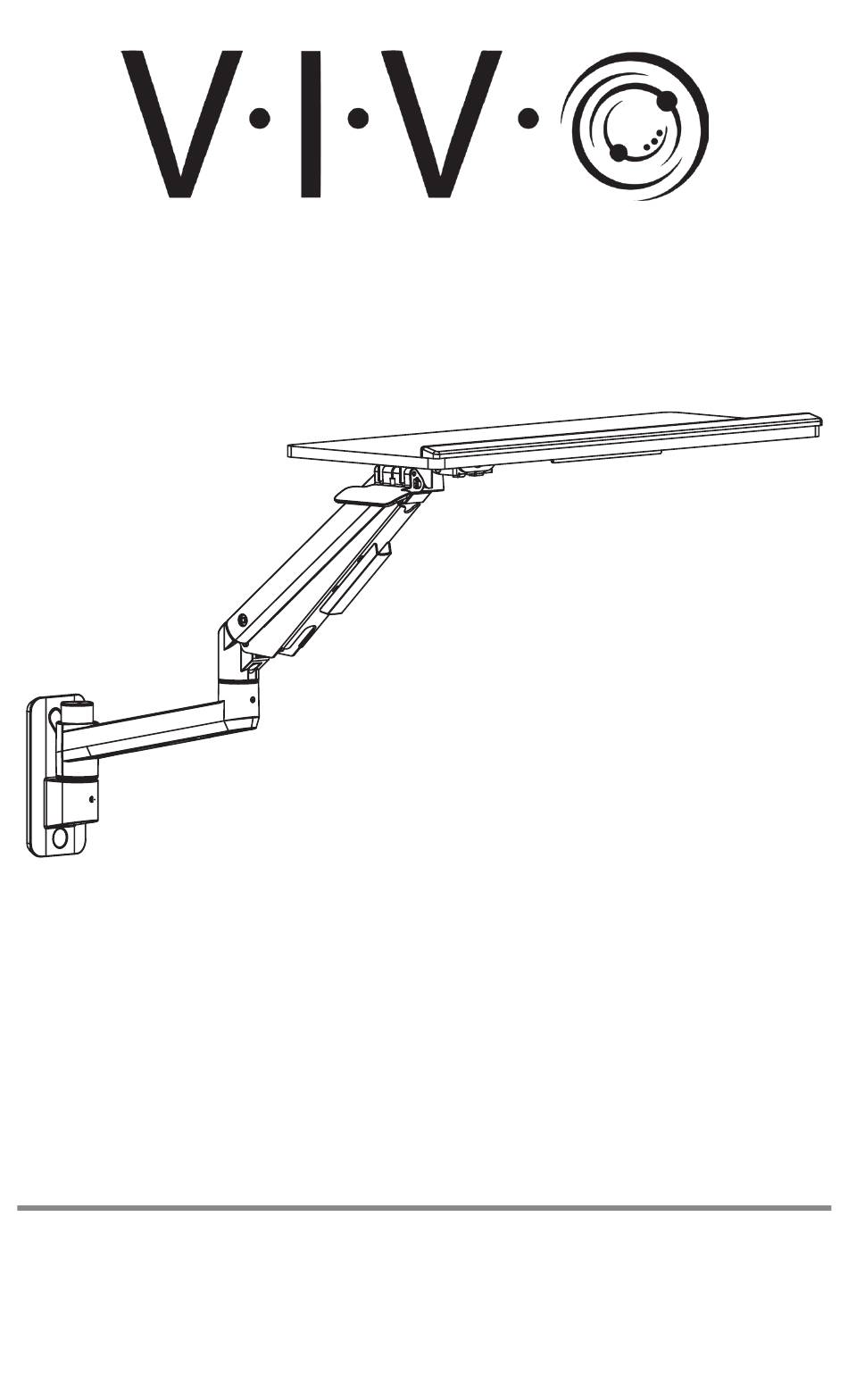

  • Page 1 Pneumatic Wall Mounted Keyboard Tray MOUNT-KB35C Assembly Manual...
  • Page 2 Better Products for a Better Workspace Experience We are dedicated to creating high-end ergonomic solutions for the office with top of the industry support. Explore Endless Workspace Solutions www.vivo-us.com...
  • Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
  • Page 4 Package Contents A (x1) B (x1) C (x1) Wall Bracket Lower Arm Adjustable Arm D (x1) E (x1) F (x1) Keyboard tray Wrist Pad Pole G (x1) H (x1) I (x1) Keyboard Bracket Oval Screw Cap Round Screw Cap...
  • Page 5 Included Hardware & Tools S-A (x1) S-B (x1) S-C (x10) W-A (x3) W-B (x3) Keyed Spacer M8x25mm M5x10mm ST6.3x55mm Concrete Screw Screw Screw Anchor W-C (x3) T-A (x1) T-B (x1) T-C (x1) M6 Washer 4mm Allen 6mm Allen Wrench Wrench Wrench Tools Needed: Phillips...

  • Page 6: Assembly Steps

    Assembly Steps STEP 1 - Option 1 - Wood Stud Mounting For Concrete/Brick Mounting, go to Page 8 Position Wall Bracket (A) against the wall where a stud is located, and mark the drilling points. Using a level and stud finder is recommended for accuracy. Drill holes at the marked locations, following the guidelines in the infographic below.
  • Page 7 Wood Stud Mounting - Cont’d Attach Wall Bracket (A) to the wall using ST6.3x55 Screws (W-A) and M6 Washers (W-C). Tighten with a 10mm socket wrench. Insert Caps (H) and (I) into their designated slots. Do NOT use included Anchors (W-B) for wood or drywall.
  • Page 8 - Option 2 - Concrete / Brick Wall Mounting Position Wall Bracket (A) on the wall and mark the drilling locations. Using a level is recommended for proper alignment. Drill holes at the marked locations, following the guidelines in the infographic below. Drill Bit: 3/8”...
  • Page 9 Concrete / Brick Wall Mounting - Cont’d Insert Concrete Anchors (W-B) into the drilled holes. Attach Wall Bracket (A) to the wall using ST6.3x55 Screws (W-A) and M6 Washers (W-C). Tighten securely with a 10mm socket wrench. Insert Caps (H) and (I) into their designated slots. Proceed to STEP 2 on Page 10...
  • Page 10 STEP 2 Slide Lower Arm (B) onto Pole (F) and tighten the Set Screw using the flathead end of the 4mm Allen Wrench (T-A). Set Screw Insert Pole (F) into Wall Bracket (A) and secure it by tightening the Wall Bracket Set Screw with the flathead end of the 4mm Allen Wrench.
  • Page 11 STEP 3 Secure Keyboard Bracket (G) to Keyboard Tray (D) using M5x10mm Screws (S-C). Tighten the screws with a Phillips screwdriver. The orientation of the Handle Threads determines which side the lever will be on. Left-Handed Lever Handle Threads on Right Side Handle Threads Right-Handed Lever...

  • Page 12: Installation

    STEP 4 Attach Adjustable Arm (C) to Keyboard Bracket (G) using the Keyed Spacer (S-A) and M8x25mm Screw (S-B). Tighten the screw securely with the 6mm Allen Wrench (T-B). Keyed Spacer Installation Install with the hexagonal side of the Keyed Spacer (S-A) facing downward. Attach the Handle of the Gas Spring to Keyboard Tray (D) using M5x10mm Screws (S-C) and tighten with a Phillips screwdriver.
  • Page 13 STEP 5 Place the assembled Adjustable Arm (C) onto Lower Arm (B) and secure it by tightening the Set Screw on Lower Arm with the flathead end of the 4mm Allen Wrench (T-A). Set Screw Set Screw...
  • Page 14 STEP 6 Remove the adhesive cover from the Wrist Pad (E) and attach it to the Keyboard Tray (D). STEP 7 Slide off the cable covers from Arms (B, C), manage the cables, and then slide the cable covers back on once finished.
  • Page 15 STEP 8 Positioning Arm Use the Paddle Lever to adjust the arm into a horizontal position. Paddle Lever If Arm Doesn’t Support Laptop: Adjust Tension Insert 6mm Allen Wrench (T-B) Into Adjustment Screw Insert the 6mm Allen Wrench (T-B) in to the adjustment screw on the back of the monitor arm.

  • Page 16: Height Adjustment

    Height Adjustment To adjust the height of the keyboard tray, pull the handle to lift the tray upwards. To lower it, apply downward pressure while holding the handle. Release the handle once the tray is in the desired position. ** WARNING: DO NOT LEAN ON TRAY** Applying excess pressure to the Tray may cause damage to the product, personal property, and/or could result in injury.

  • Page 17: Tilt Adjustment

    Tilt Adjustment To adjust the tilt of the tray, loosen the handle on the side of the Keyboard Bracket (G). Set the tray to the desired angle, then twist the handle to tighten and secure it in place. Not For Height Adjustments The Tilt Handle is located at the joint and controls forward/back tilt ONLY.
  • Page 18 Swivel Adjustment To adjust the swivel, use the 8mm Wrench (T-C) to loosen the nut below the keyboard tray. Set the tray to the desired angle, then tighten the nut with the 8mm Wrench.
  • Page 19 Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...
  • Page 20 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
