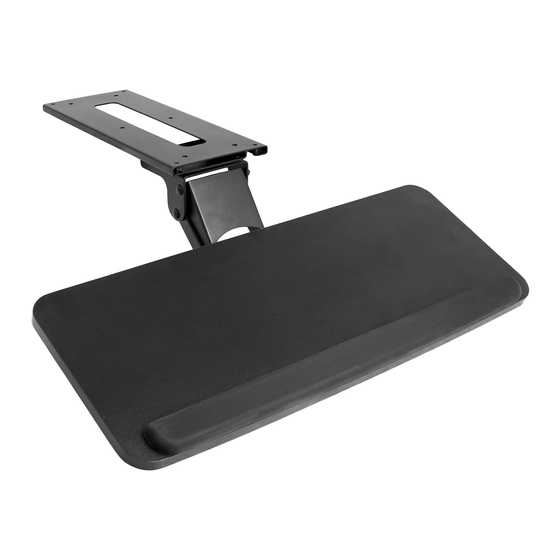

Under desk keyboard tray

Advertisement

Quick Links

Under Desk Keyboard Tray
Instruction Manual
SKU: MOUNT-KB03B/W
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-kb03b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOUNT-KB03B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivo MOUNT-KB03B

  • Page 1 Under Desk Keyboard Tray Instruction Manual SKU: MOUNT-KB03B/W Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-kb03b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
  • Page 3 ASSEMBLY STEPS STEP 1 Place Mount (A) upside down and loosen the lever on the side. Raise and slide Arm (A1) out from Track (A2).
  • Page 4 STEP 2 Keyboard tray can be mounted to your desktop in three different applications, depending on your setup or needs. Follow the instructions below that best fit your application and use a pencil to mark the holes. Remove Template and proceed to STEP 3. 1.
  • Page 5 STEP 2 - Continued 3. L SHAPED DESKS Designed for use with L shaped or corner desks. UNDERSIDE OF DESKTOP Align the Template (E) as shown with the 90 degree angle marker aligned with the corner of the desktop. STEP 3 Drill 3/8”...
  • Page 6 STEP 3 Assemble Tray (C) using Connecting Plate (D) and M5x12mm Screws (S-C) with a Phillips screwdriver. Connect Arm (A1) to the tray assembly using M5x16mm Screws (S-F) and a Phillips screwdriver. Slide Arm (A1) into Track (A2).
  • Page 7 STEP 4 Swivel Mount (A) sideways, then install M4x12mm Screws (S-D) and Bumpers (S-E) into the front corners of the Track using a Phillips screwdriver. Swivel the the assembled mounted forward, then remove paper backing from the Wrist Pad (B) and place on top of Tray (C) near the front edge.
  • Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
