Connecting The Service Lines - Labconco Protector XStream 9840400 User Manual

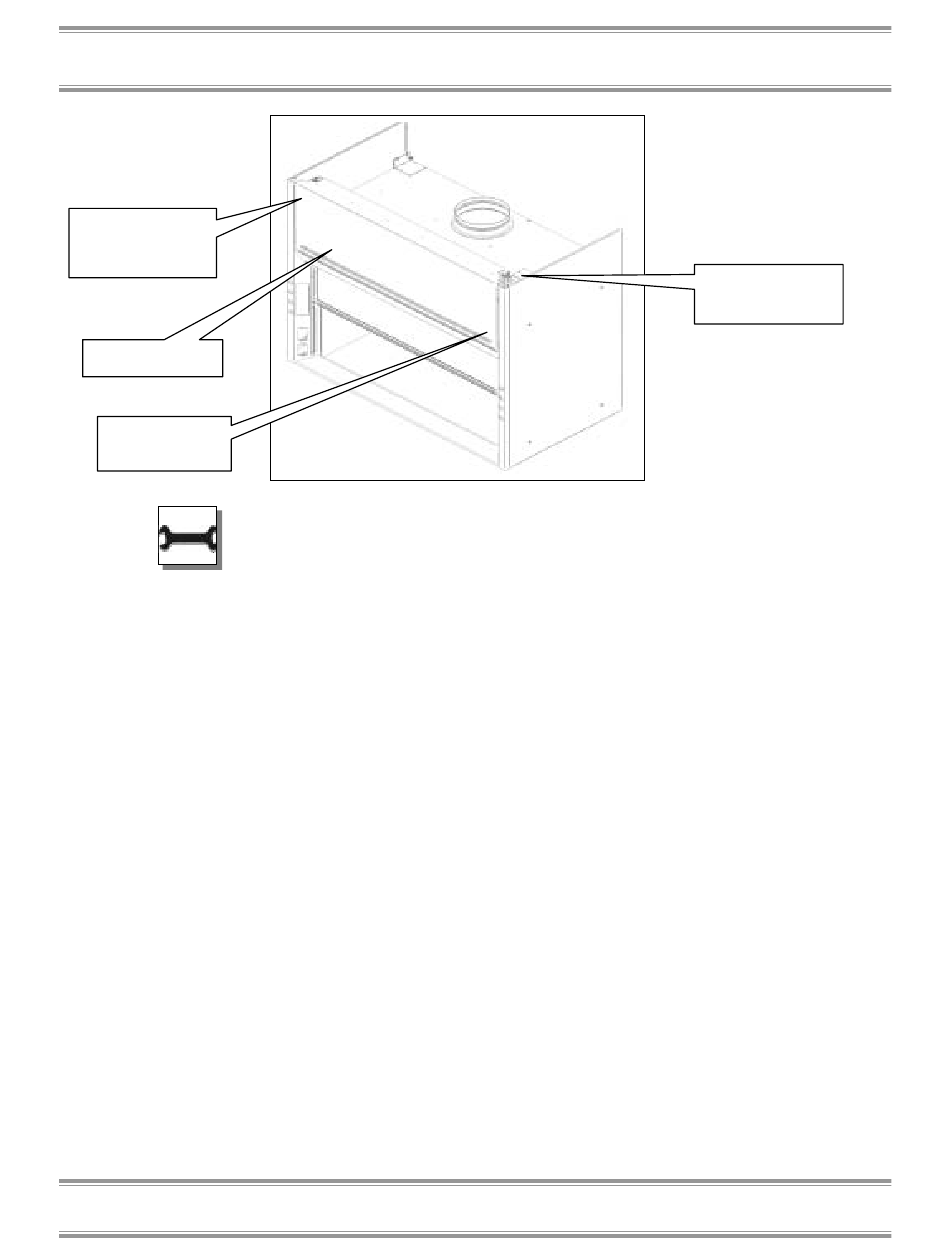

Primary I.D. Plate
Located behind
Front Panel
Front Panel
Secondary I.D.
Label
The fluorescent light has been mounted outside the top liner panel
and is sealed from vapors inside the hood structure. To change the
fluorescent light bulbs in your hood, you must first remove the
front panel from the hood. Next remove the screws holding down
the light reflector(s). Remove the light reflector(s) and slide out of
the way temporarily.
The fluorescent lights are now fully exposed and ready for service.
While the fixture is in this position, replace the defective bulbs,
and reassemble.
Connecting the Service Lines to
the Protector XStream Fume
Hood
The hoods with service fixtures have been plumbed from the valve
to the hose connector or gooseneck for your installation
convenience. A qualified installer shall provide the tubing.
Tubing can enter the hood from above, through the back, or
Product Service 1-800-522-7658
Figure 3-2
All wiring for the fume hood SHOULD be
performed by a licensed electrician and conform
to all local codes. In most cases, the hood will
require the use of shielded conduit to protect the
wiring into the hood. The grounding connection
shall not be made to the terminal box cover.
Chapter 3: Getting Started
Internal Junction
Box
15
