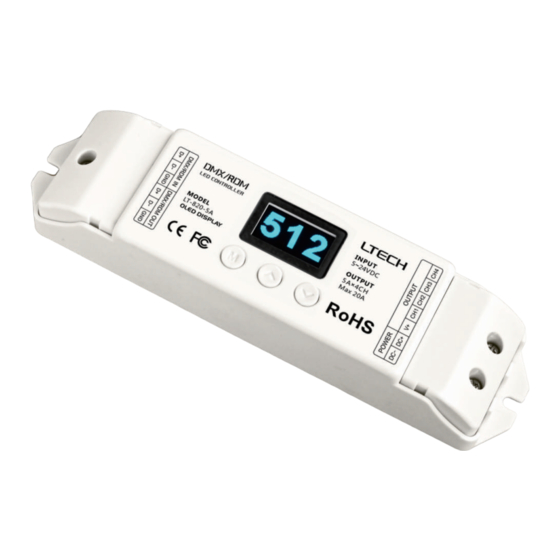

Ltech LT-820-5A Quick Start Manual

LT-820-5A
16bit DMX/RDM CV DECOD R
LT-820-5A is the world's first OLED display DMX decoder,
management protocol, supports DMX512 signal bi-directional communication, achieves remote
management of reading and writing DMX address (DMX master controller must recognize the
RDM protocol). Outstanding performance with following features:
OLED real-time display.
16bit/8bit input.
3 dimming curve optional.
Frame rate is as high as 850 FPS.
Built-in protection circult of resistance to lightning stroke and ESD static electricity.
1. Product Parameter:
LT-820-5A DMX/RDM CV Decoder
Input Signal : DMX512/RDM
Input Voltage : 5 24Vdc ~
Load Current :
5A x 4CH Max. 20A
Output Power : (0...25 120W) ~ x 4CH Max.
Dimming Range : 0~100%
LT-820-5A 16bit DMX/RDM CV Decoder
E
with the standard RDM remote device
-30℃~55℃
Working Temp.:
:
Dimensions L175×W44×H30mm
: L178×W48×H33mm
Package Size
: 175g
480W Weight (G.W.)
1

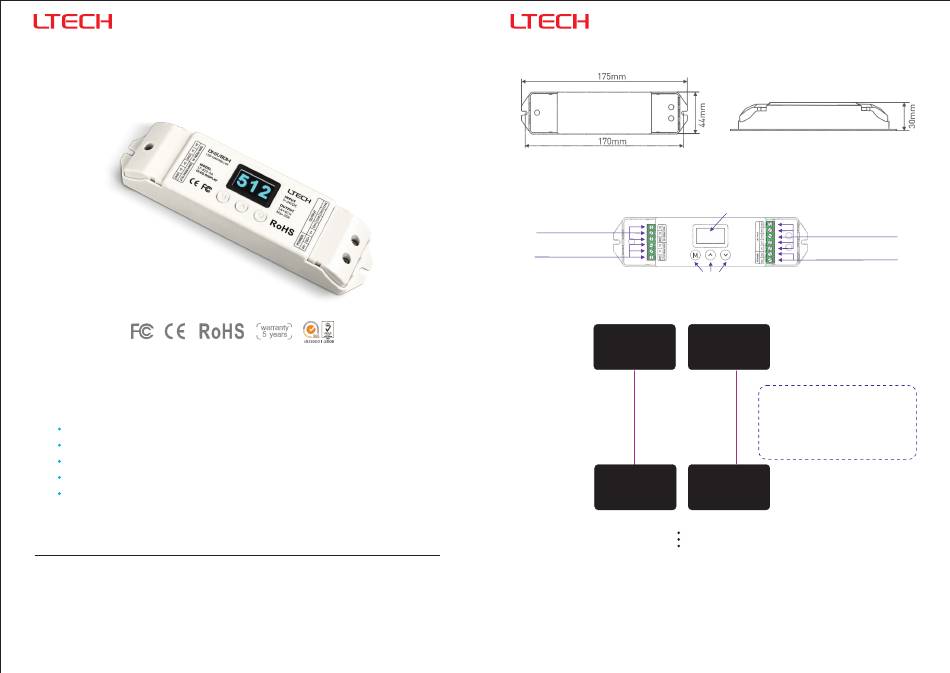

2. Product Size:
3. Main Component Description :
DMX512/RDM
Signal Input
DMX512/RDM
Signal Output
Function Keys
4. OLED Screen Interface Diagram:
DMX Address
Addr: 001
1: 65535 2: 65535
DMX Real-time Data
3: 65535 4: 65535
Resolution
Resolution:16bit
Figure 1-A
Main Display Interface
Press "M" key to enter
the setting interface
Addr: 001 16bit
Test
System Exit
Setting Interface
Figure 2-A
Please refer to the OLED display for detailed information.
LT-820-5A will run the test scenes only when you enter "self-testing" interface.
Screensaver enable time: undo for 2 min in the main display interface (Figure 1).
In the main display interface( Figure 1), Long press "M" "
[ estore the default parameters]： R
"∨" 3 keys simultaneously, LT-820-5A will restore the default parameters, and the screen display
"Device restore default" for 2 seconds, then it will return to the main display interface (Figure 1).
LT-820-5A 16bit DMX/RDM CV Decoder
OLED Screen
LED Lamps
Connection
5 24Vdc ~
Power Input
DMX Address
Addr: 001
CH1: 255 CH2: 255
DMX Real-time Data
CH3: 255 CH4: 255
Resolution Dimming Curve
RES:8bit Gamma
Figure 1-B
Press "M" key, switch entries.
Press "∧" or "∨" key, adjust parameters.
Exit: Return to the previous menu.
Long press "M" key, return to
the main display interface(Figure 1).
Addr: 001 8bit
Curve: Gamma
Test
System Exit
Figure 2-B
2
www.ltech-led.com
∧"
