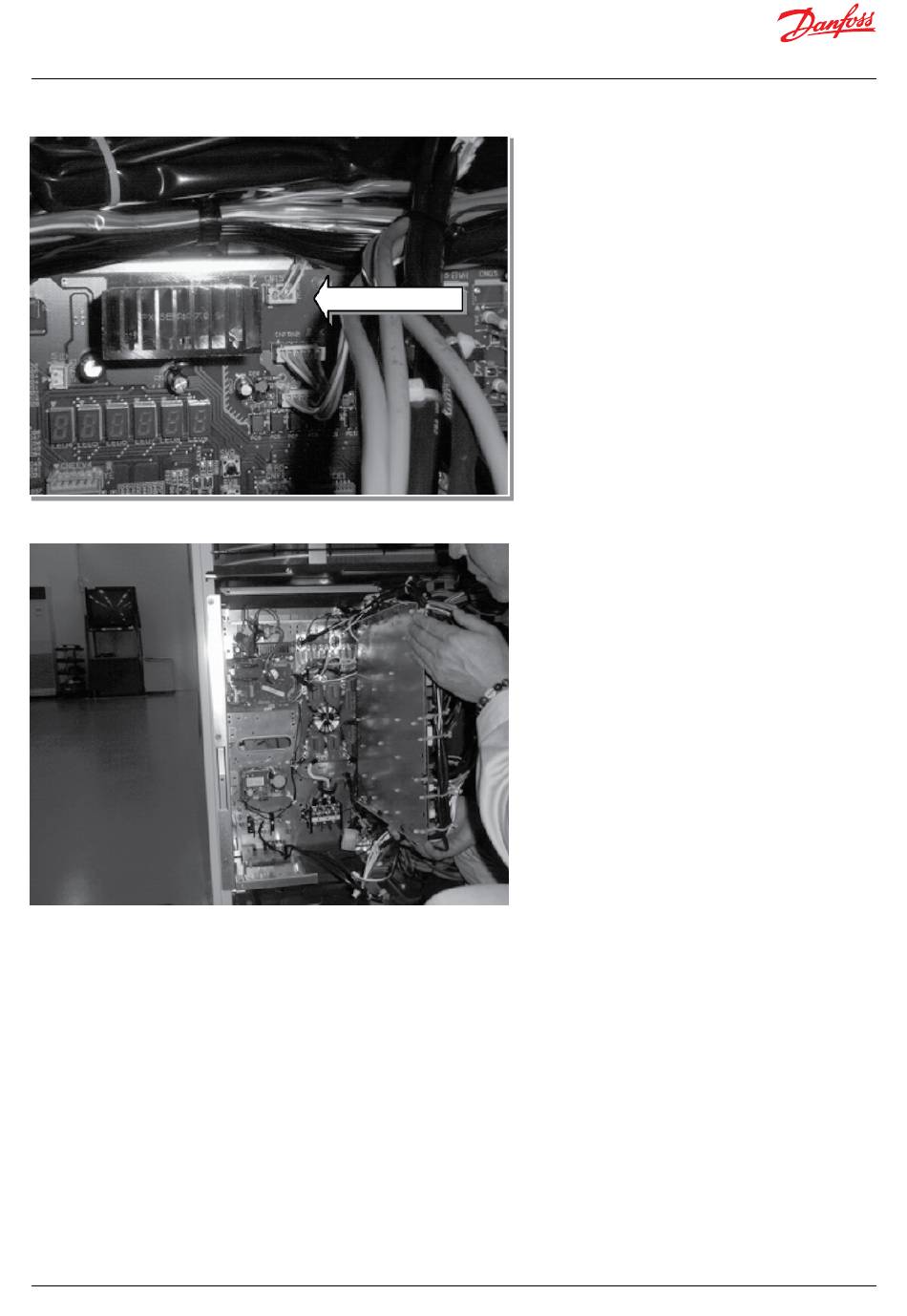

6. Disconnect the wire going to control PCB
7. Remove the first layer
7. Remove the first layer
© Danfoss | Climate Solutions | 2023.01 | LCA012A030
Disconnect CN13V connector (White), CN15V connector
(Yellow) and CN18V connector (Black) at the upper
center part of control PCB. (Check the detailed position
of connector with the wiring diagram or control PCB
drawing)
Following the process from 1. to 6. enables to remove
the first layer and to access power PCB.
BC408445719305en-000101 | 83
