User Guide | Optyma™ iCO2
Error code
Remote control: –
7-segment display:
1. Applicable model
All models
2. Error detection method
When E45 is displayed on the
7-segment LED display
3. Condition of error displayed
When the communication
between inverter PCB and
control PCB is not established
4. Presumable cause
• Disconnection of signal
wiring harness
• Control PCB anomaly
• Inverter PCB anomaly
• Anonaly of inrush current
suppression resistance
Note: If the same error does not reappear, continue to get data with Mente PC.
56 | BC408445719305en-000101
LED Green
Keep
Condensing
unit
E45-1
ashing

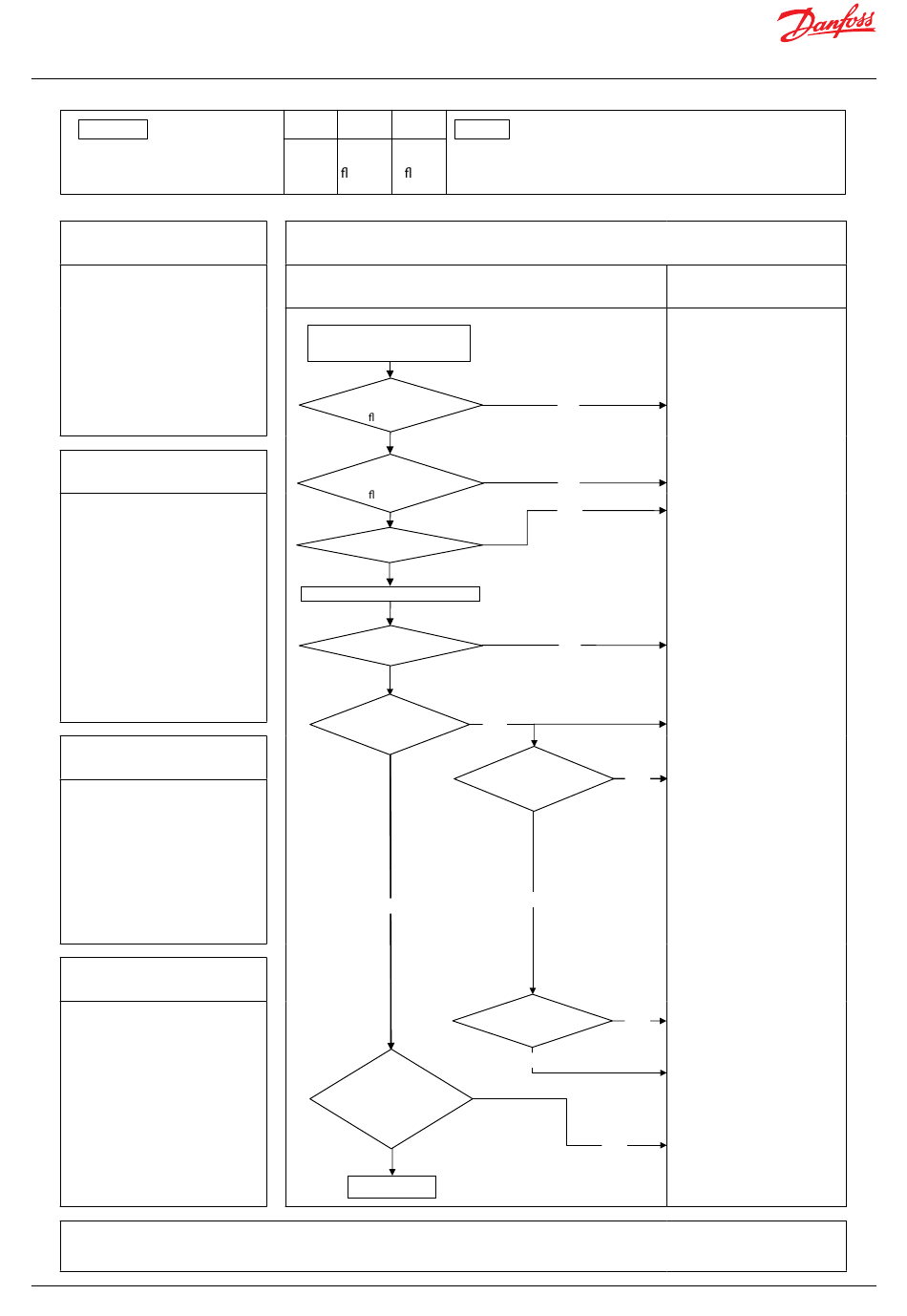

5.Troubleshooting
