User Guide | Optyma™ iCO2

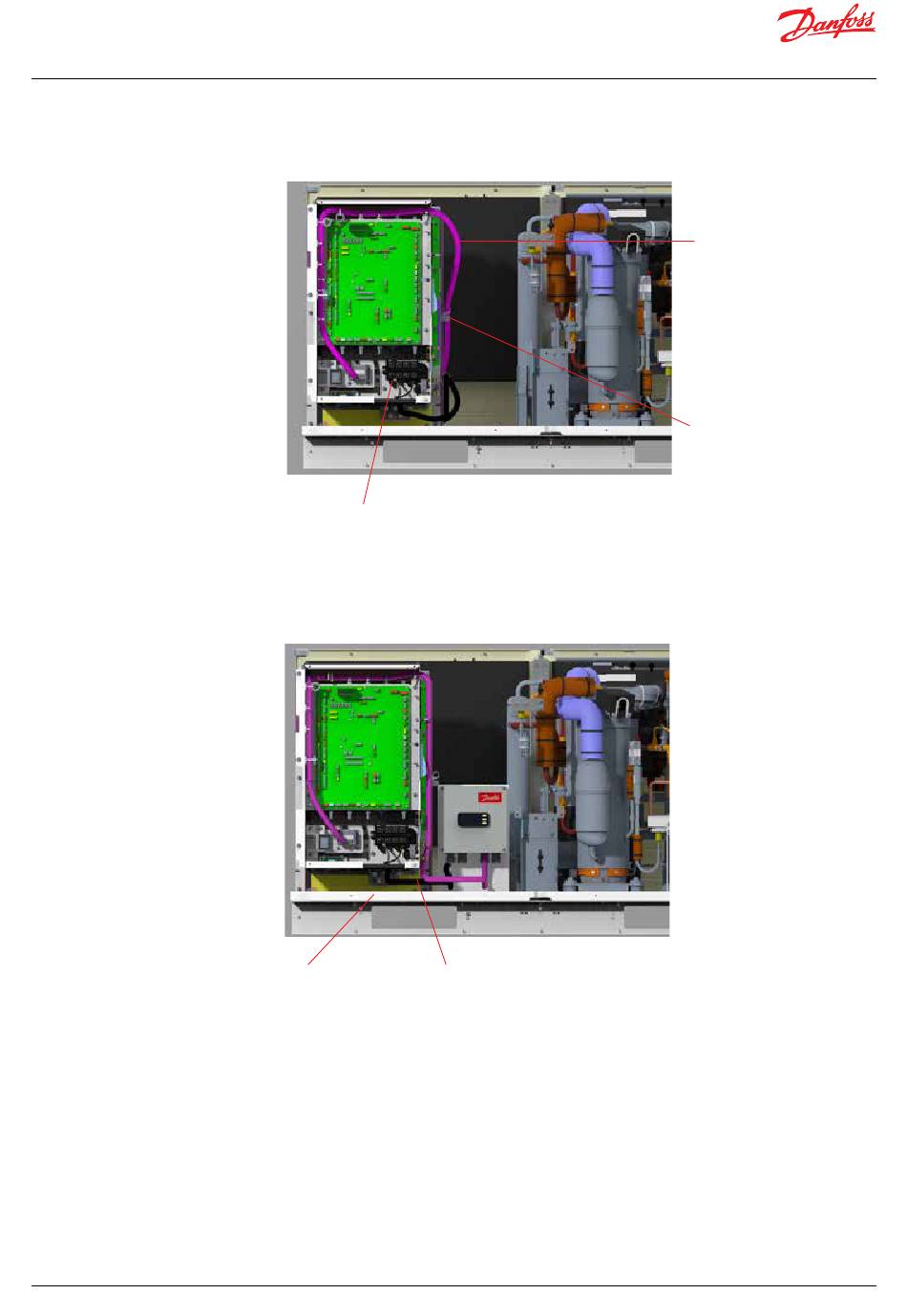

Module Controller wiring
Please wire the communication cable from the top of the control bord to the left side. The cable comes along with the module
controller.
Please pass the power cable through the insulation at the bottom of the control box.
The communication cable
and the power cable should
not touch the baseplate
Note:
The cables should be fixed with the cable ties and should not touch the baseplate to avoid water ingress.
18 | BC408445719305en-000101
Module controller wiring need to be
connected to the L1 and N -Terminals
Power cable
Communication cable
Cable tie
© Danfoss | Climate Solutions | 2023.01 | LCA012A030
