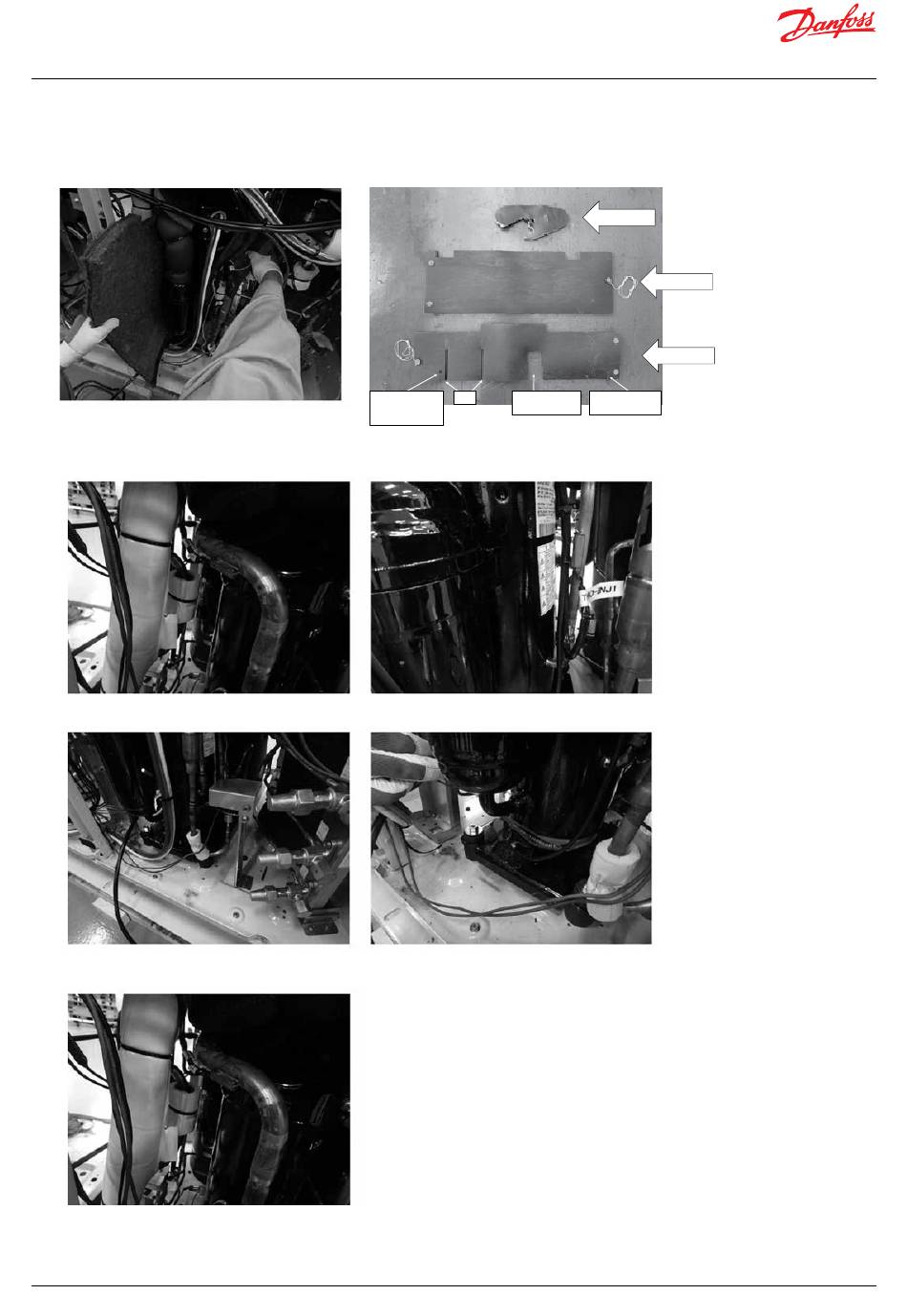

2) Remove insulation jackets
Taking off / pulling out from the left-hand side with following orders;
Lower jacket → Upper jacket → Top cover
3) Remove temperature sensors (four places) and crankcase heater
1. Tho-S1(Suction pipe temperature sensor)
3. Tho-C1(Under-dome temperature sensor)
5. Tho-D1(Discharge pipe temperature sensor)
74 | BC408445719305en-000101
Under-dome
Oil level switch
Pipe
(OLS1-2)
temperature
sensor (Tho-C1)
2. Tho-INJ1(Injection inlet temperature sensor)
4. Crankcase heater
Top cover
Upper jacket
Lower jacket
Crankcase heater
(CH1)
