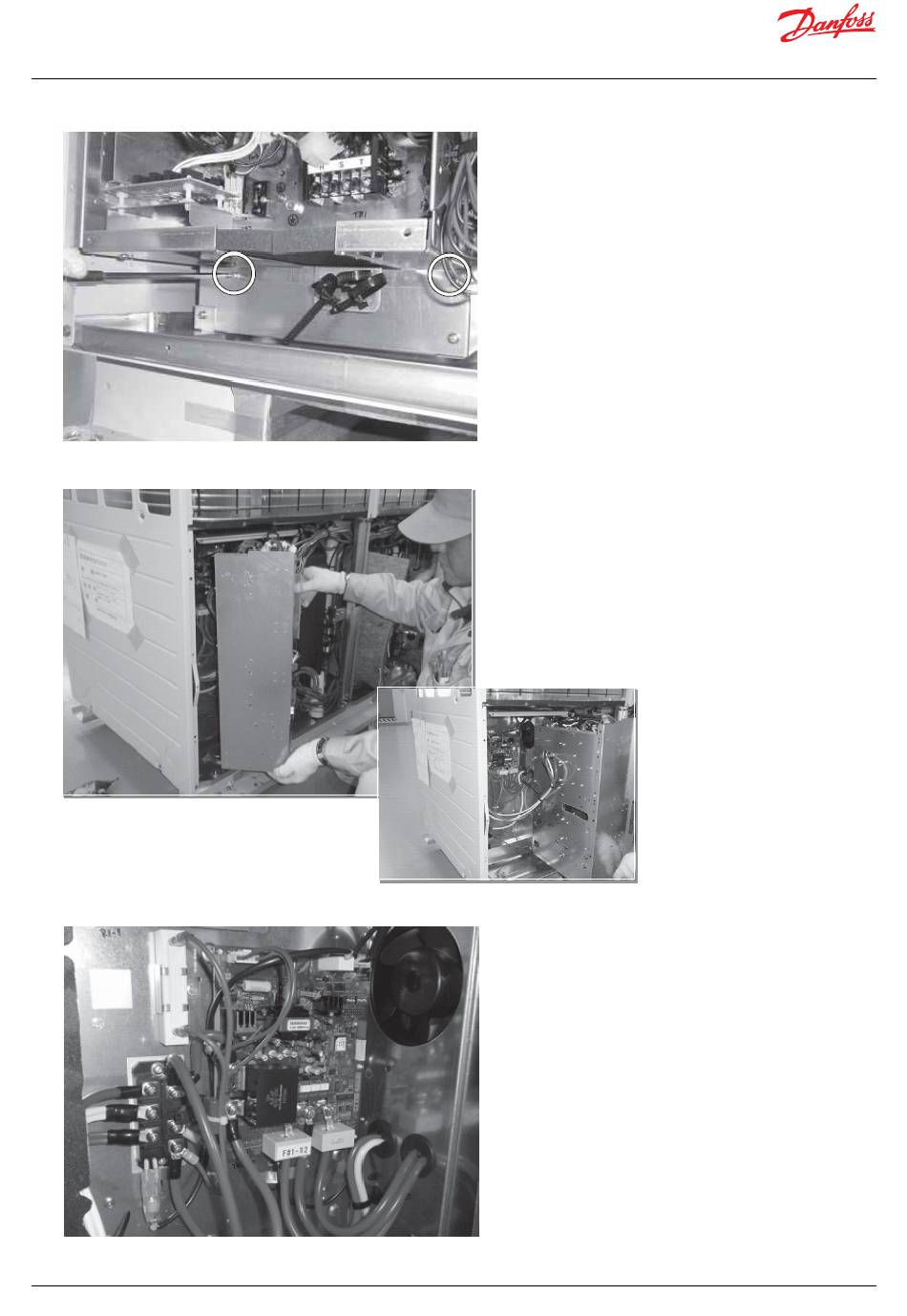

2. At the bottom of control box
3. Open the mounting board of first and second layer
2) Inverter PCB
80 | BC408445719305en-000101
There are 2 screws at the bottom of the control box.
This mounting board supported at right edge as
supporting point can be opened from left side.
Following the process 1. to 3. enables easy access to
the inverter PCB without disconnecting wires.
