INSTALLATION INSTRUCTIONS
Fitzgerald
®

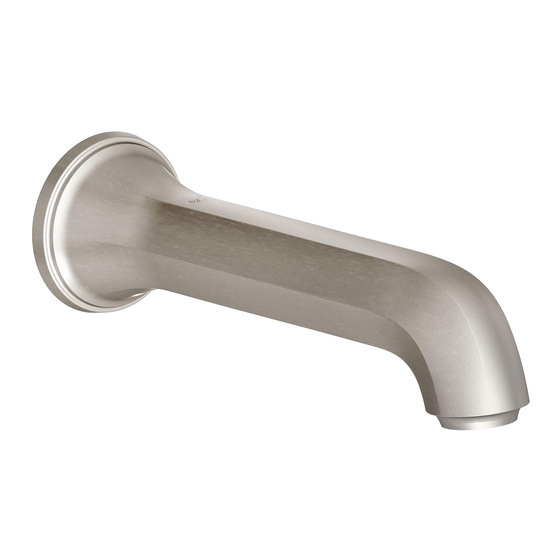

Wall Tub Spout
Model D35160760
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing,
supply stores. It is essential that the tools and materials be on hand before work is begun.
Hex Wrench
(Supplied)
ROUGHING-IN DIMENSIONS:
• For reference
1-1/4"
(31 mm)
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018
Plumbers' Putty or Caulking
7-7/16"
(189 mm)
8"
(204 mm)
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
Phillips Screwdriver
FINISHED
WALL
1-1/2" (38 mm)
SPOUT
ADAPTER
2-5/8" D.
(66 mm)
2"
(51 mm)
- 1 -
Flat Blade Screwdriver
1/2" TO 3/4" THREAD
ENGAGEMENT
1/2" or 3/4" NPT
(13 mm or 19 mm)
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965922 (6/18)
