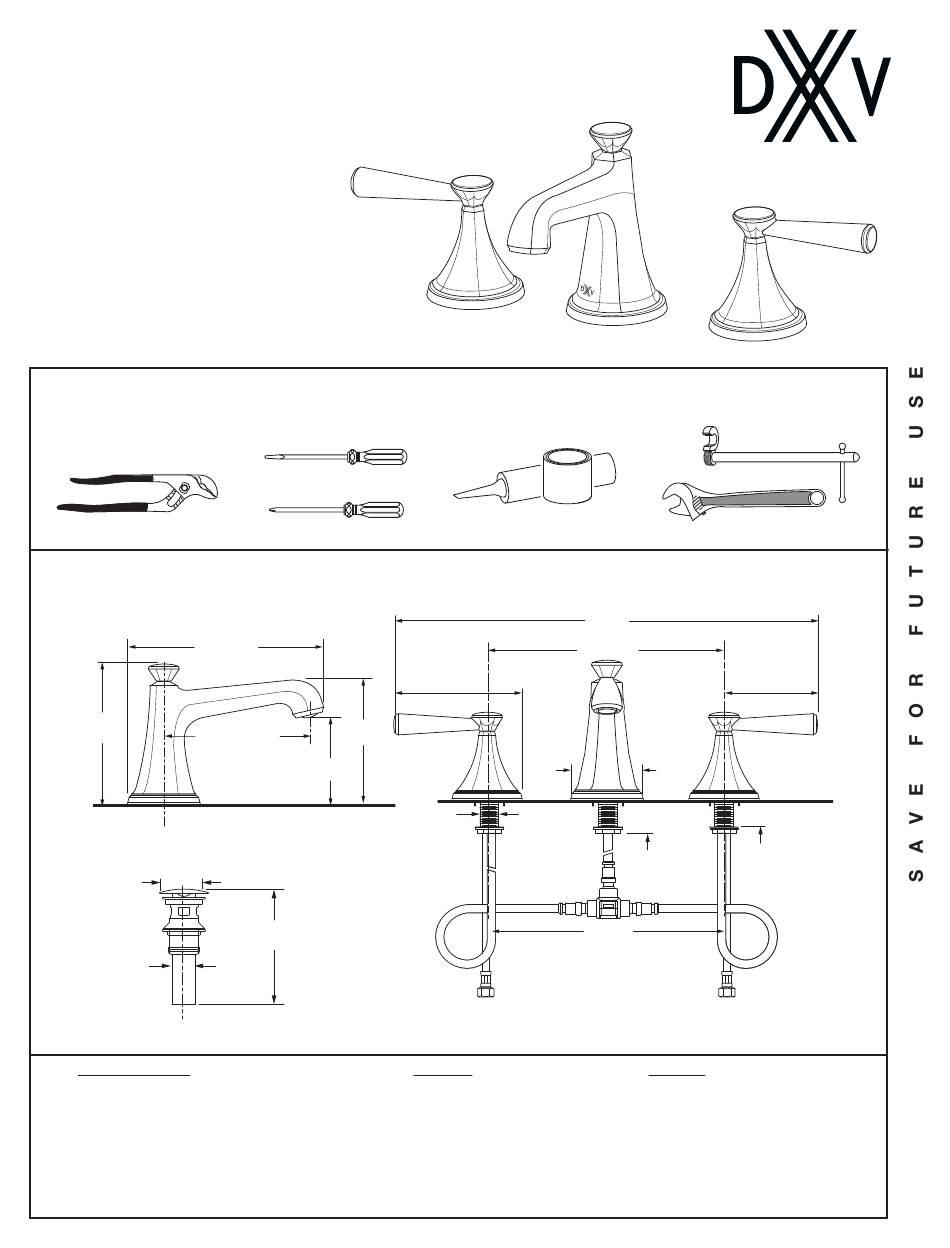

INSTALLATION INSTRUCTIONS
®

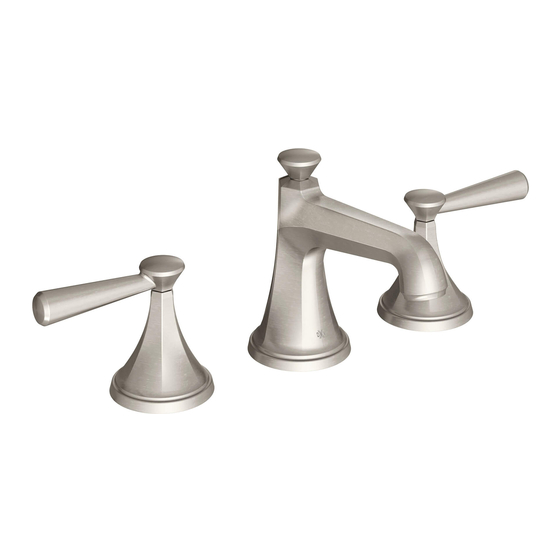

Fitzgerald
Widespread
Lavatory Faucet
Model D35160802
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Channel Locks
ROUGHING-IN DIMENSIONS:
• For reference
7" (178 mm)
5"
(127 mm)
5-3/16" (132 mm)
2-3/4"
(69 mm)
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018
Flat Blade Screwdriver
Phillips Screwdriver
4-3/8"
(112 mm)
3-1/16"
(78 mm)
8-5/8"
(220 mm)
1-1/4" O.D.
(32 mm)
Plumbers' Putty or Caulking
4-5/8"
(118 mm)
1-1/16" DIA.
(29 mm)
FLEXIBLE
HOSE
(152 to 305 mm)
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
- 1 -
Basin Wrench
Adjustable Wrench
14-3/4"
(374 mm)
8" (203 mm)
3-3/8"
(85 mm)
ø2-5/8" .
(67 mm)
1-1/4" MAX.
1-1/2" MAX.
(32 mm)
(38 mm)
FLEXIBLE
HOSE
6" to 12"
FLEXIBLE
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965911 (8/18)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DXV Fitzgerald D35160802
Summary of Contents for DXV Fitzgerald D35160802
- Page 1 Fitzgerald Widespread Lavatory Faucet Model D35160802 Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing supply stores.
- Page 2 Turn off hot and cold water INSTALL SPOUT CAUTION supplies before begining. Fig. A. • Insert SHANK (1) and HOSE (2) through center hole. Fig. A. • Thread LOCKNUT (3) onto SHANK (1) from underside of sink or mounting surface. •...
- Page 3 INSTALL DRAIN FROM BELOW FIXTURE REAR OF SINK DRAIN OUTLET • Install DRAIN (1) by dropping it from the top of the sink. • Thread TAIL PIECE NUT (1) clockwise onto • From under side of SINK install GASKET (2) and DRAIN BODY (2).
- Page 4 ® Fitzgerald Widespread Lavatory Faucets MODEL NUMBER D35160802 M970531-YYY0A HANDLE KIT M970532-0070A DECK ADAPTER M964055-0070A HANDLE ADAPTER KIT M964005-0070A CARTIRIDGE KIT M923840-0070A AERATOR KIT (1.2 GPM) A911897-0070A SEAL M953456-YYY0A DRAIN ASSEMBLY M911116-0070A SPACER M906617-0070A VALVE MOUNTING NUT M964224-0070A MOUNTING KIT M904516-0070A T-CONNECTOR Replace the “YYY”...
