KI Concerto Disassembly Instructions

Auditorium seating
Hide thumbs Also See for Concerto:

Advertisement

Disassembly Instructions
Concerto Auditorium Seating

Material Type:

A . Steel
A
B
Required
Tools
Gloves
KI · 1330 Bellevue Street · P.O. Box 8100 · Green Bay, WI 54308-8100 · 1-800-424-2432 · www.ki.com
B. Plastic
B
B
A
A
Philips Screwdriver
Safety Glasses
All fasteners not explicitly tagged or
shown are Material Type A: Steel
Torx Screwdriver
Flat Screwdriver

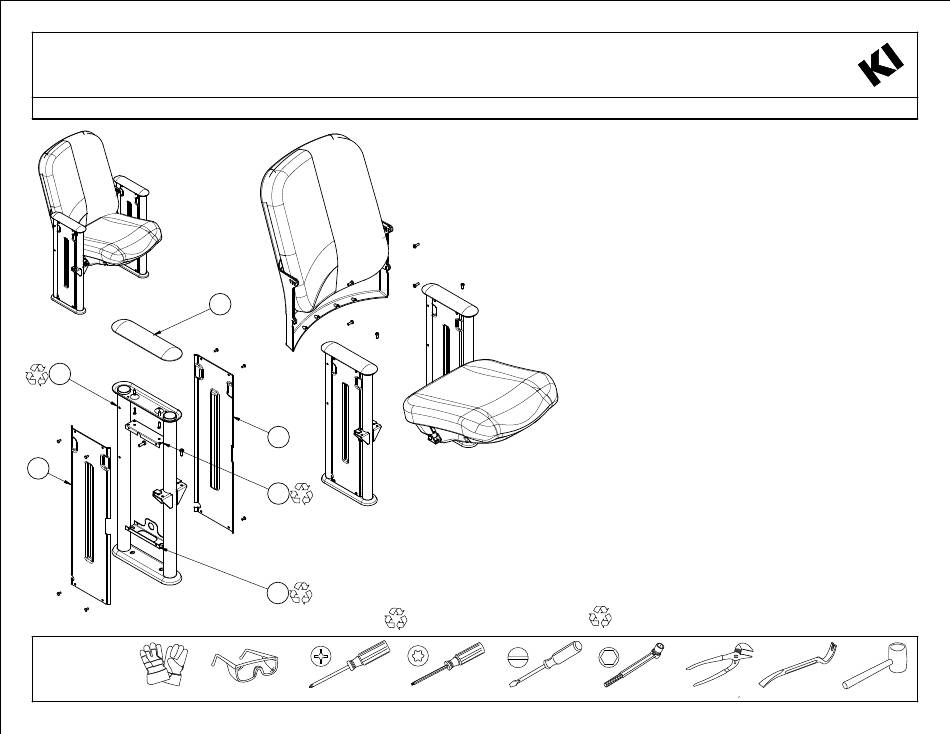

Procedure:

1. Remove the screws holding the seat to the seat support column
and remove the seat assembly.
2. Remove the screws holding the backrest onto the back supports
and remove the backrest assembly.
3. Remove the screws holding the side panels to the seat support
and remove the side panels. Remove the screws holding the up-
per side panel retaining bracket to the column and remove the
bracket.
4. Remove the screws holding the arm cap onto the top of the seat
support column and remove the arm cap.
5. Remove the nuts holding the column onto the floor and remove
the column and lower side panel bracket.
(continued next page)

General Notes:

1. Disassembly time: 15-30 minutes
2. This procedure assumes basic familiarity with hand tools and
furniture terminology: no specialized training is required
3. All materials removed and disassembled shall be sorted and
segregated with like materials and disposed of or recycled
according to recycling availability or waste acceptance
4. For items to be recycled, refer to KI's End of Life Recycling
Matrix and KI's End of Life Recovery Options Matrix, available
at www.ki.com
Hex Socket Wrench
Channel Lock Pliers
Pry Bar
Rubber Mallet
P0033-0037
Rev. 0
Page 1 of 2
