Assembly Instructions
CaféWay
™
Model ECRCP
November 2014
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Tables
Storage Latch Installation
1. Remove table from shipping
container and cut off any cable
ties that are holding the table
and storage latch in the shipping
position.

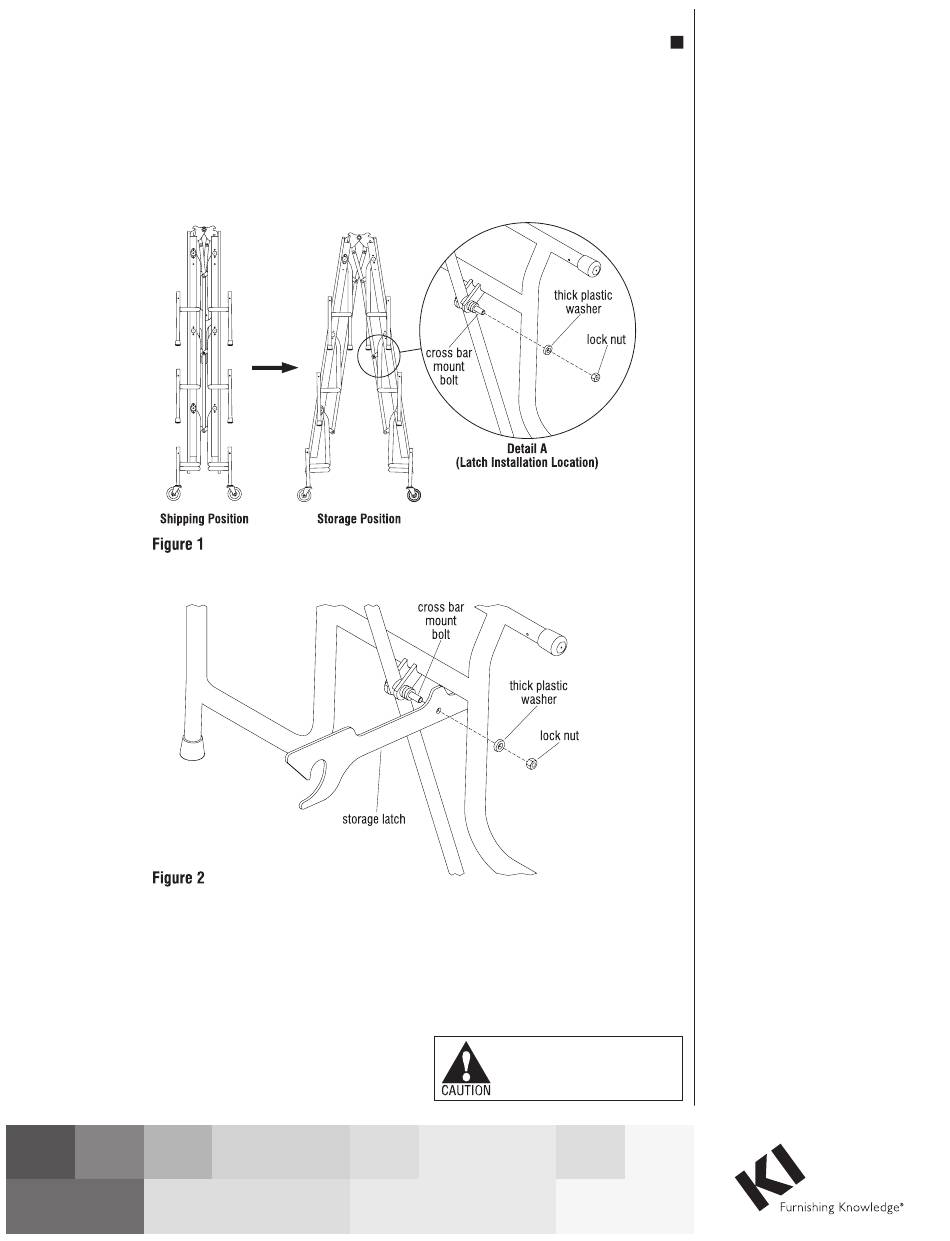

2. Next, spread the table apart from
the shipping position to the storage
position (Figure 1).
3. Locate the center cross bar mount
and unscrew the lock nut from the
bolt (Detail A). Then, remove the
thick plastic washer from the bolt
(Detail A).
4. Install the latch onto the center
cross bar mount bolt. Replace the
washer on the bolt and cover the
bolt with the locknut (Figure 2).
5. Make sure the latch freely moves
up and down. Then latch the table
together to lock it into the storage
position.
