Assembly Instructions
CaféWay
Models ECELP , ECOCP & ECRDP
July 2018
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Tables
Note: This instruction contains
installation steps for stool seats
(Pages 1-2), bench seats (Page 3),
and middle bench seats (Page 4).

Stool Seat Installation

1. Stools that will be installed near the
pivot point of the table are required
to use all eight mounting locations.
Stools located away from the pivot
location are only required to use
the four outer corner mounting

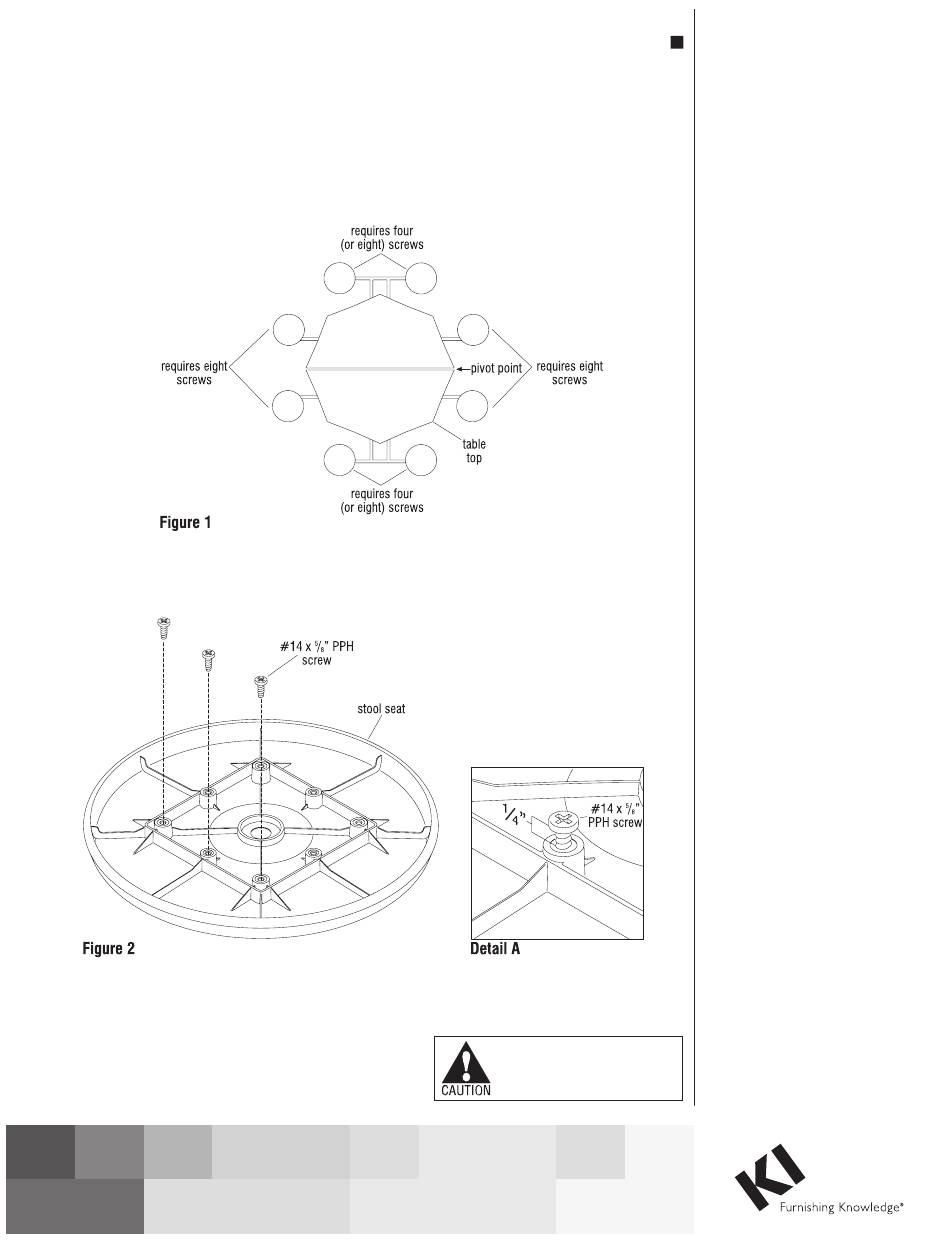

locations (Figure 1).
Note: Enough screws are supplied
to use all eight mounting locations
on each stool if desired.
2. Remove stools and #14 x
attachment screws from the
shipping box. Place stool seats
upside down on a flat protective
surface.
3. Align three screws, two in each
adjoining corner, and one in
between the corners as illustrated
(Figure 2).
4. Install the three #14 x
but do not drive the screws in all
the way. Leave a
the bottom of the screw head and
stool. This will allow the stool plate
adapter to slide in between the
screw head and seat (Detail A).
/
"
5
8
/
" screws,
5
8
/
" gap between
1
4
