TMCC information Newly added TMCC information
Transport stream 1
Transport stream 2

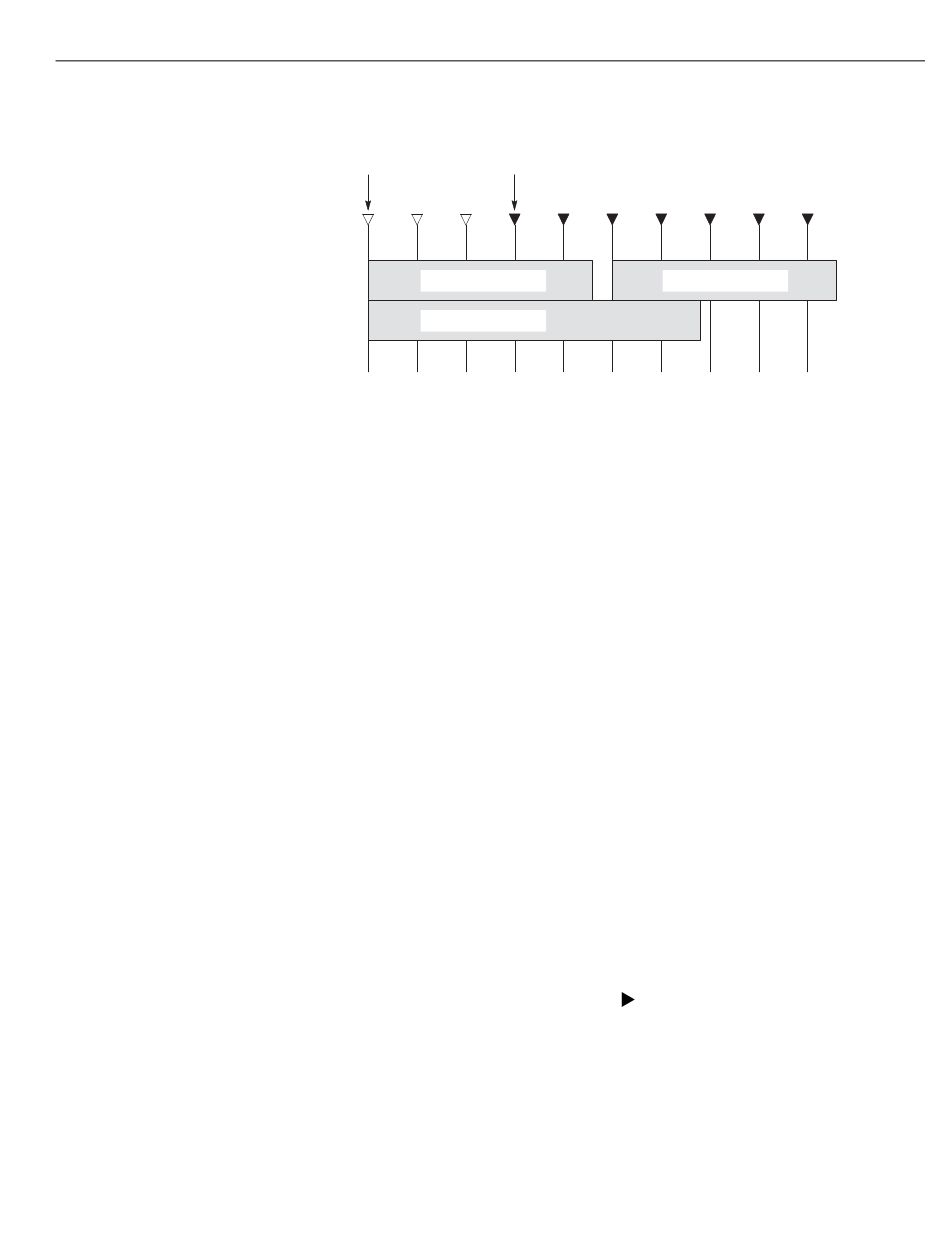

This illustration shows the placement of the new TMCC information and the
transport stream 3 when they are multiplexed after the transport stream 1. The new
TMCC information is inserted two frames before the location in which the new
transport stream is inserted.
16. In the Add TMCC dialog box, select a transport stream number, and then click
the OK button to open the Edit TMCC Information dialog box for editing the
TMCC information (See Figure B-10).
17. After you change the parameters, click the OK button to confirm the changes
and close the dialog box.
This opens a new editing window with a TMCC icon displayed. In this case,
note the increase of the value indicating change instruction at the right side of
the TMCC icon. In addition, the First and Previous buttons on the toolbar
change their color to green indicating that a TMCC exists before this TMCC.
18. Repeat steps 3 through 5 to select a transport stream file.
19. Repeat steps 6 through 8 to multiplex the transport stream file.
20. If you want to further multiplex a transport stream(s) of M-TMCC structure
having different TMCC information, repeat steps 14 through 19.
Creating a Transport Stream of M-TMCC Structure.
21. Select ReMux > Execute or click the
dialog box.
22. In the dialog box, specify a file name, and then click the Save button.
Appendix B: Using the ReMux Application
Transport stream 3
Frame
(Execute) button to open the Save As
