Page 1 User Manual RTX130A QAM & VSB RF Signal Generator 071-1861-00 Revision A This document supports firmware version 8.00 and above. www.tektronix.com...
Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes that in all previously published material.
Page 3 Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.
Page 5: Table Of Contents
Performing Continuous Recording ........3-57 RTX130A QAM & VSB RF Signal Generator User Manual...
Page 6 Connecting the RTX130A to your PC(s) ........
Page 7 Reinstalling the RTX130A Application ........
Page 8 Figure 2-1: RTX130A front panel ....... . 2-2 Figure 2-2: RTX130A rear panel ....... . . 2-4 Figure 2-3: Elements of the Play screen .
Page 9 Figure B-14: DEMUX dialog box ....... B-21 RTX130A QAM & VSB RF Signal Generator User Manual...
Page 10 Figure D-2: Defragmentation Complete dialog box ....Figure E-1: Edit DWORD Value dialog box ..... . RTX130A QAM & VSB RF Signal Generator User Manual...
Page 11 Table B-1: Element of the ReMux window ......B-3 RTX130A QAM & VSB RF Signal Generator User Manual...
Page 12 Table C-5: Stream menu commands ......viii RTX130A QAM & VSB RF Signal Generator User Manual...
Page 13: General Safety Summary
Do Not Operate in an Explosive Atmosphere. Keep Product Surfaces Clean and Dry. Provide Proper Ventilation. Refer to the manual’s installation instructions for details on installing the product so it has proper ventilation. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 14 WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. Symbols on the Product. The following symbols may appear on the product: CAUTION Protective Ground Refer to Manual (Earth) Terminal RTX130A QAM & VSB RF Signal Generator User Manual...
Page 15 This product has been classified as Monitoring and Control equipment, and is Restriction of Hazardous outside the scope of the 2002/95/EC RoHS Directive. This product is known to Substances contain lead, cadmium, mercury, and hexavalent chromium. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 16 Environmental Considerations RTX130A QAM & VSB RF Signal Generator User Manual...
Page 17: Preface
Preface The user manual for the RTX130A QAM & VSB RF Signal Generator contains the following sections: Getting Started briefly describes the RTX130A QAM & VSB RF Signal Generator and provides installation instructions, option and accessory lists, repacking instructions, and power on and off instructions.
Page 18: Related Manual
Related Manual The following related documentation for the instrument is available: The RTX130A QAM & VSB RF Signal Generator Service Manual (Tektronix part number 071-1863-XX) describes how to maintain and service the RTX130A and provides a complete module-level description of the operation of the instrument.
Page 19 Getting Started...
Page 21: Product Description
The RTX130A QAM & VSB RF Signal Generator generates QAM and 8VSB modulated signals that are compliant with the DVB-C/ITU-T J.83 Annex A/B/C and ATSC standards. In addition to the RF signal output feature, the RTX130A records and plays MPEG-2 transport streams that are compliant with ATSC, DVB, and ARIB standards.
Page 22: Standard Accessories
Scheduler application for automated stream playout and record (Option SC only) The RTX130A includes the ReMux application software that provides the capability to create a transport stream of super frame structure defined in the ISDB-S systems from an MPEG2 transport stream. Refer to Appendix B: Using ReMux Application for detailed information about the ReMux application.
Page 23: Table 1-1: Power Cord Identification
USB mouse, Tektronix part number 119-6936-00. Front cover, Tektronix part number 200-3897-00. All RTX130A QAM & VSB RF Signal Generators are shipped with one of the Power Cords following power cord options. Power codes for use in North America are UL listed and CSA certified.
Page 24: Optional Accessories
China 240 V No power code supplied. Optional Accessories The following items are optional accessories: RTX130A QAM & VSB RF Signal Generator Service Manual, Tektronix part number 071-1863-XX. WFM7F05 rackmount kit 1700F06 blank panel Options The RTX130A can be ordered with the following options:...
Page 25: Initial Product Inspection
5. Perform the functional check procedure (refer to Functional Check Procedure on page 1-9) after installing the instrument. Contact your local Tektronix Field Office or representative if there is a problem with your instrument or if your shipment is incomplete.
Page 26: Installation
When the RTX130A is mounted in a 19-inch rack, verify that there is at least one unit of clearance above the RTX130A. Check that your location provides the proper electrical power requirements as AC Line Voltage listed in Table 1-3.
Page 27: Figure 1-1: Rear-Panel Power Connector
Do not operate the instrument if the cooling fan does not operate when CAUTION. you turn the instrument on. Serious damage to your instrument can occur from overheating if the cooling fan is not operating. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 28: Repacking For Shipment
125 kg (275 pounds). 2. If the instrument is being shipped to a Tektronix Service Center for repair or calibration, attach a tag to the instrument showing the following information: The owner of the instrument (with address).
Page 29: Functional Check Procedure
NOTE. instructions listed in Installation starting on page Up Windows XP Professional. 1. Connect the RTX130A to a power source, and then turn the instrument on using the ON/STBY switch. 2. Press the front-panel MENU button to display the File menu command list.
Page 30: Figure 1-4: Equipment Connection For The Functional Check
5. Connect the interface cable provided with the instrument between the SPI In/Out connector on the RTX130A rear panel and the SPI IN connector on an MPEG decoder. See Figure 1-4. 6. Connect the decoder to a picture monitor.
Page 31: Windows Operations
Getting Started Windows Operations All of the functions of the RTX130A are performed as an application (RTX130A application) on the Windows XP operating system. Therefore, if you connect the keyboard and mouse provided with the instrument to the front-panel USB connectors, you can operate the RTX130A system with the same environment as a Windows PC.
Page 32 Getting Started 1-12 RTX130A QAM & VSB RF Signal Generator User Manual...
Page 33 Operating Basics...
Page 35: Functional Overview
Operating Basics This section explains the basics of operating the RTX130A. The information is divided into the following subsections: Functional Overview contains descriptions of the front-panel controls, the rear-panel connectors, and elements of the display. Basic Menu Operation provides the basic concepts of how to operate the RTX130A using the menus and front-panel buttons, and how to enter numeric input into dialog boxes.

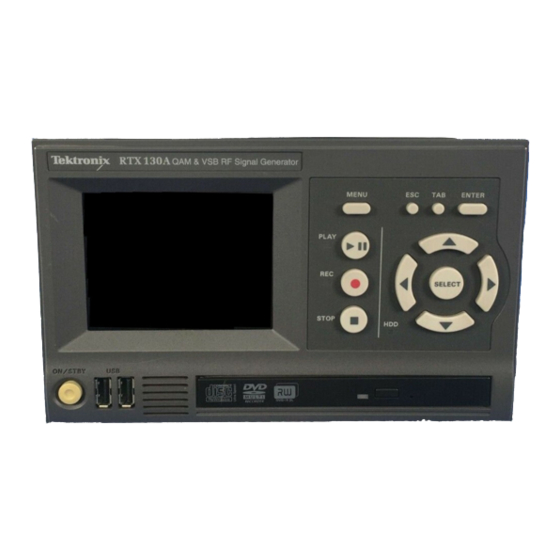

Page 36: Figure 2-1: Rtx130A Front Panel
When an ISDB-T transport stream is selected, the RTX130A outputs the stream from the start packet in the OFDM (Orthogonal Frequency Division Multiplexing) frame to the maximum number of packets that can be looped as 2 X N of the number of OFDM frames.
Page 37 Icon cursor or to move among the menu selections. HDD Access Indicator. This indicator lights when the hard disk drive or the DVD-R/W drive is in operation. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 38: Figure 2-2: Rtx130A Rear Panel
Serial Interface) signal or a SMPTE310M signal. Clock/Ref In. Use this BNC connector to input an external reference signal or clock signal to the RTX130A. Refer to Appendix A: Specifications for detailed information about the signal specification. Use a continuous signal for an external reference or clock signal.
Page 39 2. Click the Intel(R) Extreme Graphics 2M icon (see below) at the right side of the taskbar. 3. Select Graphic Options > Output To > Intel(R) Dual Display Clone > Monitor+Notebook from the displayed menu. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 40 Com. This 9-pin D-sub connector provides a serial interface for instrument control. Power Connector. Use this connector to apply power to the instrument using the supplied power cord. There are two types of display screens to operate the RTX130A; the Play screen Display Elements and the Record screen.
Page 41: Figure 2-3: Elements Of The Play Screen
Menu Bar. The Menu bar displays the names of the menus that can be used in the Play or Record screen. Press the MENU button to enable or disable the menus. Refer to Using the Menus on page 3-3 for detailed information about the menus. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 42: Figure 2-4: Play Status Indicator
1. Position Indicator. In the Play screen, this indicator shows the progress of the stream output using the duration gauge. In the Record screen, this indicator shows the progress of the stream record using the duration gauge. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 43 This icon shows that the captured stream is being recorded. This icon shows that the stream record is being stopped. This icon shows that the RTX130A waits for a trigger event. This icon shows that a trigger event occurs. This icon shows that the captured stream is being processed on the hard disk.
Page 44: Figure 2-5: Status Bar
In the Record screen, this indicator shows the record target used to record the input stream. This indicator is the same as the output source/record target indicator of the Play/Record Status indicator. 2-10 RTX130A QAM & VSB RF Signal Generator User Manual...
Page 45 To reset the lock status, send the :SYSTem:KLOCk:STATe OFF command or press the ESC button on the front panel (if a keyboard is connected, press the Esc key). When the TCP/IP connection is closed, the remote status icons disappear. RTX130A QAM & VSB RF Signal Generator User Manual 2-11...
Page 46: Basic Menu Operation
Operating Basics Basic Menu Operation This section describes the basics of using the RTX130A menu and the methods for entering numeric input in the various dialog boxes. The menus are displayed in the menu bar at the top of the Play or Record screen.
Page 47: Figure 2-7: Display Status Of The Menu Commands
1. Open a dialog box including the text box in which you want to change a parameter. 2. Press the TAB button repeatedly to select (highlight) the numeric parameter you want to change in the open dialog box. RTX130A QAM & VSB RF Signal Generator User Manual 2-13...
Page 48: Figure 2-8: Keypad
5. Press the up ( ) or down ( ) arrow button to increase or decrease the value. 6. Repeat steps 4 and 5 to enter all of the desired values. To add a digit, press the left ( ) arrow button. 2-14 RTX130A QAM & VSB RF Signal Generator User Manual...
Page 49: About The Data Output Source
When you select the RAM as the output source, the RTX130A performs the following: When the data output rate is less than or equal to 120 Mbps, the RTX130A outputs the first stream data while transferring the data from the hard disk to the RAM and then continuously outputs the data from the RAM using looping methods.
Page 50 Operating Basics 2-16 RTX130A QAM & VSB RF Signal Generator User Manual...
Page 51: Tutorials
Outputting a transport stream Recording a transport stream Outputting an RF modulated transport stream These tutorials do not cover all the features and functions of the RTX130A. NOTE. The tutorials are intended to introduce you to the operations required to execute the instrument basic functions.
Page 52: Outputting A Transport Stream
Tutorials Outputting a Transport Stream The hard disk drive of the RTX130A is shipped with files containing factory-supplied samples of transport streams. This tutorial opens one of these sample files and outputs the transport stream. Perform the following steps to select and output a stored transport stream: 1.
Page 53: Figure 2-10: Hierarchy View Of The Transport Stream File
Figure 2-10: Hierarchy view of the transport stream file 5. Connect the 75 Ω BNC cable between the ASI/SMPTE Output connector on the RTX130A rear panel to the ASI In connector of the MPEG test system. 6. Press the RTX130A PLAY button to start the transport stream output.
Page 54: Recording A Transport Stream
1. Press the front-panel REC button to display the Record screen. Since no signal is being applied at this time, the No Signal message appears at the top of the screen (see Figure 2-13). Figure 2-13: No Signal message 2-20 RTX130A QAM & VSB RF Signal Generator User Manual...
Page 55: Figure 2-14: Record Status Indicator
Tutorials 2. Connect the 75 Ω BNC cable between the ASI/SMPTE Input connector on the RTX130A rear panel to the ASI OUT connector of the MPEG test system. 3. Output a transport stream from the MPEG test system. When transport stream output is started, the hierarchy view of the transport stream is displayed on the Record screen of the RTX130A.
Page 56: Outputting An Rf Modulated Transport Stream
Set the RF modulation parameters in the dialog box to meet your modulation standard. 7. Connect the 75 Ω BNC cable between the RF Out connector on the RTX130A rear panel and the RF INPUT connector on the RF receiver.
Page 57 Reference...
Page 59 Using the Menus describes the function of each selection available in the menus. Hierarchy Display describes the icons used by the RTX130A to represent transport stream elements. Adding Jitter to PCRs provides instructions and procedures on how to add jitter to PCRs.
Page 60 Reference RTX130A QAM & VSB RF Signal Generator User Manual...
Page 61: Using The Menus
Description Open Opens a stream file. When a file is selected, the RTX130A checks the packet size of the file. When it is a transport stream file, its data is output in packets. Therefore, if an incomplete packet is included at the start or end point of the file, the portion is not output.
Page 62: Figure 3-1: Select File Dialog Box
Table 3-1: File menu commands (Play screen) (cont.) Command Description Exit Quits the RTX130A application. The RTX130A application settings are saved. Shutdown Quits the RTX130A application and shuts down the RTX130A. Select File Dialog Box. When you select the Open command from the File menu, the Select File dialog box appears as shown in Figure 3-1.
Page 63: Table 3-2: View Menu Commands
188 when you set RF Output to On in the QAM/VSB menu. When you select Non TS, the RTX130A deals with stream data in a byte unit (not a packet unit) and outputs all of the data in a file. If a transport stream contains any error, you can output it by selecting Non TS.
Page 64 RTX130A. You can select On or Off. If you select On, take notice of the output level setting used when the RTX130A was last turned off and the input level of the instrument (device) currently connected to the RTX130A.
Page 65: Figure 3-2: Clock Dialog Box
( ) or right ( ) arrow button to select the desired clock source. You can select from the following settings: Internal uses the internal clock of the RTX130A as the clock reference. Ext Ref allows you to input a signal on the Clock/Ref In connector for use as the clock reference.
Page 66 3-7). The RTX130A will then calculate the clock rate based on the ratio of the numerator and denominator values. Enter a value into the clock rate text box. The RTX130A will then calculate the numerator and denominator text boxes based on the clock rate.
Page 67 If you change the value, the clock rate value in the Data Rate dialog box is also changed. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 68: Figure 3-3: Set Non-Ts Sync Dialog Box
Press the TAB button repeatedly to select the box, and then press the up ( ) or down ( ) arrow button to set the value. Press the ENTER button to enable all setting changes. RTX130A QAM & VSB RF Signal Generator User Manual 3-10...
Page 69: Figure 3-4: Pcr Initial Value Dialog Box
Press the TAB button repeatedly to select the text box, and then press the SELECT button to open the keypad. Use the keypad to set the desired value. RTX130A QAM & VSB RF Signal Generator User Manual 3-11...
Page 70: Figure 3-5: Start/Stop Position Dialog Box
For a transport stream file, you can select Time or Packets. For a M-TMCC file, you can select Time or SF (super frame). For a Non TS file, you can select Time or Bytes. RTX130A QAM & VSB RF Signal Generator User Manual 3-12...
Page 71 Press the left ( ) or right ( ) arrow button to move the slider to the place you want to set the initial start position. d. Press the ENTER button to enable the value. RTX130A QAM & VSB RF Signal Generator User Manual 3-13...
Page 72: Figure 3-6: Timer Play/Record Dialog Box
TAB button to select year, month, date, hour, minute, or second, and then press the up ( ) or down ( ) arrow button to set the value. If a mouse is connected to the RTX130A, you can display a calendar for date setting by clicking the arrow button at the right side of the date display.
Page 73: Figure 3-7: Others Dialog Box
Press the TAB button repeatedly to select the list box, and then press the arrow buttons to select one of the external play modes. RTX130A QAM & VSB RF Signal Generator User Manual 3-15...
Page 74 ISDB-T Frame Pulse Delay: Sets the amount of delay for the start packet pulse of the ISDB-T frame in 1-parallel clocks of the SPI output. You can set the value from 0 to 15. RTX130A QAM & VSB RF Signal Generator User Manual 3-16...
Page 75 TDT, TOT, or STT are available. Press the TAB button repeatedly to select an option button, and then press the arrow buttons to select one of the options. RTX130A QAM & VSB RF Signal Generator User Manual 3-17...
Page 76 SELECT button to toggle the check box on (checked) or off (not checked). When it is not checked, the stream is output in Non TS format. RTX130A QAM & VSB RF Signal Generator User Manual 3-18...
Page 77 NPT, if you enable the NPT option, Software is selected automatically. Press the TAB button repeatedly to select the list box, and then press the arrow buttons to select either of the two methods. RTX130A QAM & VSB RF Signal Generator User Manual 3-19...
Page 78: Table 3-4: Qam/Vsb Menu Commands (Play Screen)
Modulation Dialog Box on page 3-21 for more information. Calibration This command is not for users for the RTX130A. This command is used by factory personnel only to calibrate the instrument. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 79: Figure 3-8: Modulation Dialog Box
For J83 Annex C and J83 Annex C-JCTEA: 64 QAM For ATSC: 8VSB Press the TAB button repeatedly to select the list box, and then press the arrow buttons to select one of the modulation modes. RTX130A QAM & VSB RF Signal Generator User Manual 3-21...
Page 80 IF (36 MHz): A 36 MHz IF signal is output from the IF Out connector. IF Reversed (36 MHz): A 36 MHz IF signal with reversed spectrum is output from the IF Out connector. Press the ENTER button to enable all setting changes. RTX130A QAM & VSB RF Signal Generator User Manual 3-22...
Page 81: Figure 3-9: Communication Dialog Box
Utility menu, the Communication dialog box appears as shown in Figure 3-9. Figure 3-9: Communication dialog box Port Number: Sets the port number needed to remotely control the RTX130A over an Ethernet network. You can set the value from 1024 to 65535.
Page 82: Figure 3-10: Option Key Dialog Box
Using the Menus Terminator Tx: Sets the terminator used when the RTX130A sends information to a controller. You can select LF (linefeed), CR (carriage return), CRLF (carriage return and linefeed), or LFCR (linefeed and carriage return). Press the TAB button repeatedly to select the list box, and then press the arrow buttons to select one of the terminators.
Page 83: Figure 3-11: Status Dialog Box
Status Dialog Box. When you select the Status command from the Utility menu, the Status dialog box appears as shown in Figure 3-11. This dialog box shows the version of the RTX130A application and hardware version of the main module.
Page 84: Menus In The Record Screen
File Menu and for saving and loading a preset file. This menu also contains commands for exiting the RTX130A application and for shutdown of the instrument. Table 3-6 describes the commands in the File menu. Table 3-6: File menu commands (Record screen)
Page 85: Figure 3-12: Target Dialog Box
Refer to Others Dialog Box on page 3-29 for more information. Target Dialog Box. When you select the Target command from the Record menu, the Target dialog box appears as shown in Figure 3-12. Figure 3-12: Target dialog box RTX130A QAM & VSB RF Signal Generator User Manual 3-27...
Page 86 Refer to Continuous Recording Feature beginning on page 3-55 for detailed information about Continuous Recording. Ignore D valid: Sets whether the RTX130A ignores the DVALID signal from the selected interface when a stream data is acquired. When it is checked, the RTX130A ignores the DVALID signal, and the stream data is acquired according to the internal clock signal.
Page 87: Figure 3-13: Others Dialog Box
Fall. When you select Rise, the input stream record is started at the rising edge of the applied trigger signal. When you select Fall, the input stream record is started at the falling edge of the applied trigger signal. RTX130A QAM & VSB RF Signal Generator User Manual 3-29...
Page 88: Table 3-8: Qam/Vsb Menu Command (Record Screen)
RTX130A acquires pretrigger data when a valid trigger signal occurs and then waits for a trigger. When a valid trigger signal occurs again, the RTX130A acquires posttrigger data and then creates a stream file. Press the TAB button repeatedly to select the list box, and then press the arrow buttons to select one of the external record modes.
Page 89: Figure 3-14: Rf Clock Source Dialog Box
J.83 Annex C-JCTEA or ATSC is selected as a modulation standard. 10 MHz: Selects a 10 MHz signal on the Clock/Ref In connector. 27 MHz: Selects a 27 MHz signal on the Clock/Ref In connector. RTX130A QAM & VSB RF Signal Generator User Manual 3-31...
Page 90: Toolbar Buttons
Records the acquired stream. Equivalent to the RECORD button on the front panel. Stop Stops the stream output or stream record. Equivalent to the STOP button on the front panel. RTX130A QAM & VSB RF Signal Generator User Manual 3-32...
Page 91 Play menu. This button is available when the Play screen is displayed. Target Opens the Target dialog box. Equivalent to the Target command in the Record menu. This button is available when the Record screen is displayed. RTX130A QAM & VSB RF Signal Generator User Manual 3-33...
Page 92 Using the Menus RTX130A QAM & VSB RF Signal Generator User Manual 3-34...
Page 93: Hierarchy Display
Overview of the Hierarchy Display The RTX130A uses icons displayed in a hierarchical structure to show the interrelationship of transport stream components (see Figure 3-15). Additional information about each stream component such as PID and Table ID numbers is displayed next to each icon.
Page 94: Hierarchy Display Icons
Hierarchy Display Icons Table 3-10 describes the icons you may encounter in the hierarchy display of the RTX130A for transport streams using the MPEG-2, ARIB, DVB, and ATSC formats. Table 3-11 on page 3-40 describes icons that are specific to transport streams using DVB format.
Page 95: Table 3-10: Icons Used For Mpeg-2, Arib, Dvb, And Atsc Formats
One or more transport packets with a PID value specified by the elementary_PID in the PMT and a stream_type value of 0x01 or 0x02. A lock symbol appears in the icon when the transport_scrambling_control value is set to 01. RTX130A QAM & VSB RF Signal Generator User Manual 3-37...
Page 96 One or more transport packets with a PID value specified by the elementary_PID in the PMT and a stream_type value of 0x08. A lock symbol appears in the icon when the transport_scrambling_control value is set to 01. RTX130A QAM & VSB RF Signal Generator User Manual 3-38...
Page 97 One or more transport packets in the section-data structure at the beginning of the section are not complete. Adaptation Field Error (ADFERR) One or more transport packets with an adaptation_field_control value of 0x00. RTX130A QAM & VSB RF Signal Generator User Manual 3-39...
Page 98: Table 3-11: Icons Specific To Dvb Format
One or more transport packets with a PID value of 0x0014 and a table_id value of 0x72. Time Offset Table (TOT) One or more transport packets with a PID value of 0x0014 and a table_id value of 0x73. RTX130A QAM & VSB RF Signal Generator User Manual 3-40...
Page 99: Table 3-12: Icons Specific To Arib Format
PMT and a table_id value of 0xD2. Partial Content Announcement Table (PCAT) One or more transport packets with a PID value of 0x22 and a table_id value of 0xC2. RTX130A QAM & VSB RF Signal Generator User Manual 3-41...
Page 100 One or more transport packets with a PID value of 0x0014 and a table_id value of 0x72. Time Offset Table (TOT) One or more transport packets with a PID value of 0x0014 and a table_id value of 0x73. RTX130A QAM & VSB RF Signal Generator User Manual 3-42...
Page 101: Table 3-13: Icons Specific To Atsc Format
PMT and a table_id value of 0xD0 when a stream_type value is 0x85. System Time Table (STT) One or more transport packets with a PID value of 0x1FFB and a table_id value of 0xCD. RTX130A QAM & VSB RF Signal Generator User Manual 3-43...
Page 102: Icon Text And Dialog Box
Hierarchy Display Icon Text and Dialog Box To the right of each icon, the RTX130A displays text that describes each transport stream component. In addition, for the PCR icon, you can display a dialog box to change the parameters for the component.
Page 103 The following text information is displayed for the Conditional Access Table Conditional Access Table (CAT) icon: (CAT) Icon PID: Shows the PID value of the CAT. TblID: Shows the table_id value of the CAT. RTX130A QAM & VSB RF Signal Generator User Manual 3-45...
Page 104: Figure 3-16: Pcr Inaccuracy Dialog Box
Refer to Adding Jitter to PCRs on page 3-51 for more information. Table 3-14 describes the PCR Inaccuracy dialog box parameters. Figure 3-16: PCR Inaccuracy dialog box RTX130A QAM & VSB RF Signal Generator User Manual 3-46...
Page 105: Table 3-14: Pcr Inaccuracy Dialog Box Parameters
The following text information is displayed for the audio elementary stream Audio Elementary Stream (AUDIO) icon: (AUDIO) Icon PID: Shows the PID value of the audio elementary stream. StrmTyp: Shows the type of the audio elementary stream (0x03 or 0x04). RTX130A QAM & VSB RF Signal Generator User Manual 3-47...
Page 106 PID: Shows the PID value of the EMM. TblID: Shows the table_id value of the EMM. The following text information is displayed for the GHOST icon: GHOST Icon PID: Shows the PID value of the GHOST. RTX130A QAM & VSB RF Signal Generator User Manual 3-48...
Page 107 The following text information is displayed for the Master Guide Table (MGT) and MGT and PIT Icons Program Identifier Table (PIT) icons: PID: Shows the PID value of the MGT or PIT. TblID: Shows the table_id value of the MGT or PIT. RTX130A QAM & VSB RF Signal Generator User Manual 3-49...
Page 108 The following text information is displayed for the System Time Table (STT) icon: System Time Table (STT) Icon PID: Shows the PID value of the STT. TblID: Shows the table_id value of the STT. RTX130A QAM & VSB RF Signal Generator User Manual 3-50...
Page 109: Adding Jitter To Pcrs
Adding Jitter to PCRs The RTX130A provides the capability to add jitter to PCRs (Program Clock References). Adding jitter to PCRs allows you to simulate transmission delay variations and to test the robustness of decoders under various conditions. The jitter function adds jitter to the program_clock_reference_base value and the program_clock_reference_extension value in the adaptation field of transport stream packets.
Page 110 Sine is selected as a jitter-pattern waveform. The PCR values varies by the value of sine waveform defined by the amplitude and period. The PCR period does not change. RTX130A QAM & VSB RF Signal Generator User Manual 3-52...
Page 111: Figure 3-18: Jitter Function With A Sine Jitter Pattern Applied
Number of packets (time) PCR values PCR period PCR values - Original PCR values - PCR values with sine jitter applied Time Figure 3-18: Jitter function with a sine jitter pattern applied RTX130A QAM & VSB RF Signal Generator User Manual 3-53...
Page 112 Adding Jitter to PCRs RTX130A QAM & VSB RF Signal Generator User Manual 3-54...
Page 113: Continuous Recording Feature
The time stamp information of the first trigger event in a file is recorded as the updated date property of the file Can be used in Disk or RAM recording mode RTX130A QAM & VSB RF Signal Generator User Manual 3-55...
Page 114: Basic Action Of Continuous Recording
In this case, File A is smaller than the specified size. Trigger event File A 300 MB 500 MB Trigger event File B 500 MB 500 MB Pretrigger area Posttrigger area RTX130A QAM & VSB RF Signal Generator User Manual 3-56...
Page 115: Performing Continuous Recording
3. In the dialog box, select the folder where stream files are to be saved. 4. Select Record > Target to open the Target dialog box. 5. In the dialog box, enable the Continuous Recording check box (see Figure 3-19). RTX130A QAM & VSB RF Signal Generator User Manual 3-57...
Page 116: Figure 3-19: Continuous Recording Check Box
While Continuous Recording is running, the total number of captured files are displayed in the file counter on the record status indicator (see Figure 3-20). File counter Figure 3-20: File counter RTX130A QAM & VSB RF Signal Generator User Manual 3-58...
Page 117 The error message Drive Full appears when there is no space to record a NOTE. captured file with the specified file size on the hard disk. RTX130A QAM & VSB RF Signal Generator User Manual 3-59...
Page 118 Continuous Recording Feature RTX130A QAM & VSB RF Signal Generator User Manual 3-60...
Page 119 Preset File The RTX130A provides the capability to save the user-defined instrument settings as a preset file and load the instrument settings saved as a preset file. This section describes the contents of the instrument settings saved as a preset file and tells how to save and load a preset file.
Page 120: Figure 3-21: Save As Dialog Box
Perform the following steps to load a preset file: 1. Select File > Load Preset, and then press the ENTER button. The Open dialog box appears as shown in Figure 3-22. RTX130A QAM & VSB RF Signal Generator User Manual 3-62...
Page 121: Figure 3-22: Open Dialog Box
3. Press the up ( ) or down ( ) arrow button to select the preset file that you want to load. The selected file name is displayed in the File Name text box. 4. Press the ENTER button. This loads the preset file into the instrument. RTX130A QAM & VSB RF Signal Generator User Manual 3-63...
Page 122 Preset File RTX130A QAM & VSB RF Signal Generator User Manual 3-64...
Page 123: Figure 3-23: Pin Connections For A Crossover Ethernet Cable
Connecting to a Network The RTX130A has a LAN (10/100/1000 Base-T) port on the rear panel for Ethernet communications. This section provides instructions for connecting the RTX130A to a single PC or a network and setting the network parameters for the LAN port.
Page 124: Figure 3-24: Network Connections Window
Connecting to a Network Setting Ethernet Network Parameters You can set the network parameters for the RTX130A using the Control Panel of Windows XP. The following procedure requires that you are familiar with the basics of NOTE. using the Windows XP operating system. If necessary, review the Windows XP documentation.
Page 125: Figure 3-25: Local Area Connection Status Dialog Box
Figure 3-25: Local Area Connection Status dialog box 6. Click the Properties button. The Local Area Connection Properties dialog box appears as shown in Figure 3-26. Network component field Figure 3-26: Local Area Connection Properties dialog box RTX130A QAM & VSB RF Signal Generator User Manual 3-67...
Page 126: Figure 3-27: Internet Protocol (Tcp/Ip) Properties Dialog Box
Figure 3-27: Internet Protocol (TCP/IP) Properties dialog box The settings in the dialog box depend on whether a DHCP (Dynamic Host Configuration Protocol) server is in the network connected to the RTX130A. When the DHCP Server is in the Network.
Page 127 Refer to the user documentation supplied with your server OS for detailed information about DHCP server functions. Under some network environments, the RTX130A may not be able to obtain NOTE. the IP address automatically from a DHCP server. In this case, you need to enter the appropriate address value in each submenu item.
Page 128 Connecting to a Network RTX130A QAM & VSB RF Signal Generator User Manual 3-70...
Page 129: Figure 3-28: Example Of Scpi Subsystem Hierarchy Tree
This section contains information on the Standard Commands for Programmable Instruments (SCPI) and IEEE 488.2 Common Commands you can use to program your RTX130A. The information is organized in the following subsections: SCPI Commands and Queries SCPI is a standard created by a consortium that provides guidelines for remote programming of instruments.
Page 130: Table 3-15: Parameter Types Used In Syntax Descriptions
<pattern>. The parameter type is listed after the parameter and is enclosed in parentheses, for example, (discrete). Some parameter types are defined specifically for the RTX130A command set and some are defined by ANSI/IEEE 488.2-1987 (see Table 3-15).
Page 131: Figure 3-29: Example Of Abbreviating A Command
Syntax You can abbreviate most SCPI commands, queries, and parameters to an accepted Abbreviating Commands, short form. This manual shows these short forms as a combination of upper and Queries, and Parameters lower case letters. The upper case letters indicate the accepted short form of a command.
Page 132: Figure 3-31: Example Of Omitting Root And Lower-Level Nodes
Syntax If a command has the same root and lower-level nodes as the previous command, you can omit these nodes. In Figure 3-31, the second command has the same root node (REC) and lower level node (TARG) as the first command, so these nodes can be omitted.
Page 133: Table 3-16: Bnf Symbols And Meanings
ANSI/IEEE Standard 488.2 defines the codes, formats, protocols, and usage of Description common commands and queries used on the interface between the controller and the instruments. The RTX130A complies with this standard. The syntax for an IEEE 488.2 common command is an asterisk (*) followed by a Command and Query command and, optionally, a space and parameter value.
Page 134 Syntax RTX130 QAM & VSB RF Signal Generator User Manual 3-76...
Page 135 Remote Commands This section describes the remote command set that is used in the RTX130A. The commands for the RTX130A are divided into the following six groups: Common commands DISPLAY commands MASS MEMORY commands PLAY commands RECORD commands SYSTEM commands The RTX130A can be controlled remotely through the LAN port on the rear panel.
Page 136 Returns the contents of SESR (Standard Event Status Register) used in the status and events reporting system. *IDN? Returns the ID information of the instrument. The ID information contains manufacturer, model, firmware version, hardware version, and FPGA code version. RTX130A QAM & VSB RF Signal Generator User Manual 3-78...
Page 137 Returns the value of the SBR (Status Byte Register). Bit 6 of the SBR is read as a MSS (Master Status Summary) bit. *TRG Generates a trigger event. *TST? Performs the self test and returns its result. The RTX130A always returns 1. RTX130A QAM & VSB RF Signal Generator User Manual 3-79...
Page 138 Use these commands to perform file related operations such as changing and moving a directory, and loading and saving a preset. Command Tree :MMEMory :CATalog? [<directory_path>] :CDIRectory [:DATA] <directory_path> :STATe <directory_path> :LOAD :STATe <preset_name> :MDIRectory <directory_path> :STORe :STATe <preset_name> RTX130A QAM & VSB RF Signal Generator User Manual 3-80...
Page 139 Creates a subdirectory. The command is invalid if a directory with the specified name already exists. :MMEMory:STORe:STATe <preset_name> Saves the instrument settings with the specified preset name. <preset_name> is a quoted string that defines the preset name. RTX130A QAM & VSB RF Signal Generator User Manual 3-81...
Page 140 :DELAy <numeric_value> :SELEct C27M|ISDBT :LOAD :FILE <file_name> :LOOP ON|OFF :ISDBT :FRAMe ON|OFF :PACKet 188|204|208|NONTs :PCR :INITial <numeric_value>,<numeric_value> :INACcuracy NONE|SINe|SQUare|TRIangle|PULSe|SAW| RANDom|OFFSet[,,numeric_value>, <numeric_value>[,<numeric_value> [,<numeric_value>[,<numeric_value>]]] :QAMVsb :INTerleave <numeric_value> :MODulation M16Qam|M64Qam|M256Qam|M8Vsb :OUTPut :MODE RF|IF|IFReversed|IF36M|IFR36M RTX130A QAM & VSB RF Signal Generator User Manual 3-82...
Page 141 :STOP :SYNC :PSYNc TSPAcket|SF|NONTs :INTErval NONE|<numeric_value> :DVALid :WIDth NONE|<numeric_value> :TIMEpacket :DEFine <numeric_value>,<numeric_value>, <numeric_value>,<numeric_value>, <numeric_value>,<numeric_value> :MODE ORIGinal|OS|USER :UPDAte ON|OFF :ITEM ON|OFF :NPT ON|OFF :PCR ON|OFF :METHod HARDware|SOFTware :REEDsolomon ON|OFF :TIMEpacket ON|OFF RTX130A QAM & VSB RF Signal Generator User Manual 3-83...
Page 142 Returns the current output format setting of the ASI signal. :PLAY:AUTOplay ON|OFF Sets whether the selected stream is automatically output using the last power-down settings when you turn the RTX130A on. You can use 1 or 0 instead of ON or OFF. The default value is OFF. :PLAY:AUTOplay? Return the current auto play mode status.
Page 143 You can set both values from 0 to 2000000000. The default values are 629 for the numerator and 300 for the denominator. :PLAY:CLOCk:RATE:RATIo? Returns the current clock rate for the stream output using a fraction. RTX130A QAM & VSB RF Signal Generator User Manual 3-85...
Page 144 Sets the amount of delay for the start packet pulse of the ISDB-T frame in 1-parallel clocks of the SPI output. You can set the value from 0 to 15. The default value is 0. RTX130A QAM & VSB RF Signal Generator User Manual 3-86...
Page 145 You can use 1 or 0 instead of ON or OFF. The default value is ON. :PLAY:LOOP:ISDBT:FRAMe? Returns whether to output an ISDB-T transport stream in OFDM frames when looped. RTX130A QAM & VSB RF Signal Generator User Manual 3-87...
Page 146 When you select OFF, the stream is output in Non TS format. You can use 1 or 0 instead of ON or OFF. The default value is RTX130A QAM & VSB RF Signal Generator User Manual 3-88...
Page 147 :PLAY:QAMVsb:STANdard command. The default value is M8Vsb for the ATSC standard and M64Qam for the other standards. :PLAY:QAMVsb:MODulation? Returns the current modulation mode setting. RTX130A QAM & VSB RF Signal Generator User Manual 3-89...
Page 148 Sets the RF signal output level. You can set the value from 45 dBmV to 58 dBmV. The default value is 45 dBmV. :PLAY:QAMVsb:RF:LEVEl? Returns the current RF signal output level. RTX130A QAM & VSB RF Signal Generator User Manual 3-90...
Page 149 Sets whether the signal output from the SPI In/Out connector is enabled or not. You can use 1 or 0 instead of ON or OFF. The default value is ON. :PLAY:SPIOutput? Returns the current output status of the SPI In/Out connector. RTX130A QAM & VSB RF Signal Generator User Manual 3-91...
Page 150 0 to (available maximum value of the selected stream file). The default values are both 0. :PLAY:SSPOsition[:POSition]? Returns the current loop start and stop position settings of the selected stream by the number of packets. RTX130A QAM & VSB RF Signal Generator User Manual 3-92...
Page 151 DVALID signal is disabled. You can set the width from 16 bytes to 255 bytes. This value cannot be set more than the value set by the :PLAY:SYNC:PSYNC:INTerval command. The default value is 188. RTX130A QAM & VSB RF Signal Generator User Manual 3-93...
Page 152 For USER, you can set any value in the :PLAY:TIMEpacket:DEFine command. The default value is ORIGinal. :PLAY:TIMEpacket:MODE? Returns the current reference time selection used to set the initial value of the TDT, TOT, or STT. RTX130A QAM & VSB RF Signal Generator User Manual 3-94...
Page 153 Returns whether to update PCR/PTS/DTS values when the :PLAY:UPDAte command is set to ON. :PLAY:UPDAte:ITEM:PCR:METHod HARDware|SOFTware Sets the method to update PCR/PTS/DTS values. The choices are HARDware and SOFTware. The default value is HARDware. RTX130A QAM & VSB RF Signal Generator User Manual 3-95...
Page 154 Use these commands to set parameters related to the data record. These include input interface, record size, and trigger position. Command Tree :RECord :ACQuire :STARt :STOP :CLOCk :RATE? :EXTernal RISE|FALL|OFF :PACKet? :QAMVsb :CLOCk :SOURce ASYNc|EXT10M|EXT27M :PORT :TYPE ASI|S310M :THROughout ON|OFF RTX130A QAM & VSB RF Signal Generator User Manual 3-96...
Page 155 RISE, the input stream record is started at the rising edge of the applied trigger signal. When you select FALL, the input stream record is started at the falling edge of the applied trigger signal. The default value is OFF. RTX130A QAM & VSB RF Signal Generator User Manual 3-97...
Page 156 :RECord:QAMVsb:PORT:TYPE ASI|S310M Sets the input signal expected from the ASI/SMPTE Input connector. The choices are ASI and S310M (SMPTE310M). The default value is ASI. :RECord:QAMVsb:PORT:TYPE? Returns the current input signal selection. RTX130A QAM & VSB RF Signal Generator User Manual 3-98...
Page 157 :RECord:STORe:FILE command. The default value is OVERwrite. :RECord:STORe:MODE? Returns the current save mode setting when the input stream is saved. RTX130A QAM & VSB RF Signal Generator User Manual 3-99...
Page 158 Returns the current Continuous Recording state. :RECord:TARGet:TRIGger:CONTinuous:LIMit <numeric_value> Sets the number of files to stop Continuous Recording. You can set the value from 2 to 32767. The default value is 32767. RTX130A QAM & VSB RF Signal Generator User Manual 3-100...
Page 159 RAM. You can use 1 or 0 instead of ON or OFF. The default value is OFF. :RECord:TARGet:TRIGger:UNLImit? Returns whether to record the input stream to the full free space in the hard disk or RAM. RTX130A QAM & VSB RF Signal Generator User Manual 3-101...
Page 160 :SYSTem:COMMunicate:SOCKet:PORT? Returns the current port number setting. :SYSTem:COMMunicate:SOCKet:RXTERM CR|LF Sets the terminator used when the RTX130A receives commands from a controller. The choices are CR (carriage return) and LF (linefeed). The default value is LF. :SYSTem:COMMunicate:SOCKet:RXTERM? Returns the terminator used when the RTX130A receives commands from a controller.
Page 161 Remote Commands :SYSTem:COMMunicate:SOCKet:TXTERM? Returns the terminator used when the RTX130A sends information to a controller. :SYSTem:ERRor[:NEXT]? Returns an error message from the error/event queue. The response format is as follows: <error_code>,“<error_message>” Refer to Error Messages and Codes on page 3-107 for detailed information.
Page 162 Returns the current operation status of the instrument. The available responses are: 0: the instrument stops any operations 1: the instrument is outputting a data 2: the instrument is acquiring a data 3: the instrument is recording a data RTX130A QAM & VSB RF Signal Generator User Manual 3-104...
Page 163: Table 3-17: Default Settings
NONE :PLAY:PCR:INITial 0, 0 :PLAY:QAMVsb:INTerleave :PLAY:QAMVsb:MODulation M64Qam (M8Vsb for ATSC) :PLAY:QAMVsb:OUTPut:MODE :PLAY:QAMVsb:PORT:THROughout ON (1) :PLAY:QAMVsb:PORT:TYPE :PLAY:QAMVsb:RF:FREQuency 50.0 MHz :PLAY:QAMVsb:RF:LEVEl 45 dBm :PLAY:QAMVsb:SYMBol:RATE :PLAY:SOURce DISK :PLAY:SPIOutput ON (1) :PLAY:SSPOsition:INITial:ENABle ON (1) RTX130A QAM & VSB RF Signal Generator User Manual 3-105...
Page 164 50 [MB} :RECord:TARGet:TIME 00:00:00 :RECord:TARGet:TRIGger:CONTinuous OFF (0) :RECord:TARGet:TRIGger:CONTinuous:LIMit 32767 :RECord:TARGet:TRIGger:POSition 0 [%] :RECord:TARGet:TYPE DISK :RECord:TARGet:UNLImit OFF (0) SYSTEM commands :SYSTem:COMMunicate:SOCKet:PORT 49152 :SYSTem:COMMunicate:SOCKet:RXTERM :SYSTem:COMMunicate:SOCKet:TXTERM CRLF :SYSTem:KLOCk[:STATe] OFF (0) :SYSTem:MODE PLAY :SYSTem:STANdard ARIB RTX130A QAM & VSB RF Signal Generator User Manual 3-106...
Page 165: Table 3-18: Command Errors
-130 suffix error -131 invalid suffix -134 suffix too long -138 suffix not allowed -140 character data error -141 invalid character data -144 character data too long RTX130A QAM & VSB RF Signal Generator User Manual 3-107...
Page 166: Table 3-19: Execution Errors
-220 parameter error -221 settings conflict -222 data out of range -223 too much data -224 illegal parameter value -225 out of memory -226 lists not same length RTX130A QAM & VSB RF Signal Generator User Manual 3-108...
Page 167 -280 program error -281 cannot create program -282 illegal program name -283 illegal variable name -284 program currently running -285 program syntax error -286 program runtime error RTX130A QAM & VSB RF Signal Generator User Manual 3-109...
Page 168: Table 3-20: Device Specific Errors
These error codes are returned in response to an unanswered query. Table 3-21: Query errors Error code Error message -400 query error -410 query interrupted -420 query unterminated -430 query deadlocked -440 query unterminated after indefinite period RTX130A QAM & VSB RF Signal Generator User Manual 3-110...
Page 169 To check remote command operation of the RTX130A, perform the following steps: 1. Connect the RTX130A to your PC using an Ethernet cable. Refer to Connecting to a Network on page 3-65 for detailed information about how to connect the RTX130A to your PC.
Page 170: Figure 3-32: Run Dialog Box
5. At the command line prompt, type open <host name> <port number> and press the Enter key. Where <host name> is a computer name of the RTX130A to be connected and <port number> is the port number set in the Communication dialog box (default value: 49152).
Page 171 Appendices...
Page 173: Table A-1: Functional Specifications
Table A-4 on page A-10. The RTX130A must have a warm-up period of at least 20 minutes. ° The RTX130A must be operating at an ambient temperature between +5 °...
Page 174: Table A-2: Mainframe
Output impedance Frequency 50 MHz to 100 MHz, locked to reference clock Output clock 50 MHz maximum (serial clock) 26.75 MHz maximum (parallel clock) Output rate 214 Mbps maximum 64 Kbps minimum RTX130A QAM & VSB RF Signal Generator User Manual...
Page 175 T/2 ± T/10, T=1/f (f=byte clock frequency) (see Figure A-1 on page A-9) Data hold time, typical T/2 ± T/10, T=1/f (f=byte clock frequency, data are latched on DCLK rising edge) (see Figure A-1 on page A-9) RTX130A QAM & VSB RF Signal Generator User Manual...
Page 176 I=32, J=4 (0101) I=16, J=8 (0111) I=8, J=16 (1001) I=128, J=1 (0000) I=128, J=2 (0010) I=128, J=3 (0100) I=128, J=4 (0110) I=128, J=5 (1000) I=128, J=6 (1010) I=128, J=7 (1100) I=128, J=8 (1110) RTX130A QAM & VSB RF Signal Generator User Manual...
Page 177 > 27.0 dB, 190 MHz to 860 MHz @ 45 dBmV to 52 dBmV SN (8VSB) > 25.0 dB, 190 MHz to 860 MHz @ > 52 dBmV > 25.0 dB, < 190 MHz @ 45 dBmV to 58 dBmV RTX130A QAM & VSB RF Signal Generator User Manual...
Page 178 < -17 dB (5 MHz to 270 MHz) into 75 Ω load (ASI) < -17 dB (5 MHz to 38.785316 MHz) into 75 Ω load (SMPTE310M) Data format Accepts both byte and packet modes. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 179 PaperEmpty SELECT USB 2.0 interfaces Number of connectors Pin assignments -DATA +DATA LAN interface 10/100/1000 Base-T Ethernet interface Connector type RJ-45 Pin assignment MDI_0+ MDI_2- MDI_0- MDI_1- MDI_1+ MDI_3+ MDI_2+ MDI_3- RTX130A QAM & VSB RF Signal Generator User Manual...
Page 180 Frequency range 50 Hz to 60 Hz Maximum power 180 VA Maximum current 1.3 A Main fuse data 5A Time-delayed, 250 V (not operator replaceable) 2A Time-delayed, 250 V (not operator replaceable) RTX130A QAM & VSB RF Signal Generator User Manual...
Page 181: Figure A-1: Timing Diagram Of The Spi Interface
5 ns T/2 ± T/10 DCLK Input clock pulse width Output data delay T/2 ± T/10 DATA 0-7 DCLK Input data hold time Figure A-1: Timing diagram of the SPI interface RTX130A QAM & VSB RF Signal Generator User Manual...
Page 182: Table A-3: Mechanical Characteristics
(0.27 Grms), 5 Hz to 500 Hz, 10 min, three axes Non-operating 22.3 m/s rms (2.28 Grms), 5 Hz to 500 Hz, 10 min, three axes Shock Non-operating 294 m/s2 (30 G), half-sine, 11 ms duration. RTX130A QAM & VSB RF Signal Generator User Manual A-10...
Page 183: Table A-5: Certifications And Compliances
Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use. Australia/New Zealand Declaration of Complies with EMC provision of Radio Communications Act per the following standard(s): Conformity-EMC AS/NZS 2064.1/2 Industrial, Scientific, and Medical Equipment: 1992 RTX130A QAM & VSB RF Signal Generator User Manual A-11...
Page 184 Pollution Degree Pollution Degree 2 (as defined in IEC 61010-1). Note: Rated for indoor use only. IEC Characteristics Equipment type: Test and Measuring Safety Class I – grounded product RTX130A QAM & VSB RF Signal Generator User Manual A-12...
Page 185 The ReMux application cannot handle files larger than 2 GB. NOTE. Starting and Exiting ReMux The ReMux application is preinstalled on the RTX130A. To start the ReMux application, select Tektronix > MPEG > ReMux from the Start-Programs menu on the Windows desktop.
Page 186: Figure B-1: Remux Application Window
Figure B-1 shows the ReMux application window. Table B-1 describes the elements in the application window. Title bar Menu bar Toolbar Welcome to ReMux Application dialog box Status bar Figure B-1: ReMux application window RTX130A QAM & VSB RF Signal Generator User Manual...
Page 187: Table B-1: Element Of The Remux Window
The status bar displays the short explanation of the currently selected command and information related to the operation. You can toggle the status bar display on and off using the Status Bar command in the View pull-down menu. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 188: Table B-2: Toolbar Button Descriptions
Make S-TMCC TS Equivalent to the Mode: Make S-TMCC TS command in the ReMux menu. DeMux to M-TMCC Equivalent to the Mode: DeMux to M-TMCC TS command in the ReMux menu. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 189: Figure B-2: Select Remux Mode Dialog Box
Figure B-2) appears after you select the New command in the File menu. Select one of the ReMux modes, then click the OK button. Table B-4 describes the Select Remux Mode dialog box parameters. Figure B-2: Select Remux Mode dialog box RTX130A QAM & VSB RF Signal Generator User Manual...
Page 190: Table B-4: Remux File Menu Commands
Welcome dialog box display on or off. Refer to OPTION Dialog Box on page B-7 for detailed information about the dialog box parameters. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 191: Figure B-3: Option Dialog Box
Arranges the editing windows so that they overlap each other. Tile Arranges the editing windows so that they do not overlap each other. Arrange Icons When the editing windows are minimize, arranges their title bars. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 192: Table B-7: Remux View Menu Commands
Remux Mode dialog box shown in Figure B-2 on page B-5. 2. Select Make S-TMCC TS in the dialog box, and then click the OK button to open the editing window for the Make S-TMCC TS mode shown in Figure B-4. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 193: Figure B-4: Editing Window For The Make S-Tmcc Ts Mode
3. Select Edit > Add or click the + (Add) button on the toolbar to open the Open dialog box. 4. In the dialog box, select a transport stream file, and then click the Open button to open the Edit TS Information dialog box shown in Figure B-5. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 194: Figure B-5: Edit Ts Information Dialog Box
HQ level. LQ: Specifies the modulation system and the number of slots to be assigned to LQ level. This field is enabled only when the hierarchical control descriptor exists in PMT. RTX130A QAM & VSB RF Signal Generator User Manual B-10...
Page 195: Figure B-6: Windows Displaying A Transport Stream Icon
The information displayed to the right of the transport stream icon has the following meaning: Transport Number of File name Transport Stream number super frames stream ID Effective time of the Number of transport stream contract slots RTX130A QAM & VSB RF Signal Generator User Manual B-11...
Page 196: Figure B-7: Edit Tmcc Information Dialog Box (S-Tmcc
8. Select ReMux > Execute or click the (Execute) button to open the Save As dialog box. 9. In the dialog box, specify a file name, and then click the Save button. RTX130A QAM & VSB RF Signal Generator User Manual B-12...
Page 197: Figure B-8: Editing Window For The Remux To M-Tmcc Ts From
Open button to open the Edit TS Information dialog box shown in Figure B-5 on page B-10. If you select a transport stream file that does not have S-TMCC structure, NOTE. an error message appears. RTX130A QAM & VSB RF Signal Generator User Manual B-13...
Page 198: Figure B-9: Transport Stream Is Multiplexed
This multiplexes the newly selected transport stream and the transport stream icon is added in the window (See Figure B-9). Figure B-9: Transport stream is multiplexed 9. If you want to multiplex more transport streams, repeat steps 6 through 8. RTX130A QAM & VSB RF Signal Generator User Manual B-14...
Page 199: Figure B-10: Edit Tmcc Information Dialog Box (M-Tmcc
Extended Information: Sets the extended information. When you set the Flag (extension flag) item to 1, the Field item becomes active. 11. After you change the parameters, click the OK button to confirm the changes and close the dialog box. RTX130A QAM & VSB RF Signal Generator User Manual B-15...
Page 200: Figure B-11: Add Tmcc Dialog Box
Figure B-11: Add TMCC dialog box In this dialog box, you can specify the transport stream to which the new TMCC information is inserted if more than one transport stream is multiplexed. RTX130A QAM & VSB RF Signal Generator User Manual B-16...
Page 201 21. Select ReMux > Execute or click the (Execute) button to open the Save As dialog box. 22. In the dialog box, specify a file name, and then click the Save button. RTX130A QAM & VSB RF Signal Generator User Manual B-17...
Page 202: Figure B-12: Editing Window For The Remux To M-Tmcc Ts Mode
4. In the dialog box, select a transport stream file, and then click the Open button to open the Edit TS Information dialog box shown in Figure B-5 on page B-10. RTX130A QAM & VSB RF Signal Generator User Manual B-18...
Page 203 This subsection describes the procedure to de-multiplex the original transport stream from a transport stream of M-TMCC structure. 1. Select ReMux > DeMux or click the DeMux M-TMCC TS button on the toolbar to open the Open dialog box. RTX130A QAM & VSB RF Signal Generator User Manual B-19...
Page 204: Figure B-13: Editing Window For The Demux M-Tmcc Ts Mode
If you select a transport stream file that does not have M-TMCC structure, NOTE. an error message appears. 3. Select ReMux > Execute or click the (Execute) button to open the DEMUX dialog box shown in Figure B-14. RTX130A QAM & VSB RF Signal Generator User Manual B-20...
Page 205: Figure B-14: Demux Dialog Box
4. After you select the directory and transport stream(s), click the OK button. The transport stream(s) will be de-multiplexed and saved to the directory. RTX130A QAM & VSB RF Signal Generator User Manual B-21...
Page 206 Appendix B: Using the ReMux Application RTX130A QAM & VSB RF Signal Generator User Manual B-22...
Page 207 PC and play or record streams. Refer to Installing Scheduler on a PC on page C-23 for the installation procedure. When RF Output of the RTX130A is set to On, be sure to select Custom in NOTE. the Playout Properties field in the Play Properties dialog box and set the bit rate to be the same bit rate that is calculated from the RF parameters (this value is displayed on the status bar).
Page 208: Figure C-1: Scheduler Application Window (Schedule Play Mode)
The menu bar displays the names of the pull-down menus. Refer to Using the Menu Bar Scheduler Menus on page C-5 for detailed information about the functions available in the menus. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 209: Table C-1: Toolbar Button Descriptions
Equivalent to the Play command in the Schedule menu. Record Equivalent to the Record command in the Schedule menu. Execute Equivalent to the Execute command in the Schedule menu. Connect Equivalent to the Connect command in the Schedule menu. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 210 The status bar displays a short explanation of the currently selected command and Status Bar information related to the operation. You can toggle the status bar display on and off using the Status Bar command in the View pull-down menu. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 211: Table C-2: File Menu Commands
Toggles the display of the Status bar on and off in the application window. A check mark precedes the command in the menu when the status bar is selected for display. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 212: Figure C-2: Mtx/Rtx Host Name Dialog Box
Schedule menu, the MTX/RTX Host Name dialog box appears as shown in Figure C-2. Figure C-2: MTX/RTX Host Name dialog box Host Name: Selects the host name of the RTX130A to which Scheduler is connected. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 213: Figure C-3: Scheduler Settings Dialog Box
If you clear the Auto playout packet size check box, the Set button becomes available. When you click the Set button, the Set Custom Clock dialog box appears. In this dialog box, you can set the appropriate packet size. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 214 Enabled check box in the Continuous Time Stamping field to deselect the check box. If you play streams that have different bit rates using the Seamless Play mode, the Fixed ES Rate setting in the RTX130A does not work properly. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 215: Table C-5: Stream Menu Commands
Local lock out: Sets whether the front-panel lockout function is enabled or not. When it is checked, all front-panel buttons are disabled. Port: Sets the port number of the RTX130A to which Scheduler is connected. The default value is 49152.
Page 216: Figure C-4: Play Properties Dialog Box
Figure C-4: Play Properties dialog box File: Show the name and location of the stream. Content: Shows the content of the stream. File Size: Shows the file size of the stream in bytes. RTX130A QAM & VSB RF Signal Generator User Manual C-10...
Page 217 Format: Shows the setting unit of the start and stop positions of the stream. It shows Packets for a transport stream file, SF (super frame) for a M-TMCC file, and Bytes for a Non TS file. RTX130A QAM & VSB RF Signal Generator User Manual C-11...
Page 218 When you select this option, the Set button becomes available. Click the Set button, and then set the appropriate bit rate and packet size in the resulting Set Custom Clock dialog box. RTX130A QAM & VSB RF Signal Generator User Manual C-12...
Page 219: Figure C-5: Save As Dialog Box
Appendix C: Using the Scheduler Application (Option SC Only) When RF Output of the RTX130A is set to On, be sure to select Custom and NOTE. set the bit rate to be the same bit rate that is calculated from the RF parameters (this value is displayed on the status bar).
Page 220: Figure C-6: Record Properties Dialog Box
If the trigger does not occur within a specified time, the subsequent stream NOTE. will be recorded. TIME: The stream record starts at an absolute time. When you select this option, spin boxes to set date and time become available. RTX130A QAM & VSB RF Signal Generator User Manual C-14...
Page 221: Figure C-7: Status/Control Panel (Schedule Play Mode)
Record button: Starts the schedule recording. This button is displayed in the schedule record mode. Stop button: Stops the schedule playing or recording. Schedule list button: Closes the status/control panel. RTX130A QAM & VSB RF Signal Generator User Manual C-15...
Page 222: Figure C-8: Schedule Property Dialog Box
Trigger Fall: The schedule playing or recording starts on the falling edge (high to low transition) of the trigger signal applied to the TRIG IN connector. When you select this option, spin boxes to set date and time become available. RTX130A QAM & VSB RF Signal Generator User Manual C-16...
Page 223 Absolute: The schedule playing or recording stops immediately at the specified date and time. When you select this option, spin boxes to set date and time become available. RTX130A QAM & VSB RF Signal Generator User Manual C-17...
Page 224 7. In the Miscellaneous tab, set the loop mode, the local lock out status, and the port number. The port number needs to be the same port number as the RTX130A. RTX130A QAM & VSB RF Signal Generator User Manual C-18...
Page 225 Schedule playout timing is determined by the Active Schedule setting in the Schedule Playout Timing Schedule Property dialog box and the Start Time setting in the Play Properties dialog box. RTX130A QAM & VSB RF Signal Generator User Manual C-19...
Page 226 This does not affect the preceding streams. If there is an inconsistent time setting between the Schedule Property and NOTE. Play Properties dialog boxes or between two streams, an error message appears. RTX130A QAM & VSB RF Signal Generator User Manual C-20...
Page 227 Schedule Record Mode recorded and record an input stream continuously on the hard disk drive of the RTX130A. You can set record properties for each stream, and record up to 256 stream files. Perform the following procedure to create a schedule list and record streams.
Page 228 End times in a schedule list. Any discontinuity may be caused by streams that have different playout properties. In the schedule record mode, the Without Limit feature of the RTX130A is automatically set to on. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 229 Installing Scheduler on a PC This section describes how to install the Scheduler application on your PC. The application is included in the Application Software Recovery CD-ROM (Tektronix part number: 063-3866-XX). Before installing the Scheduler application, check that your PC meets the following...
Page 230 6. Click the Next> button in the Create Shortcut dialog box. The default name of the shortcut icon is now displayed in the dialog box. You can edit the icon name to suit your needs or accept the default name. RTX130A QAM & VSB RF Signal Generator User Manual C-24...
Page 231 Select Scheduler from the Start - Programs menu. When starting Scheduler, the MTX/RTX Host Name dialog box appears as shown below. In this dialog box, you can select an RTX130A to be controlled by Scheduler. After you select the RTX130A, click the OK button.
Page 232 Appendix C: Using the Scheduler Application (Option SC Only) RTX130A QAM & VSB RF Signal Generator User Manual C-26...
Page 233: Figure D-1: Disk Defragmenter Window
1. Connect the keyboard and mouse provided with the instrument to the USB port on the front panel. 2. Select File > Exit in the Play or Record screen to exit the RTX130A application. 3. Select Programs > Accessories > System Tools > Disk Defragmenter from the Start menu.
Page 234: Figure D-2: Defragmentation Complete Dialog Box
Figure D-2. Figure D-2: Defragmentation Complete dialog box 6. Click the Close button. 7. Click the Close button at the upper right of the screen to close the Disk Defragmenter window. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 235 Appendix E: Using the Recovery Discs In the event the RTX130A does not boot, you can reboot the RTX130A by using the recovery discs provided with the instrument. Use the procedures in this appendix to reinstall the Windows XP operating system and the RTX130A application software.
Page 236: Figure E-1: Edit Dword Value Dialog Box
5. Follow the on-screen instructions to complete the installation. Restoring the IEEE1394b Port Speed Setting The IEEE1394 port speed of the RTX130A is set to S400/S800 at the factory. However, when you reinstall the Windows XP operating system, this setting returns to the default value (S400).
Page 237 2. Remove remaining dirt with a lint-free cloth dampened with a general purpose detergent-and-water solution. Do not use abrasive cleaners. 3. Clean the monitor screen with a lint-free cloth dampened with a gentle, general purpose detergent-and-water solution. RTX130A QAM & VSB RF Signal Generator User Manual...
Page 238 Appendix F: Inspection and Cleaning RTX130A QAM & VSB RF Signal Generator User Manual...
Page 239 DVB (Digital Video Broadcast) A project group of the European Broadcasting Union (EBU). DVB-MG Digital Video Broadcasting - Measurement Guidelines. RTX130A QAM & VSB RF Signal Generator User Manual Glossary-1...
Page 240 A receiving decoder that can automatically configure itself using the MPEG-2 Program Specific Information (PSI). ISDB-T (Integrated Services Digital Broadcasting-Terrestrial) The Japanese broadcasting standard developed by ARIB. In ISDB-T, the television, radio, and data services are covered by one standard. RTX130A QAM & VSB RF Signal Generator User Manual Glossary-2...
Page 241 A set of tables described by the MPEG-2 standard. The PSI contains all of the tables that define the MPEG-2 transport stream. It consists of the PAT, PMT, CAT, and NIT tables. (NIT is also used for DVB-SI.) PSIP Program and System Information Protocol. RTX130A QAM & VSB RF Signal Generator User Manual Glossary-3...
Page 242 T-STD (Transport Stream System Target Decoder) Described by the MPEG-2 standard, the T-STD is a hypothetical reference model of a decoding process used to define the semantics of a TS. RTX130A QAM & VSB RF Signal Generator User Manual Glossary-4...
Page 243 Index Numerics Hard disk, 2-15 RAM, 2-15 DATA_SECT icon, 3-48 10 key pad, 2-13 DCT icon, 3-49 Default settings, 3-105 DISPLAY commands, 3-80 Display elements, 2-6 Displaying the Windows screen, 1-11 DIT icon, 3-49 AC line voltage requirement, 1-6 DLT icon, 3-49 ADFERR icon, 3-49 DSM_CC icon, 3-48 Arguments...
Page 244 Index Hierarchy display icons, 3-36 PCR icon, 3-46 PCR Inaccuracy dialog box, 3-46, 3-51 PCR Initial Value dialog box, 3-11 Performance conditions, A-1 PIT icon, 3-49 PLAY button, 2-2 Icon cursor, 2-8 PLAY commands, 3-82 IEEE 488.2 common commands, 3-75 Play menu, 3-5 IEEE1394b connector, 2-5 Play Properties dialog box, C-10...
Page 245 Index menus, C-5 Schedule menu, C-6 Schedule play mode, C-18 USB connectors, 2-1 Schedule record mode, C-21 Utility menu, 3-23 Stream menu, C-9 tutorials, C-18 View menu, C-5 SCPI abbreviating, 3-73 chaining commands, 3-73 VGA connector, 2-5 commands, 3-71 VIDEO icon, 3-47 general rules, 3-74 VIDEO_H264 icon, 3-47 parameter types, 3-72...
Page 246 Index MTX130A QAM & VSB RF Signal Generator User Manual Index-4...

Tektronix RTX130A User Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tektronix RTX130A

Summary of Contents for Tektronix RTX130A

Table of Contents
