Operating Basics
2-8
Toolbar. The toolbar provides shortcut buttons for many of the most often used
menu commands. Click a toolbar button to select the corresponding command.
You can toggle the toolbar display on and off using Toolbar command in the View
menu.
Refer to Toolbar Buttons on page 3-32 for detailed information about the function
of each toolbar button.
Hierarchy Display. Each icon in the hierarchy display represents an element of the
stream. The hierarchy text contains a description of the associated icon.
Refer to Hierarchy Display on page 3-35 for detailed information about the
hierarchy icons.
Icon Cursor. The icon cursor appears as a red box around an icon in the hierarchy
to indicate the currently selected icon.
Use the up ( ) or down ( ) arrow button to move the icon cursor between icons.
When the icon cursor is at the top or bottom of the hierarchy display, the hierarchy
scrolls to show additional elements of the stream when applicable.
Play/Record Status Indicator. The play status indicator (see Figure 2-4) is displayed
while the selected stream is being output. It shows the output status of the selected
stream: the progress of the stream output, the output source, the operational status,
and the elapsed time.
The record status indicator is displayed while the input stream is being recorded. It
shows the record status of the input stream: the progress of the stream record, the
record target, and the elapsed time.
1

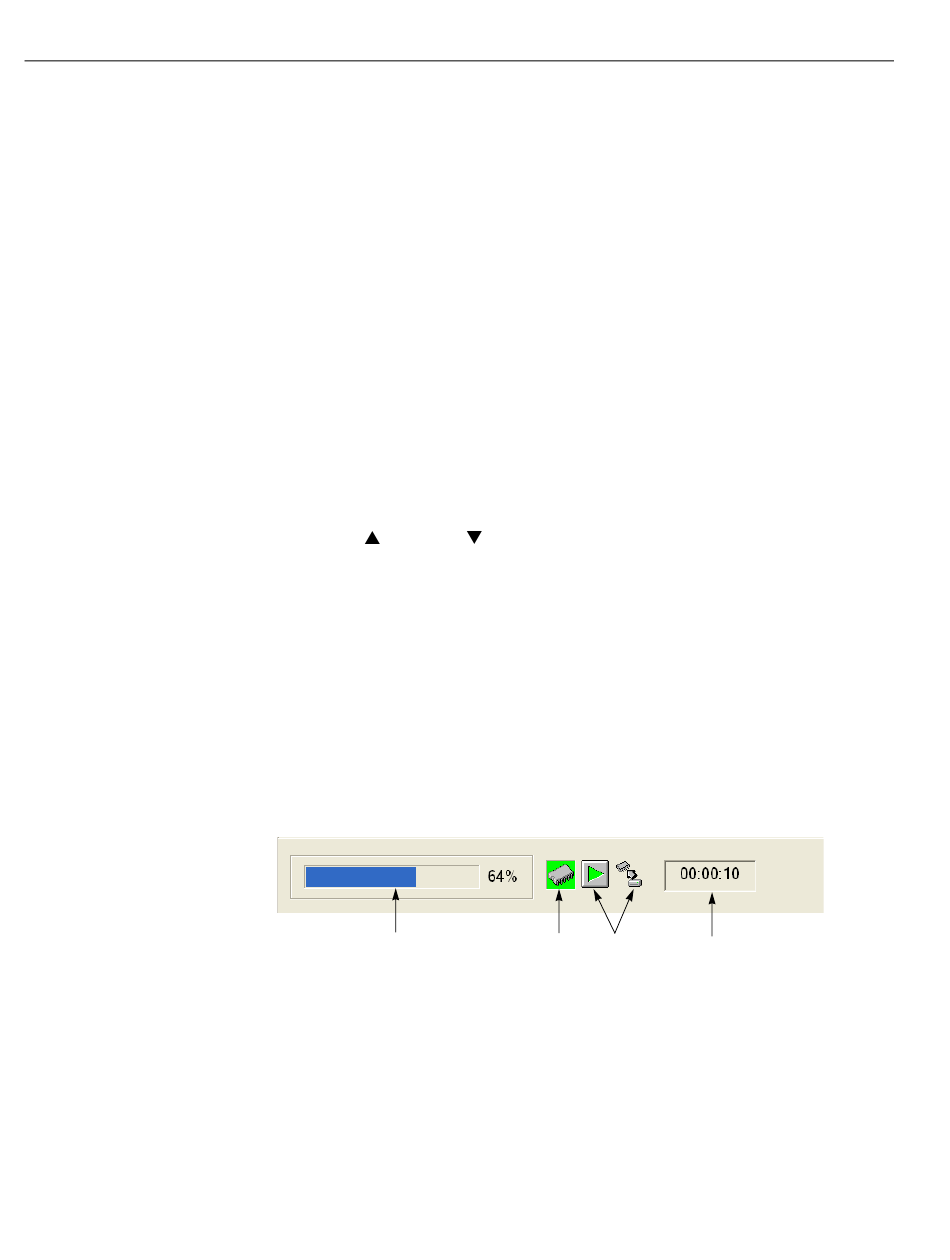

Figure 2-4: Play status indicator

The play/record status indicator shows the following information:
1. Position Indicator. In the Play screen, this indicator shows the progress of the
stream output using the duration gauge. In the Record screen, this indicator
shows the progress of the stream record using the duration gauge.
RTX130A QAM & VSB RF Signal Generator User Manual
2 3
4
