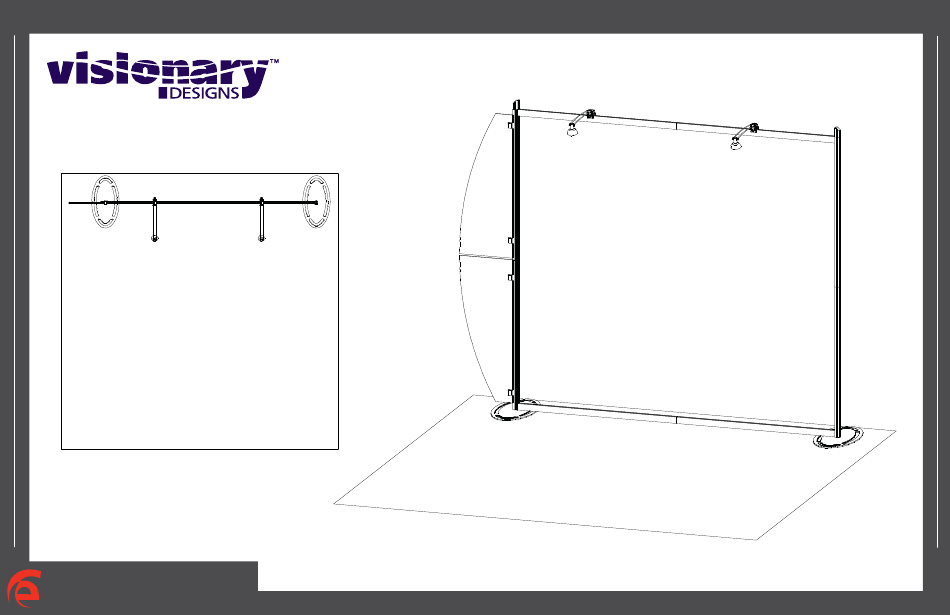

- Page 1 Step 1 Order #xxxxx - Sacagawea - VK-1201 - General Layout 866.652.2100 10’ Plan View 10’ WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2009 w w w . c l a s s i c e x h i b i t s . c o m Page 1 of 2...
- Page 2 Step 2 Order #xxxxx - Sacagawea - General Information 866.652.2100 Using Your Setup Instructions The Visionary Designs Setup Instructions are created specifically for your Detail A configuration. They are laid out sequentially, including an exploded view of the entire display, and then a logical series of detailed steps to assemble the main structure and components.
- Page 3 Step 1 Order #xxxxx - Sacagawea - Backwall Assembly 866.652.2100 Steps: Item Qty. Description 1) Attach vertical extrusions [2] to base plates [1]. Base Plate 2) Attach upper vertical extrusions [3 and 3a] to lower extrusions [2 and 2a] 42”h Lower Square Vertical Extrusion using connection bar [a].
- Page 4 Step 2 Order #xxxxx - Sacagawea - Wing Attachment 866.652.2100 Wing Attachment Slide A10 Clamp into groove of square extrusion. When desired location is found, tighten set screw to secure. Set- Screw Tighten black plastic set screw to secure Wing in place. Black Plastic Set-screw *Note:...
- Page 5 Order #xxxxx - Case Packing Instruction 866.652.2100 (1) Backwall Components Setup Hardware Lights Wing Panels Graphic Level 3 Level 1 Level 2 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2009 w w w . c l a s s i c e x h i b i t s . c o m...
