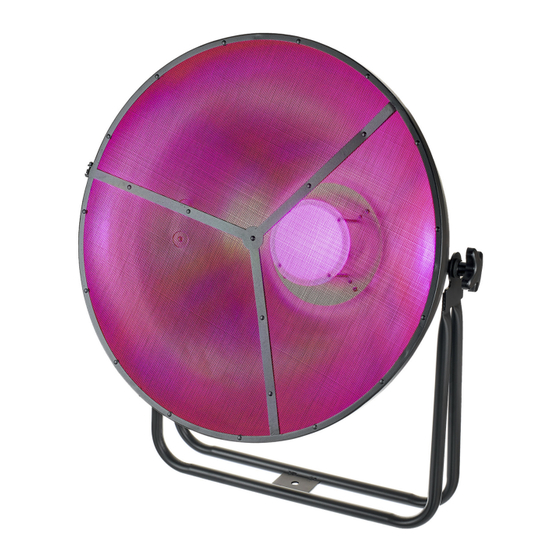

- Page 1 LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 26.04.2022, ID: 472342, 472343 (V2)
-
Page 3: Table Of Contents
Connections and operating elements................... 22 Operating..............................25 7.1 Starting the device........................... 25 7.2 Main menu............................25 7.3 Menu overview..........................32 7.4 Functions in 4-channel DMX mode................... 33 7.5 Functions in 6-channel DMX mode................... 33 LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR... - Page 4 Table of Contents 7.6 Functions in 8-channel DMX mode................... 35 Technical specifications........................38 Plug and connection assignments....................41 Troubleshooting............................42 Cleaning............................... 44 Protecting the environment......................45 LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
- Page 5 LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
-
Page 6: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR... -
Page 7: Further Information
Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR... -
Page 8: Notational Conventions
Examples: ‘24ch’ , ‘OFF’ . 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR... - Page 9 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – dangerous optical radiation. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
- Page 10 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
-
Page 11: Safety Instructions
Extend the operating life of the device by regular breaks and by avoiding frequent switching on and off. The device is not suitable for continuous operation. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR... - Page 12 Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician. WARNING! Eye damage caused by high light intensity Never look directly into the light source. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
- Page 13 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
-
Page 14: Features
For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR... -
Page 15: Installation
Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR... - Page 16 When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
- Page 17 Always work from a stable platform whenever installing, moving or servicing the unit. In doing so, the area underneath the unit must be cordoned off. The safety rope must be attached to the safety rope eyelet on the back of the device. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
- Page 18 Installation Please note that this device must not be connected to a dimmer. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
-
Page 19: Starting Up
Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR... - Page 20 Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
- Page 21 Connect the DMX output of the master device to the DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
-
Page 22: Connections And Operating Elements
Connections and operating elements Connections and operating elements Rear panel ö POWER IN POWER OUT DMX IN DMX OUT & LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR... - Page 23 5 Double bracket for floor placement or hanging 6 Display 7 Operating buttons on the unit Calls up the main menu or a submenu Increases or decreases the displayed value by one LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
- Page 24 Connections and operating elements [OK] Confirms a selected value 8 [DMX OUT] DMX output, designed as XLR panel socket, 3-pin 9 [DMX IN] DMX input, designed as XLR panel plug, 3-pin LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
-
Page 25: Operating
If you don't press any button for about 1 minute, the unit returns to the previously selected mode. The set values are retained even when the device is disconnected from the mains power supply. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR... - Page 26 This setting is only relevant when the device is controlled via DMX. When the display shows the desired value press [OK] to confirm the selection and then [M] to return to the parent menu. To return to the parent menu without making changes, press [M]. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
- Page 27 Make sure that this number matches the configuration of your DMX controller. The following table shows the highest possible DMX address for the various DMX modes. Mode Highest possible DMX address 4-channel 6-channel 8-channel LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
- Page 28 DMX. When the display shows the desired value press [OK] to confirm the selection and then [M] to return to the parent menu. To return to the parent menu without making changes, press [M]. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
- Page 29 This setting is only relevant if the device is not controlled via DMX. When the display shows the desired value press [OK] to confirm the selection and then [M] to return to the parent menu. To return to the parent menu without making changes, press [M]. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
- Page 30 This setting is only relevant if the device is not controlled via DMX. When the display shows the desired value press [OK] to confirm the selection and return to the main menu. To return to the main menu without making changes, press [M]. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
- Page 31 This setting is only relevant if the device is not controlled via DMX. When the display shows the desired value press [OK] to confirm the selection and return to the main menu. To return to the main menu without making changes, press [M]. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
-
Page 32: Menu Overview
MODE F-01 C-01 A001 R000 P-01 F-07 C-04 A512 R255 P-42 GREE G000 SPEE T000 A001 G255 BLUE B000 T255 A512 B255 AMBE A000 M-01 A255 M-30 STRO S-00 S-24 LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR... -
Page 33: Functions In 4-Channel Dmx Mode
Intensity amber (0 % to 100 %) 7.5 Functions in 6-channel DMX mode Channel Value Function Operating mode selection 0…63 Constant colour, the hue is set by channels 2 to 5 LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR... - Page 34 Intensity amber (0 % to 100 %), if channel 1 = 0…63 Effects speed 0…10 No automatic colour change 11…100 Automatic colour change as set by channel 1, decreasing speed from fast to slow LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
-
Page 35: Functions In 8-Channel Dmx Mode
Intensity Blue (0 % to 100 %), if channel 5 = 0…15 and channel 7 = 0…31 0…255 Intensity amber (0 % to 100 %), if channel 5 = 0…15 and channel 7 = 0…31 Fixed colour pattern 0…15 No function LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR... - Page 36 160…191 Chase (4 colours), speed controlled by channel 6, channels 1 to 5 without function 192…223 Chase (12 colours), speed controlled by channel 6, channels 1 to 5 without function LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
- Page 37 Operating Channel Value Function 224…255 Sound control 0…255 Dimmer (0 % to 100 %) LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
-
Page 38: Technical Specifications
Power supply Lockable output socket (Power Twist) DMX control XLR chassis socket, 3-pin Power consumption 60 W 40 W Supply voltage 100 - 240 V 50/60 Hz Degree of protection IP20 LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR... - Page 39 310 mm × 430 mm × 200 mm (incl. bracket) (incl. bracket on top) Weight 8.2 kg 2.9 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
- Page 40 LED Vintage Bowl 50 RGBA LED Vintage Bowl 30 RGBA Item no. 472342 Item no. 472343 Construction illuminated reflector illuminated reflector Colour mixture RGBA RGBA Stand-alone function Rechargeable battery operation LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
-
Page 41: Plug And Connection Assignments
The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR... -
Page 42: Troubleshooting
Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR... - Page 43 DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
-
Page 44: Cleaning
Clean with a soft cloth using our lamp and lens cleaner (item no. 280122). Always dry the parts carefully. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR... -
Page 45: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR... - Page 46 Notes LED Vintage Bowl50 RGBA LED Vintage Bowl30 RGBA LED PAR...
- Page 48 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
