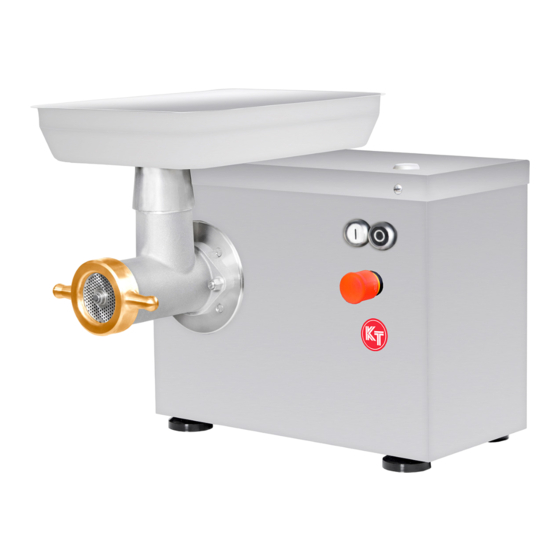

Meat mincer
Metos LM-5/P
4221321
User manual
14.03.2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM-5/P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metos LM-5/P

Summary of Contents for Metos LM-5/P

  • Page 1 Meat mincer Metos LM-5/P 4221321 User manual 14.03.2011...
  • Page 2 MEAT GRINDER USER MANUAL Warning! KT-meat grinder LM-5/P is especially designed to grind liver and meat. This machine is capable of inflicting damage to the user, unless the right safety precautions are observed. Therefore, it is important that utmost care is taken when using this machine.

  • Page 3: Table Of Contents

    LM-5/P CONTENTS 1. Introduction ..........3 1.1 Technical specifications ......3 2. General description ........3 3. Unpacking ............ 4 4. Installation ........... 4 4.1 Location ..........4 4.2 Electrical connection ......5 4.2.1 Direction of rotation ....... 5 4.2.2 Switch diagram ....... 5 5.

  • Page 4: Introduction

    This manual refers to the following model: LM-5/P Meat grinder LM-5/P is designed to grind fresh liver and small amount of meat. Meat grinder has been constructed following the KT product development methods. The operation of the grinder is quiet and it is easy to dismantle for cleaning purposes.

  • Page 5: Unpacking

    LM-5/P Picture 1 3. Unpacking The meat grinder may be stored in the cold store. All models must be thoroughly cleaned before usage. See chapter 6.1 for the recommended cleaning agents. The meat grinder is delivered with feeding equipment dismantled. The installation of the feeding equipment is dealt in chapter 6.3.

  • Page 6: Electrical Connection

    LM-5/P 4.2 Electrical connection Please note 1. Ensure that the voltage corresponds with the voltage marked on the rating label. 2. The machine must be CORRECTLY EARTHED. 3. Only an authorized electrician may carry out the servicing work. 4. Ensure that the electrical supply has been disconnected before any electrical connections are made, or maintenance or adjusting work is carried out.

  • Page 7: Operation

    LM-5/P 5. Operation 5.1 Safety 5.1.1 Safety measures The importance of following safety procedures in the operation of industrial meat grinders cannot be over-stressed. Meat grinders are capable of inflicting bodily damage to operators. However by using common sense and being careful, as well as following all safety measures in the operation of meat grinders, the operator will get the best possible performance out of this versatile machine, and minimize the of accidents.

  • Page 8: During Use

    LM-5/P 5.1.3 During use Keep a check on the quality of the product. If the product does not flow out properly or if it has a porridge-like consistency, check the blade and the hole plate. Worn components should be replaced. See chapters 6.2 and 6.3, dismantling and reassembly of the blade assembly 5.1.4 After use...

  • Page 9: Recommended Detergents

    LM-5/P 6.1 Recommended detergents For example the following detergent may be used when washing the machine: Kärcher RM 81 Recommended disinfectants: Kärcher RM 32, RM 35 Regardless of detergent or method used, ensure that you observe the manufacturer's instructions. Observe the recommended concentrations and soaking times to avoid damaging your meat grinder.

  • Page 10: Reassembly

    LM-5/P 6.3 Reassembly 1. Mount the grinding house onto the grinder. When installing the grinding house, ensure that the housing is properly inserted into the flange (Picture 4, No. 16) of the grinder. 2. Tighten the nuts (No. 3) with a wrench (clockwise).

  • Page 11: Maintenance

    LM-5/P 7. Maintenance In addition to daily cleaning the meat grinder does not require much maintenance. Worn components must be replaced when needed (stud, blades, hole plates). The hole plate must be over 5 mm thick. If needed, the hole plate must be replaced.

  • Page 12: Appendix 1. Switch Diagram

    LM-5/P APPENDIX 1. Switch diagram 14.03.2011...
  • Page 15 The crossed-out wheeled bin means that within the European Union the product must be taken to separate collection at the product end-of life. This applies to your device but also to any enhancements marked with this sym- bol. Do not dispose of these products as unsorted municipal waste.
