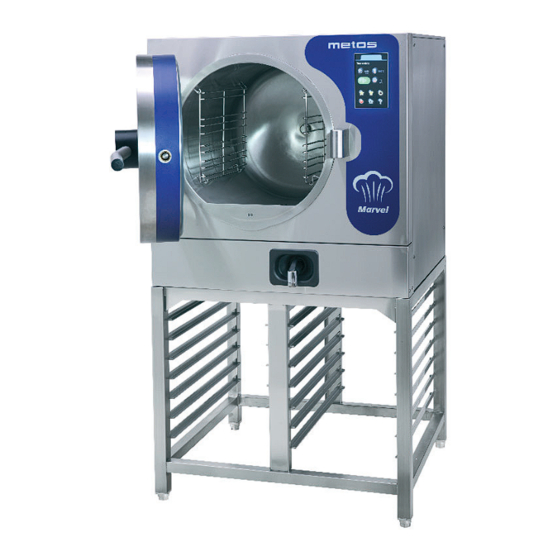

- Page 1 STEAMER MARVEL T Type: E1 Installation and Operation Manual Rev. 1.1. 18.4.2023 From 1.6.2020 MG4222860, MG4222861...
-
Page 2: Table Of Contents
METOS MARVEL T Rev. 1.1. 18.4.2023 SISÄLLYSLUETTELO General ......................4 1.1. Symbols used in the manual ................4 1.2. Symbols used on the appliance ..............4 1.3. Checking the relationship of the appliance and the manual ......5 Safety Instructions ..................6 2.1. - Page 3 METOS MARVEL T Rev. 1.1. 18.4.2023 Adjustment instructions ................29 4.1. Changing the settings ................... 29 4.1.1. Language ...................... 29 4.1.2. Date and time ....................30 4.1.3. Program version .................... 30 4.2. Changing the settings, ”master chef” ............31 4.2.1. Language ...................... 31 4.2.2.
-
Page 4: General
METOS MARVEL T General Rev. 1.1. 18.4.2023 General Carefully read the instructions in this manual as they contain important informa- tion regarding proper, effi cient and safe installation, use and maintenance of the appliance. Keep this manual in a safe place for eventual use by other operators of the ap- pliance. -
Page 5: Checking The Relationship Of The Appliance And The Manual
METOS MARVEL T General Rev. 1.1. 18.4.2023 1.3. Checking the relationship of the appliance and the manual The rating plate of the appliance indicates the serial number of the appliance. If the manuals are missing, it is possible to order new ones from the manufac- turer or the local representative. -
Page 6: Safety Instructions
METOS MARVEL T Safety Instructions Rev. 1.1. 18.4.2023 Safety Instructions 2.1. General The appliance is CE marked, which means that it complies with the require- ments of the EU machinery directive with regard to product safety. Product safety means that the design of the appliance will prevent personal injury or damage to property. -
Page 7: Changing The Settings And Adjustments
METOS MARVEL T Safety Instructions Rev. 1.1. 18.4.2023 2.2. Changing the settings and adjustments Technical adjustments to the appliance must be performed by a qualifi ed and well trained person. 2.3. Safety instructions in the event of malfunction In case of a serious emergency, all functions of the appliance must be stopped STOP by turning the mains switch to the OFF position. -
Page 8: Operation Instructions
3.1. General 3.1.1. Intended use of the appliance Metos Marvel T is a steamer for cooking, warming up processed and conve- nience food and defrosting frozen food with/without pressure. USE OF THE APPLIANCE FOR OTHER PURPOSES THAN STATED ABOVE IS STOP PROHIBITED. -
Page 9: Use
METOS MARVEL T Operation instructions Rev. 1.1. 18.4.2023 3.3. Use In order to avoid burns: • Notice that the top cover and the chamber door gets hot during long time operation. • Beware of discharging steam and the hot surface of the inside of the door when opening the chamber door •... -
Page 10: Buttons On The Control Touch Screen
METOS MARVEL T Operation instructions Rev. 1.1. 18.4.2023 3.3.1. Buttons on the control touch screen Cooking time. Push the button to set the desired cooking time. If time cooking is selected, the cooking ends after set time. Cooking temperature. Push the button to set the desired cooking tem- perature. -
Page 11: Start
METOS MARVEL T Operation instructions Rev. 1.1. 18.4.2023 3.3.2. Start Connect the appliance to the mains, open the feed water tap. Push the power button when the appliance is in stand- by mode. The appliance starts and fi lls the steam generator if needed and warms up. - Page 12 METOS MARVEL T Operation instructions Rev. 1.1. 18.4.2023 Possible error situations and messages at start up • Water tap closed. -> Make sure that the feed water tap is open • Advice to carry out a safety valve test -> See ”Regular maintenance. You can also reset this notifi cation and con-...
-
Page 13: Cooking
METOS MARVEL T Operation instructions Rev. 1.1. 18.4.2023 3.3.3. Cooking Place the foodstuff into perforated pans or if you wish to retain the cooking juice use non-perforated pans. Place ready meals on grids and cover them with lids to avoid excessive moisture absorption. - Page 14 METOS MARVEL T Operation instructions Rev. 1.1. 18.4.2023 Opening and closing the door Door locked Door unlocked Closing the door Opening the door 1. Close the door by pushing the 1. Turn the handle to horizontal position handle 2. Push the handle 3.
- Page 15 METOS MARVEL T Operation instructions Rev. 1.1. 18.4.2023 Timed cooking 1. Set the cooking time • Push and set the time using the number buttons. Push the OK -button to confi rm. (for details see ”Set- ting the cooking time and temperature”) 2.
- Page 16 METOS MARVEL T Operation instructions Rev. 1.1. 18.4.2023 Cooking using the core temperature probe (option) 1. Set the core temperature • Push and set the temperature using the number buttons. Push the OK -button to confi rm. (for details see ”Setting the cooking time and temperature”) 2.
- Page 17 METOS MARVEL T Operation instructions Rev. 1.1. 18.4.2023 Cooking using Delta-T temperature 1. Set the core temperature • Push and set the temperature using the number buttons. Push the OK -button to confi rm. (for details see ”Setting the cooking time and temperature”) 2.
- Page 18 METOS MARVEL T Operation instructions Rev. 1.1. 18.4.2023 Using an existing cooking program If cooking programs have not yet been created, proceed to section 3.3.6. 1. Select a cooking program by pushing the -button whereupon the screen will show the program page. Browse programs by scrolling the page with your fi...
-
Page 19: Setting The Cooking Time And Temperature
METOS MARVEL T Operation instructions Rev. 1.1. 18.4.2023 3.3.4. Setting the cooking time and temperature Setting the cooking time Push the time button whereupon the the screen will show the set cooking time page. Push the desired fi eld (hours, minutes or seconds) and set the time using the number but- tons. - Page 20 METOS MARVEL T Operation instructions Rev. 1.1. 18.4.2023 Setting the Delta-T -temperature If the core temperature probe is in use you can set either the • Chamber temperature or the • Delta-T temperature. This constantly keeps the chamber temperature the delta-T value higher than the set core tem- perature.
-
Page 21: Selecting An Existing Cooking Program
METOS MARVEL T Operation instructions Rev. 1.1. 18.4.2023 3.3.5. Selecting an existing cooking program Select an existing cooking program by pushing the -button whereupon the screen will show the program page. Browse programs by scrolling the page with your fi nger. A star... - Page 22 METOS MARVEL T Operation instructions Rev. 1.1. 18.4.2023 Editing a program • Select the program according to the previous • Push the program name frame to edit the program name, in this example . (See also ”Adding/editing a program name”).
- Page 23 METOS MARVEL T Operation instructions Rev. 1.1. 18.4.2023 Adding/editing a program name • Push the -button toggle between lowercase uppercase and uppercase hold letters. • Push the backspace button to erase characters. • Push the special characters button for numbers and special characters.
- Page 24 METOS MARVEL T Operation instructions Rev. 1.1. 18.4.2023 Selecting favorite pages • Push the edit button to edit the favorite page name. • Push the star button to select or unselect the pro- gram for the favorite page. • Push the OK -button to confi...
-
Page 25: Cooking Instructions
METOS MARVEL T Operation instructions Rev. 1.1. 18.4.2023 3.3.7. Cooking instructions Raw material Container Container Total charge Cooking time /compartm. (min) charge water (kg) (kg) 0 bar 0,5 bar 1 bar Fresh vegetables Potato whole GN 1/1-100mm p) 20-25 15-20... - Page 26 METOS MARVEL T Operation instructions Rev. 1.1. 18.4.2023 Raw material Container Container Total charge Cooking time /compartm. (min) charge water (kg) (kg) 0 bar 0,5 bar 1 bar Fruit Pealed oranges GN 1/1- 65mm p) Apple 1/2 GN 1/1- 65mm p) Using low temperature 65-120°C range...
-
Page 27: After Use
METOS MARVEL T Operation instructions Rev. 1.1. 18.4.2023 3.4. After use 3.4.1. General Stainless steel is composed of iron, chrome and nickel. Together with oxygen from the air chrome forms an oxide layer on the stainless steel surface which protects from corrosion. -
Page 28: Periodic Measures
METOS MARVEL T Operation instructions Rev. 1.1. 18.4.2023 5. Dry the chamber using a cloth. 6. Clean the outer surfaces and door seal/seals with a cloth. 7. Clean the runners with a brush. Put them back into the chamber. 8. Leave the doors ajar for ventilation and to avoid unnecessary fl attening of the door seals 3.4.3. -
Page 29: Adjustment Instructions
METOS MARVEL T Adjustment instructions Rev. 1.1. 18.4.2023 Adjustment instructions 4.1. Changing the settings The following settings can be altered without logging: • Language • Time and date • Software version (info) Browse the settings by scrolling with your fi nger Confi... -
Page 30: Date And Time
METOS MARVEL T Adjustment instructions Rev. 1.1. 18.4.2023 4.1.2. Date and time Select ”time&date” , see ”Changing the settings” Push the date and time buttons to set the correspon- ding value. Set the date and time with the number buttons. -
Page 31: Changing The Settings, "Master Chef
METOS MARVEL T Adjustment instructions Rev. 1.1. 18.4.2023 4.2. Changing the settings, ”master chef” The following settings can be modifi ed when logged in as ”Master chef” . Default log in code for Master chef is ”1234” and it can be changed with the parameters. -
Page 32: Selecting The Cooking Ready Sound
METOS MARVEL T Adjustment instructions Rev. 1.1. 18.4.2023 4.2.2. Selecting the cooking ready sound Select the sound that will be played fi nishing cooking without using cooking program. This selection is used also as default sound for cooking programs, if the program’s cooking ready sound selection is “Default sound”... -
Page 33: Parameters
METOS MARVEL T Adjustment instructions Rev. 1.1. 18.4.2023 4.2.4. Parameters Some of Marvel’s features can be changed by parameters. You have to log in as “Master chef” to change the parameters. Each parameter has the following features: 104: Parameter number Master chef login time out: Parameter description, currently only in English. - Page 34 METOS MARVEL T Adjustment instructions Rev. 1.1. 18.4.2023 105 Master chef login code(fi rst digit non zero) min: 1, max: 999999, def: 1234 This parameter sets the master chef’s login code. Login codes of other users are available only for authorized persons.
-
Page 35: Memory Functions
METOS MARVEL T Adjustment instructions Rev. 1.1. 18.4.2023 4.2.5. Memory functions Insert USB memory To use the memory functions, insert USB memory stick in the connector. USB connector The following memory functions are available when logged in as “Master chef”... -
Page 36: Load Cooking Programs
METOS MARVEL T Adjustment instructions Rev. 1.1. 18.4.2023 4.2.6. Load cooking programs When loading cooking programs from a USB memory and the USB memory contains at least one program with a name that already exists in Marvel. Keep existing Keep the program you already have in Marvel and don’t load the program form USB memory. -
Page 37: Installation
METOS MARVEL T Installation Rev. 1.1. 18.4.2023 Installation 5.1. General Carefully read the instructions in this manual as it contains important information regarding proper, effi cient and safe installation and maintenance of the appliance. The installation of this appliance must be carried out in the accordance with the manufacturers instructions and following local regulations. -
Page 38: Positioning
METOS MARVEL T Installation Rev. 1.1. 18.4.2023 5.3. Positioning The installation is started by moving the steamer exactly to the right installation STOP spot considering a possible fl oor drain. The distances needed are shown in the installation drawing. For servicing space is needed only in front and above the unit. - Page 39 METOS MARVEL T Installation Rev. 1.1. 18.4.2023...
-
Page 40: Electrical Connection
METOS MARVEL T Installation Rev. 1.1. 18.4.2023 5.4. Electrical connection Before making the connection to the mains, ensure that the voltage and fre- quency are as indicated on the appliance rating plate. In order to make eventual future service easier and increase safety a mains switch must be installed near the appliance. -
Page 41: Water Connection And Water And Quality Requirements
METOS MARVEL T Installation Rev. 1.1. 18.4.2023 5.5. Water connection and water and quality requirements The unit is connected to cold water pipeline observing the rules of local water- works. For the connection the unit is equipped with R 1/2” outer thread, a mud sepa- rator and a back pressure valve •... -
Page 42: Extreme Water Conditions
METOS MARVEL T Installation Rev. 1.1. 18.4.2023 5.5.1. Extreme water conditions When extreme water conditions not fulfi lling the requirements above exist, fi l- ters and water treatment devices should be installed in order to ensure proper function of the unit and avoid corrosion. When extreme water conditions are at hand, a water quality analysis must be carried out. -
Page 43: Sewerage
METOS MARVEL T Installation Rev. 1.1. 18.4.2023 5.6. Sewerage At the back of the device there is a Ø 32 mm drainage pipe from which the con- densate is led to the fl oor drain, however absolutely above the water surface (for details see ”Technical specifi... -
Page 44: Technical Information
METOS MARVEL T Technical information Rev. 1.1. 18.4.2023 Technical information Main circuit diagram... - Page 45 METOS MARVEL T Technical information Rev. 1.1. 18.4.2023 Model Chambers CAPACITY 4xGN1/1-65 Temperature range 40°C ... 120°C Connected power (kW) Fuse (A) Voltage (V) Number of phases 3NPE Frequency (Hz) Starting current (A) Enclosure class Water connection 1/2” outer thread, 250...600 kP , min fl...
- Page 46 METOS MARVEL T Technical information Rev. 1.1. 18.4.2023...
- Page 47 METOS MARVEL T Technical information Rev. 1.1. 18.4.2023...
- Page 48 To validate warranty enclosed checklist is to be completed and returned within 14 days from installation/commissioning. This document is to be completed individually for each Metos pressure cooker installation. Please send a copy or photos of this document (DOC000866, 4 pages) to email address: commissioning@metos.com...
- Page 49 All water connections tight and no leakages: ……………………………….. All steam connections tight and no leakages: ……........We reserve all rights in this document and in the information contained therein. Reproduction, use or disclosure to third parties without express authority is strictly forbidden. Copyright 2019 Metos Oy Ab...
- Page 50 (safety valve test executed 4 times/year etc.): Comments: ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ We reserve all rights in this document and in the information contained therein. Reproduction, use or disclosure to third parties without express authority is strictly forbidden. Copyright 2019 Metos Oy Ab...
- Page 51 Revision Description Date Chapter (C) Department Original version 2020-09-07 We reserve all rights in this document and in the information contained therein. Reproduction, use or disclosure to third parties without express authority is strictly forbidden. Copyright 2019 Metos Oy Ab...
- Page 52 Metos Oy Ab Ahjonkaarre FI-04220 Kerava, Finland tel. +358 204 3913 www.metos.com...
