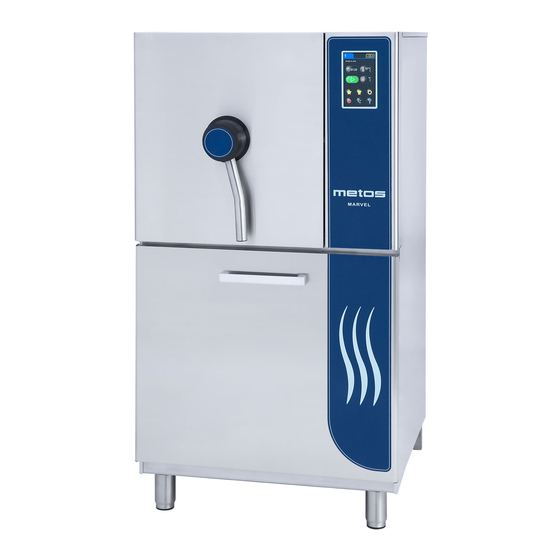

STEAMER
MARVEL
Type: E1, E2
Installation and Operation Manual
Rev. 9.11.2016
From 2.9.2015
4222850, 4222852

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MARVEL E1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metos MARVEL E1

Summary of Contents for Metos MARVEL E1

  • Page 1 STEAMER MARVEL Type: E1, E2 Installation and Operation Manual Rev. 9.11.2016 From 2.9.2015 4222850, 4222852...

  • Page 2: Table Of Contents

    Rev. 9.11.2016 METOS MARVEL TABLE OF CONTENTS General ......................4 1.1. Symbols used in the manual ................4 1.2. Symbols used on the appliance ..............4 1.3. Checking the relationship of the appliance and the manual ......5 Safety Instructions ..................6 2.1.
  • Page 3 Rev. 9.11.2016 METOS MARVEL 4.2. Changing the settings, ”master chef” ............31 4.2.1. Language ...................... 31 4.2.3. Selecting the cooking ready sound ............... 32 4.2.2. Date and time ....................32 4.2.4. Parameters....................33 4.2.5. Memory functions ..................35 4.2.7. Load cooking programs ................36 4.2.6.

  • Page 4: General

    General Rev. 9.11.2016 METOS MARVEL General Carefully read the instructions in this manual as they contain important informa- tion regarding proper, effi cient and safe installation, use and maintenance of the appliance. Keep this manual in a safe place for eventual use by other operators of the ap- pliance.

  • Page 5: Checking The Relationship Of The Appliance And The Manual

    General Rev. 9.11.2016 METOS MARVEL 1.3. Checking the relationship of the appliance and the manual The rating plate of the appliance indicates the serial number of the appliance. If the manuals are missing, it is possible to order new ones from the manufac- turer or the local representative.

  • Page 6: Safety Instructions

    Safety instructions Rev. 9.11.2016 METOS MARVEL Safety Instructions 2.1. General The appliance is CE marked, which means that it complies with the require- ments of the EU machinery directive with regard to product safety. Product safety means that the design of the appliance will prevent personal injury or damage to property.

  • Page 7: Changing The Settings And Adjustments

    Safety instructions Rev. 9.11.2016 METOS MARVEL 2.2. Changing the settings and adjustments Technical adjustments to the appliance must be performed by a qualifi ed and well trained person. 2.3. Safety instructions in the event of malfunction In case of a serious emergency, all functions of the appliance must be stopped STOP by turning the mains switch to the OFF position.

  • Page 8: Operation Instructions

    3.1. General 3.1.1. Intended use of the appliance Metos Marvel is a steamer for cooking, warming up processed and convenien- ce food and defrosting frozen food with/without pressure. USE OF THE APPLIANCE FOR OTHER PURPOSES THAN STATED ABOVE IS STOP PROHIBITED.

  • Page 9: Before Use

    Operating instructions Rev. 9.11.2016 METOS MARVEL 3.2. Before use 3.2.1. Preparations Set the time, date and language (see ”Adjustment instructions”) 3.3. Use In order to avoid burns: • Notice that the top cover and the chamber door gets hot during long time operation.

  • Page 10: Buttons On The Control Touch Screen

    Operating instructions Rev. 9.11.2016 METOS MARVEL 3.3.1. Buttons on the control touch screen Cooking time. Push the button to set the desired cooking time. If time cooking is selected, the cooking ends after set time. Cooking temperature. Push the button to set the desired cooking tem- perature.

  • Page 11: Start

    Operating instructions Rev. 9.11.2016 METOS MARVEL 3.3.2. Start Connect the appliance to the mains, open the feed water tap. Push the power button when the appliance is in stand- by mode. The appliance starts and fi lls the steam generator if needed and warms up.

  • Page 12: Cooking

    Operating instructions Rev. 9.11.2016 METOS MARVEL 3.3.3. Cooking Place the foodstuff into perforated pans or if you wish to retain the cooking juice use non-perforated pans. Place ready meals on grids and cover them with lids to avoid excessive moisture absorption.
  • Page 13 Open Open Open Closed Closed Closed Marvel E2 Marvel E1 Closing the door Opening the door 1. Close the door by pushing the 1. Turn the handle to horizontal position handle 2. Push the handle Close the door slowly if the cham- 3.
  • Page 14 Operating instructions Rev. 9.11.2016 METOS MARVEL Timed cooking 1. Set the cooking time • Push and set the time using the number buttons. Push the OK -button to confi rm. (for details see ”Set- ting the cooking time and temperature”) 2.
  • Page 15 Operating instructions Rev. 9.11.2016 METOS MARVEL Cooking using the core temperature probe 1. Set the core temperature • Push and set the temperature using the number buttons. Push the OK -button to confi rm. (for details see ”Setting the cooking time and temperature”) 2.
  • Page 16 Operating instructions Rev. 9.11.2016 METOS MARVEL Cooking using Delta-T temperature 1. Set the core temperature • Push and set the temperature using the number buttons. Push the OK -button to confi rm. (for details see ”Setting the cooking time and temperature”) 2.
  • Page 17 Operating instructions Rev. 9.11.2016 METOS MARVEL Using an existing cooking program 1. Select a cooking program by pushing the -button whereupon the screen will show the program page. Browse programs by scrolling the page with your fi nger (For details, see “Selecting an existing cooking program”).

  • Page 18: Setting The Cooking Time And Temperature

    Operating instructions Rev. 9.11.2016 METOS MARVEL 3.3.4. Setting the cooking time and temperature Setting the cooking time Push the time button whereupon the the screen will show the set cooking time page. Push the desired fi eld (hours, minutes or seconds) and set the time using the number but- tons.
  • Page 19 Operating instructions Rev. 9.11.2016 METOS MARVEL Setting the Delta-T -temperature If the core temperature probe is in use you can set either the • Chamber temperature or the • Delta-T temperature. This constantly keeps the chamber temperature the delta-T value higher than the set core tem- perature.

  • Page 20: Selecting An Existing Cooking Program

    Operating instructions Rev. 9.11.2016 METOS MARVEL 3.3.5. Selecting an existing cooking program Select an existing cooking program by pushing the -button whereupon the screen will show the program page. Browse programs by scrolling the page with your fi nger. A star...
  • Page 21 Operating instructions Rev. 9.11.2016 METOS MARVEL Editing a program • Select the program according to the previous • Push the program name frame to edit the program name, in this example . (See also ”Adding/editing a program name”). • Push the cooking time button to change the cooking time.
  • Page 22 Operating instructions Rev. 9.11.2016 METOS MARVEL Adding/editing a program name • Push the uppercase button toggle between lowercase , uppercase and uppercase hold letters. • Push the backspace button to erase characters. • Push the special characters button for numbers and special characters.
  • Page 23 Operating instructions Rev. 9.11.2016 METOS MARVEL Selecting favorite pages • Push the edit button to edit the favorite page name. • Push the star button to select or unselect the pro- gram for the favorite page. • Push the OK -button to confi...

  • Page 24: After Use

    Operating instructions Rev. 9.11.2016 METOS MARVEL 3.4. After use 3.4.1. General Stainless steel is composed of iron, chrome and nickel. Together with oxygen from the air chrome forms an oxide layer on the stainless steel surface which protects from corrosion.

  • Page 25: Periodic Measures

    Operating instructions Rev. 9.11.2016 METOS MARVEL 6. Remove the food particles from the drainage basin. Clean the basin with a brush and dry with a cloth. 7. Clean the outer surfaces and door seal/seals with a cloth. 8. Clean the runners with a brush. Put them back into the chamber.
  • Page 26 Operating instructions Rev. 9.11.2016 METOS MARVEL...

  • Page 27: Adjustment Instructions

    Adjustment instructions Rev. 9.11.2016 METOS MARVEL Adjustment instructions 4.1. Changing the settings The following settings can be altered without logging: • Language • Time and date • Software version (info) Browse the settings by scrolling with your fi nger Confi rm your choice by pushing the -button.

  • Page 28: Date And Time

    Adjustment instructions Rev. 9.11.2016 METOS MARVEL 4.1.2. Date and time Select ”time&date” , see ”Changing the settings” Push the date and time buttons to set the correspon- ding value. Set the date and time with the number buttons. With the ”C” button you can clear a set value.

  • Page 29: Safety Valve Check

    Adjustment instructions Rev. 9.11.2016 METOS MARVEL 4.1.3. Safety valve check Every 3 months the screen will show a prompt to perform the safety valve check, see ”Periodic measures” . The test can be started from the ”Settings” -menu as follows: Select ”Safety valve check”...

  • Page 30: Program Version

    Adjustment instructions Rev. 9.11.2016 METOS MARVEL 4.1.4. Program version This page contains information that a service technician might ask for when a service call is made.

  • Page 31: Changing The Settings, "Master Chef

    Adjustment instructions Rev. 9.11.2016 METOS MARVEL 4.2. Changing the settings, ”master chef” The following settings can be modifi ed when logged in as ”Master chef” . Default log in code for Master chef is ”1234” and it can be changed with the parameters.

  • Page 32: Selecting The Cooking Ready Sound

    Adjustment instructions Rev. 9.11.2016 METOS MARVEL 4.2.3. Selecting the cooking ready sound Select the sound that will be played fi nishing cooking without using cooking program. This selection is used also as default sound for cooking programs, if the program’s cooking ready sound selection is “Default sound”...

  • Page 33: Parameters

    Adjustment instructions Rev. 9.11.2016 METOS MARVEL 4.2.4. Parameters Some of Marvel’s features can be changed by parameters. You have to log in as “Master chef” to change the parameters. Each parameter has the following features: 104: Parameter number Master chef login time out: Parameter description, currently only in English.
  • Page 34 Adjustment instructions Rev. 9.11.2016 METOS MARVEL 105 Master chef login code(fi rst digit non zero) min: 1, max: 999999, def: 1234 This parameter sets the master chef’s login code. Login codes of other users are available only for authorized persons.

  • Page 35: Memory Functions

    Adjustment instructions Rev. 9.11.2016 METOS MARVEL 4.2.5. Memory functions Insert USB memory To use the memory functions, pull out the maintenance dra- wer and insert USB memory stick in the connector. The following memory functions are available when logged in as “Master chef”...

  • Page 36: Load Cooking Programs

    Adjustment instructions Rev. 9.11.2016 METOS MARVEL 4.2.7. Load cooking programs When loading cooking programs from a USB memory and the USB memory contains at least one program with a name that already exists in Marvel. Keep existing Keep the program you already have in Marvel and don’t load the program form USB memory.
  • Page 37 Adjustment instructions Rev. 9.11.2016 METOS MARVEL...

  • Page 38: Installation

    Installation Rev. 9.11.2016 METOS MARVEL Installation 5.1. General Carefully read the instructions in this manual as it contains important information regarding proper, effi cient and safe installation and maintenance of the appliance. The installation of this appliance must be carried out in the accordance with the manufacturers instructions and following local regulations.

  • Page 39: Electrical Connection

    Installation Rev. 9.11.2016 METOS MARVEL 5.4. Electrical connection Before making the connection to the mains, ensure that the voltage and fre- STOP quency are as indicated on the appliance rating plate. In order to make eventual future service easier and increase safety a mains switch must be installed near the appliance.

  • Page 40: Water Connection

    Installation Rev. 9.11.2016 METOS MARVEL 5.5. Water connection The unit is connected to cold water pipeline observing the rules of local water- works. For the connection the unit is equipped with R 1/2” outer thread, a mud sepa- rator and a back pressure valve (for details see ”Technical specifi cation / instal- lation drawings).
  • Page 41 Installation Rev. 9.11.2016 METOS MARVEL Connect the appliance to the mains and check • The function of the touch screen • That water goes into the steam generator • That the heating is switched on and that it is switched off again when the set temperature has been reached.

  • Page 42: Technical Information

    Technical specifi cations Rev. 9.11.2016 METOS MARVEL Technical information Main circuit diagram...
  • Page 43 Technical specifi cations Rev. 9.11.2016 METOS MARVEL Installation drawings...
  • Page 44 Technical specifi cations Rev. 9.11.2016 METOS MARVEL...
  • Page 45 Technical specifi cations Rev. 9.11.2016 METOS MARVEL Model Chambers CAPACITY 4xGN1/1-65 8xGN1/1-65 Temperature range 40°C ... 120°C, Connected power (kW) Fuse (A) Voltage (V) Number of phases 3NPE 3NPE Frequency (Hz) Starting current (A) Enclosure class Water connection 1/2” outer thread, 250...600 kP , min fl ow 0,2 l/s...
  • Page 46 Technical specifi cations Rev. 9.11.2016 METOS MARVEL...
  • Page 47 Technical specifi cations Rev. 9.11.2016 METOS MARVEL...
