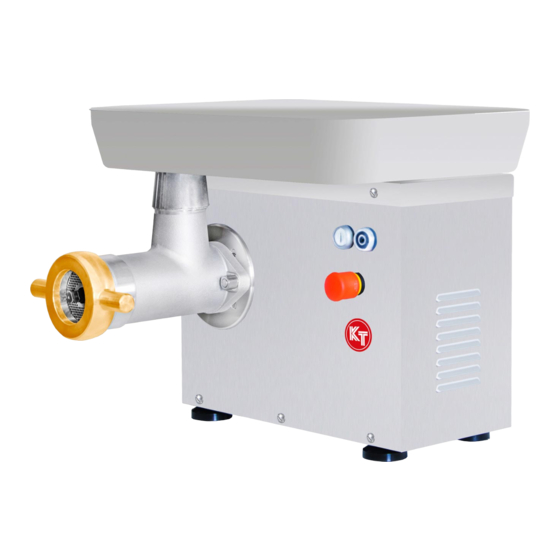

- Page 1 Meat mincer Metos LM-10/P, LM-22/P, LM-82/P 2021061, 2021062, 4221324 User manual 14.03.2011...
- Page 2 LM-10/P, LM-32/P, LM-82/P MEAT GRINDER USER MANUAL Warning! KT-meat grinders are especially designed to grind meat, although they may be used for grinding various other products as well. These machines are capable of inflicting damage to the user, unless the right safety precautions are observed. Therefore, it is important that utmost care is taken when using this machine.
-
Page 3: Table Of Contents
LM-10/P, LM-32/P, LM-82/P CONTENTS 1. Introduction ..........3 1.1 Technical specifications ......3 2. General description ........3 LM-10/P, LM-22/P, LM-82/P ..... 3 3. Unpacking ............ 4 4. Installation ........... 4 4.1 Location ..........4 4.2 Electrical connection ......5 Please note .......... -
Page 4: Introduction
They are easy to dismantle for cleaning purposes. Models LM-10/P, LM-22/P and LM-82/P start/stop buttons, as well as emergency stop switch are located in the front of the grinder (Picture 1: No. 1a, 1b, 1c). The starting switch also incorporates an undervoltage circuit breaker to prevent unintentional restarting after the power to the machine has been cut off. -
Page 5: Unpacking
LM-10/P, LM-32/P, LM-82/P Picture 1 3. Unpacking The meat grinder may be stored in the cold store. All models must be thoroughly cleaned before usage. See chapter 6.1 for the recommended cleaning agents. The meat grinder is delivered with feeding equipment dismantled. The installation of the feeding equipment is dealt in chapter 6.3. -
Page 6: Electrical Connection
LM-10/P, LM-32/P, LM-82/P 4.2 Electrical connection Please note 1. Ensure that the voltage corresponds with the voltage marked on the rating label. 2. The machine must be CORRECTLY EARTHED. 3. Only an authorized electrician may connect the electrical supply to the machine and carry out the servicing work. -
Page 7: Operation
LM-10/P, LM-32/P, LM-82/P 5. Operation 5.1 Safety 5.1.1 Safety measures The importance of following safety procedures in the operation of industrial meat grinders cannot be over-stressed. Meat grinders are capable of inflicting bodily damage to operators. However by using common sense and being careful, as well as following all safety measures in the operation of meat grinders, the operator will get the best possible performance out of this versatile machine, and minimize the of accidents. -
Page 8: During Use
LM-10/P, LM-32/P, LM-82/P 5.1.3 During use Keep a check on the quality of the product. If the product does not flow out properly or if it has a porridge-like consistency, check the blade and the hole plate. Worn components should be replaced. -
Page 9: Recommended Detergents
LM-10/P, LM-32/P, LM-82/P 6.1 Recommended detergents For example the following detergent may be used when washing the machine: Kärcher RM 81 Recommended disinfectants: Kärcher RM 32, RM 35 Regardless of detergent or method used, ensure that you observe the manufacturer's instructions. -
Page 10: Reassembly
LM-10/P, LM-32/P, LM-82/P 6.3 Reassembly 1. Mount the grinding house onto the grinder. When installing the grinding house, ensure that the housing is properly inserted into the flange (Picture 4, No. 16) of the grinder. 2. Tighten the nuts (No. 3) with a wrench (clockwise). -
Page 11: Maintenance
The hole plate must be over 5 mm thick. If needed, the hole plate must be replaced. 8. Noise emission values Declaration of noise emission values for grinders LM-10/P, LM-22/P and LM-82/P are presented in the table below. The measurement has been done in a distance of 0,5 m behind the discharge in the axis of discharge opening in a height of 1,60 m above the ground. -
Page 12: Appendix 1. Switch Diagram
LM-10/P, LM-32/P, LM-82/P APPENDIX 1. Switch diagram 14.03.2011... - Page 14 The crossed-out wheeled bin means that within the European Union the product must be taken to separate collection at the product end-of life. This applies to your device but also to any enhancements marked with this sym- bol. Do not dispose of these products as unsorted municipal waste.
