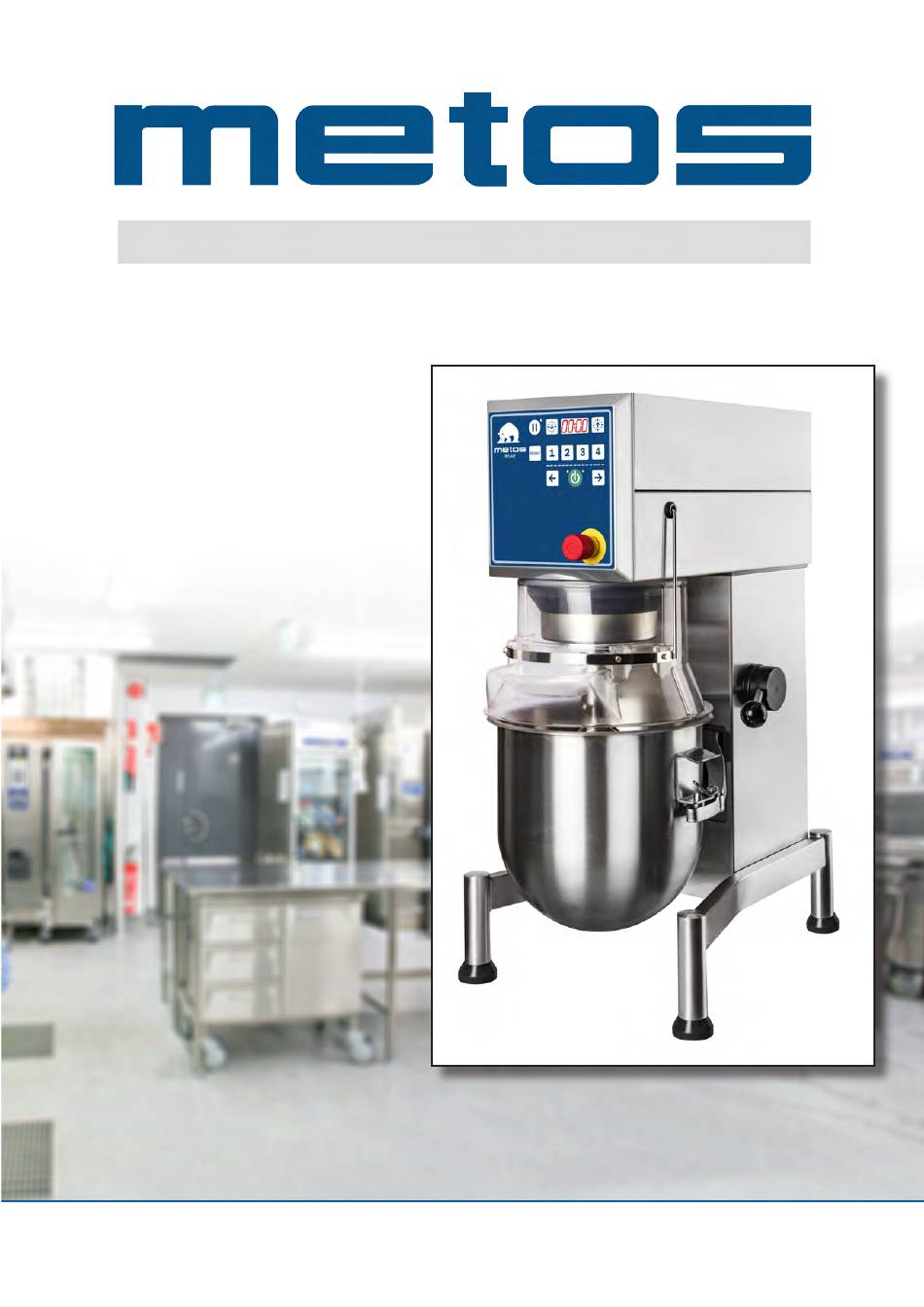

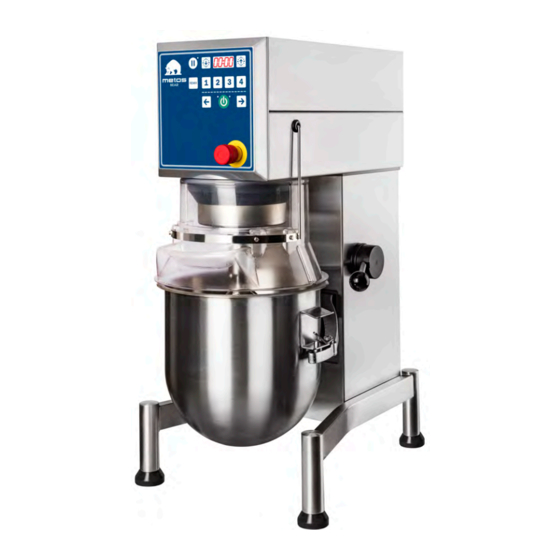

- Page 1 OPERATING INSTRUCTIONS MIXER RN20 User manual ORDER NO.: 00043-VL2 EN 10.2017 MG4143602, MG4143604, MG4143608, MG4143610 Translation of the original user manual...
-
Page 2: Table Of Contents
ontents ..................................2 eneral : ..................................2 npaCkinG : ..................................3 ransport : ..............................3 nstallation and fixinG : ..........................3 xamples of eleCtriCal ConneCtions : .................................. 4 ommissioninG : ............................. 4 eCommended Use of the maChine : ................................4 eChniCal data : ................................ -
Page 3: Ransport
ransport Lifting equipment should always be used to move the machine. Allowance should be made for the fact that the machine is ‘top-heavy’. The machine must not be pulled or lifted by the bowl lift handle. When the machine is moved, it should be in a vertical position at all times. nstallation and fixinG The ambient temperature around the machine must not exceed 45 If the mixer is placed on a table, it must always be bolted into the table top. The bolts fixing the mixer on the pallet can be... -
Page 4: C Ommissioning
ommissioninG Bowl, tools and safety guard should be cleaned before use – see section on Cleaning, page 6. eCommended Use of the maChine The machine is designed for the manufacture of products that do not trigger any reactions or release sub- stances that may be harmful to the user when in use. -
Page 5: Onstruction Of The Mixer
onstrUCtion of the mixer Attachment drive Emergency stop Machine label Arrow indicating the rotation direction of the planetary head Toothed belt Planetary head Motor Bayonet socket Bowl lift Bottom plate Bowl lift arms Screws for fixing on table Nut retaining the bottom plate Standard equipment, as follows: •... -
Page 6: C Leaning
afety orreCt Use of tools Recommended uses of tool: The machine is designed for the manufacture Hook Whip Beater of products that do not trigger any reactions or release substances that may be harmful to the Cream Cake mix Bread dough user when in use. - Page 7 Control panel sUrvey of varioUs operatinG sitUations The following pictures show various operating situations and corresponding explanation: Emergency stop is activated - there is no light in the The mixer is connected to power and is ready for start - is flashing, the mixer has flashing of the green diode at display.
-
Page 8: Peration Of The Mixer
peration of the mixer Time up Text field (timer) Time down Fixed speeds Pause Speed indicator REMIX-function Speed down Start/Stop Emergency stop Speed up Before starting the mixer: Indication of operation time: • Put the desired tool into the bowl Before starting the mixer, an operation time for the mixer can •... -
Page 9: Hange Of Fixed Speeds
emix fUnCtion verloadinG The special Remix-function is a shortcut to programming of The mixer must not be overloaded. recipes. While the mixer is operated, all commands are stored, Possible overload situations: and when a recipe is finished and is pushed, it is possible • Working with excessively tough and heavy dough to store the entire recipe under a program number. -
Page 10: Error Codes And Possible Solutions
vl-2 Control error Codes and possible solUtions Error codes and possible solutions: The VL2 control will in case of certain errors show an error code in the display: Too high temperature in the frequency converter. Solution: Switch off the mixer and let it cool down. Wrong voltage of power supply. -
Page 11: Vl-2 Control
est proGrams To enter the test mode of the mixer, do as follows: Raise the bowl and close the safety guard, push emergency stop. Hold and release the emergency stop at the same time. Now go through four test programs: Test program 1: Test of fields. - Page 12 erviCe instrUCtions Before a possible repair or adjustment, the power must be switched off by dismantling the connection cable from the power supply. Cable bundle stuck to motor base with strips. Cable bundle...
- Page 13 The lid of the mixer shall be removed and the plastic cover (2) shall be loosened by removing the 2 screws (3). The control panel is removed by first removing the plastic ring (7) and the finger screw on the attachment drive, and then loosening the 2 screws (5). The attachment drive is taken out by removing the finger screw and removing the plastic ring (7), the control panel (4) and the 4 bolts (8). The display print is removed by removing the 2 screws (10).
- Page 14 The planetary head is taken off in the following way: a) Take off the lid of the mixer (1), control panel (4), attachment drive (6), and toothed belt (11). b) Take out the screws (30) c) The plastic ring (31) can be taken off by hitting it slightly against the front edge and thereafter pressing a screw- driver in between the plastic ring and the metal plate at the top of the plastic ring.
- Page 15 Exchange the switch for bowl detection (with bracket) in the following way: a) Take off the lid of the mixer (1) and the plastic cover (2). b) Remove the base for motor (13) with the motor (17). c) The bracket with the bowl detector switch (35) can be taken out by loose- ning the two bolts (36) and removing the two red wires.
-
Page 16: Abling Diagram
ablinG diaGram... -
Page 17: E Lectrical Diagrammes
leCtriCal diaGrammes... - Page 18 Indhold af Overensstemmelseserklæring, (Maskindirektivet, 2006/42/EC, Bilag II, del A) Contents of the Declaration of conformity for machinery, (Machinery Directive 2006/42/EC, Annex II., sub. A) Inhalt der Konformitätserklärung für Maschinen, (Richtlinie 2006/42/EG, Anhang II, sub A) Contenu de la Déclaration de conformité d’une machine, (Directive Machine 2006/42/CE, Annexe II.A) Inhoud van de verklaring van overeenstemming voor machines, (Richtlijn 2006/42/EC, Bijlage II, onder A) Contenido de la declaración de conformidad sobre máquinas, (Directiva 2006/42/EC, Anexo II, sub A) Fabrikant;...
- Page 19 Innehåll i örsäkran om maskinens överensstämmelse, (Maskindirektivet 2006/42/EG, bilaga 2, A) Contenuto della dichiarazione di conformità per macchine, (Direttiva 2006/42/CE, Allegato II, parte A) Sisukord masina vastavusdeklaratsioon , (Masinadirektiiv 2006/42/EÜ, lisa II, punkt A) Treść Deklaracja zgodności dla maszyn (Dyrektywa maszynowa 2006/42/WE, Załącznik II, pkt A) Sisältö...
