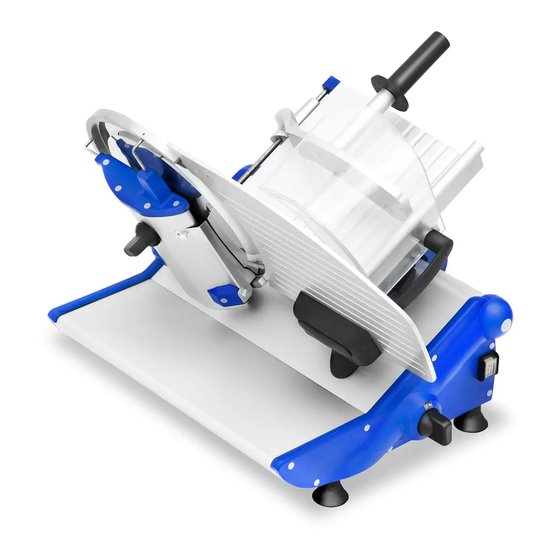

Metos Prima 250 Installation And Operation Manual

Slicing machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SLICING MACHINE
Prima 250
Prima 300
Installation and Operation Manual
S/N:
Rev.: 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prima 250 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metos Prima 250

Summary of Contents for Metos Prima 250

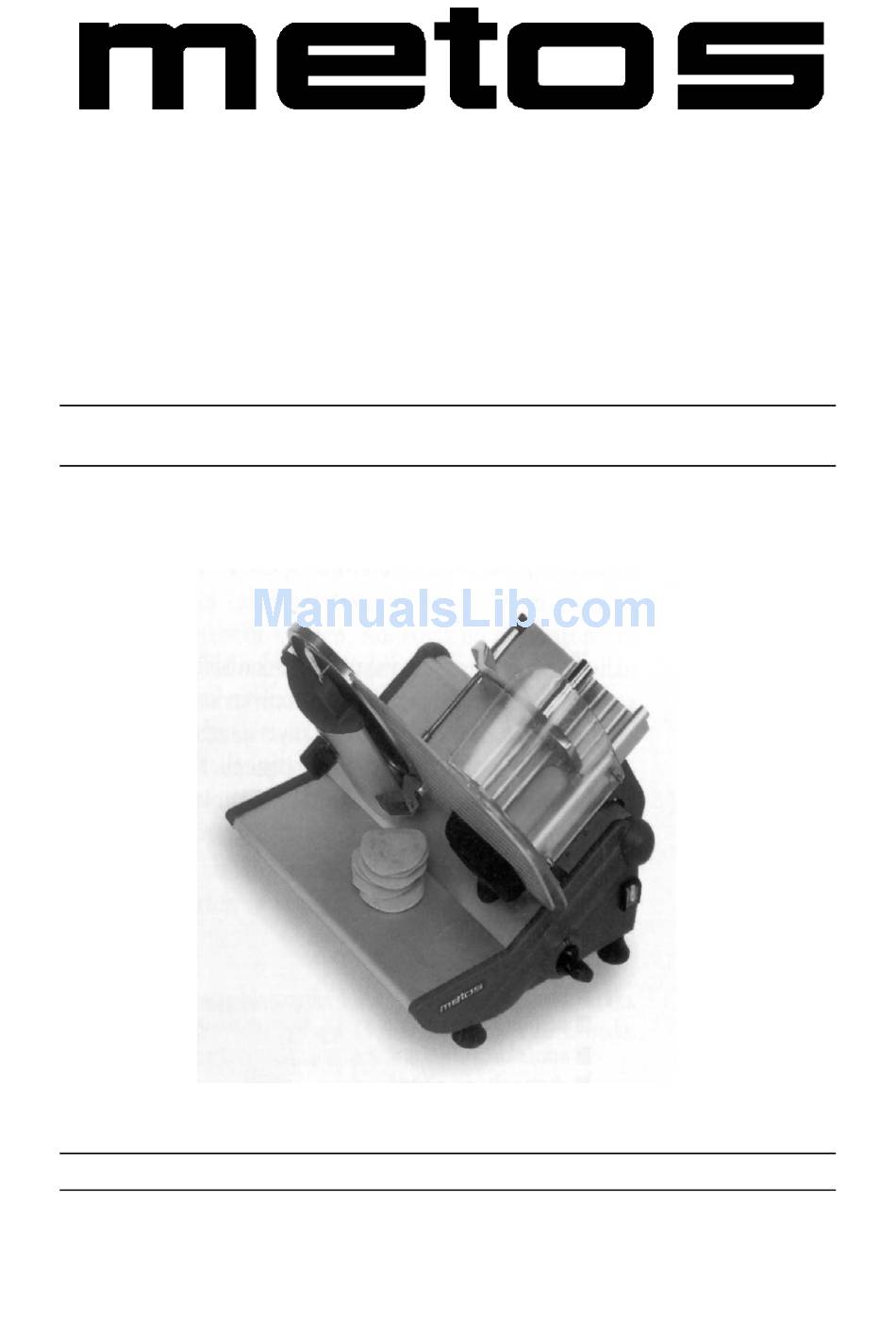

  • Page 1 SLICING MACHINE Prima 250 Prima 300 Installation and Operation Manual S/N: Rev.: 2.0...
  • Page 3 Dear Customer, Congratulations on deciding to choose a Metos appliance for your kitchen activities. You made an excellent choice. We will do our best to make you a satisfied Metos customer like thousands of customers we have around the world.
  • Page 4 29.8.2005 Rev. 2.0...

  • Page 5: Table Of Contents

    29.8.2005 Rev. 1. General ......................1 1.1 Symbols used in the manual ..................1 1.2 Symbols used on the appliance ..................1 1.3 Checking the relationship of the appliance and the manual .......... 1 2. Safety ......................2 2.1 Safe use of the appliance ....................2 3.
  • Page 6 29.8.2005 Rev.

  • Page 7: General

    29.8.2005 Rev. 2.0 General 1. General Carefully read the instructions in this manual as they contain important information re- garding proper, efficient and safe installation, use and maintenance of the appliance. Keep this manual in a safe place for eventual use by other operators of the appliance. The installation of this appliance must be carried out in accordance with the manufactur- er’s instructions and following local regulations.

  • Page 8: Safety

    29.8.2005 Rev. 2.0 Safety 2. Safety 2.1 Safe use of the appliance All operators involved in the present machine use, in installation, maintenance and serv- icing, must be skilled enough and must read this use manual carefully. It is important that not qualified persons or children do not use, even by chance, this ma- chine.

  • Page 9: Functional Description

    29.8.2005 Rev. 2.0 Functional description 3. Functional description 3.1 Application of the appliance The machine must be used to cut eatable products with sizes which are in relation to cut- ting capacity shown in chapter “Technical Data” and with a weight that does not endanger its balance.

  • Page 10: Operation Instructions

    29.8.2005 Rev. 2.0 Operation instructions 4. Operation instructions 4.1 Before using the appliance Before machine starting always check right working safety devices and machine clean- ing. Before product loading or unloading on the platform (16), check that regulator knob is on home position and that blade is at a standstill.

  • Page 11: After Use

    29.8.2005 Rev. 2.0 Operation instructions Machine Parts Locking screw for the blade Sharpener (N.B. Fixed model in picture) Sled Adjustable arm Slice thickness control knob Control switch Blade Blade covering Mounting screw for the sled 4.3 After use 4.3.1 Cleaning Disconnect the machine from current tap and check that regulator knob is on home posi- tion, before starting with cleaning.

  • Page 12: Sharpening

    29.8.2005 Rev. 2.0 Operation instructions 4.3.3 Sharpening Carry on with blade sharpening after checking that machine is switched off and after car- rying out its cleaning. Switch off the machine and turn the regulator knob placing it on thickness 18. Fit the sharpener to the regulator plate by inserting its pin in the corresponding hole and fix it by screwing the knob.
  • Page 13 29.8.2005 Rev. 2.0 Operation instructions...

  • Page 14: Installation

    29.8.2005 Rev. 2.0 Installation 5. Installation 5.1 Unpacking the appliance At machine receipt check that packing is complete. All packing components are classified as solid urban waste; do not dispose of them in the environment. Draw out the machine from packing seizing it by its base; machine weight is specified in the chapter “Technical Data.”...

  • Page 15: Spare Parts

    29.8.2005 Rev. 2.0 Spare parts 6. Spare parts General parts ........13 General parts ........17 General parts ........21...
  • Page 16 29.8.2005 Rev. 2.0 Spare parts...

  • Page 17: Voltage Codes

    3/N/PE∼415/240V 50Hz 3/PE∼230V 50Hz 3/PE∼220V 60Hz 3/PE∼380 50Hz 3/PE∼400V 50Hz 3/PE∼415V 50Hz 3/PE∼440V 60Hz 3/PE∼460V 60Hz 3/PE∼480V 60Hz 1/N/PE~220-240V 50Hz 2/PE~220-230V 60Hz 3/N/PE∼400/230V 50Hz 3/PE∼230V 60Hz 1/N/PE~100V 50-60Hz 6.2 Product codes Product code Full name Model codes Prima 250 Prima 300...
  • Page 18 29.8.2005 Rev. 2.0 Spare parts...
  • Page 19 Module:General parts 10017 Platform mounting 10018 Platform cam 09365 Derlin roller DIA.26 10058 Roller cam 09003 Roller bushing 10103 Handle Prima 250/300 CE 10081 Handle (not in picture) 10055 Cam shaft 10064 Spring 10093 Spring 10010 Carrier 10050 Sliding bar 250...
  • Page 20 29.8.2005 Rev. 2.0 Spare parts...
  • Page 21 Sharpener knob 10037 Regulator bracket 10038 Bellows 10002 Head holding base 250 10003 Head holding base 300 10104 Adhesive band 10106 Adhesive band(not in picture) 10040 Regulator plate supp.cap 10087 Little pin (ring) 10041 Blade scraper holder 250=Prima 250, 300=Prima 300...
  • Page 22 29.8.2005 Rev. 2.0 Spare parts...
  • Page 23 10091 Ring side bracket 250 10092 Ring side bracket 300 10034 Blade cover knob 10056 Prima 250 blade cover tie rod(not in picture) 10082 Prima 300 blade cover tie rod(not in picture) 10085 Ring support 10004 Carriage sliding base 250...
  • Page 24 29.8.2005 Rev. 2.0 Spare parts...
  • Page 25 29.8.2005 Rev. 2.0 Spare parts Code Model Description Module:General parts 10063 Pin PFH M6x10 Prima 250/300(not in picture) 08011 Blade 250mm Argenta/Prima 08020 Blade 300mm Start/Prima 08025 Blade for cheese 250mm teflon(not in picture) 08017 Blade for cheese 300mm teflon(not in picture)
  • Page 26 29.8.2005 Rev. 2.0 Spare parts...
  • Page 27 Plexiglas guard 10094 Prima 250 bottom cover 10095 Prima 300 base cover 01233 Blade extractor diam 300 10089 Prima 250/300 belt tie rod 0074 Knob supporting assy Prima 10121 Regulator plate movem.clamp Prima 10122 Regulator plate movement box 1000 10054...
  • Page 28 29.8.2005 Rev. 2.0 Spare parts...
  • Page 29 Assembled platform 300(not in picture) 1110 0052 Prima 250CE complete food pusher)not in picture) 1110 0053 Prima 300CE complete food pusher(not in picture) 1120 0037 Platform support assy Prima(not in picture) 1130 0066 Regulator plate movement/Prima(not in picture) 250=Prima 250, 300=Prima 300...
  • Page 30 29.8.2005 Rev. 2.0 Spare parts...

  • Page 31: Technical Specifications

    29.8.2005 Rev. 2.0 Technical specifications 7. Technical specifications Wiring diagram Installation drawing...
  • Page 32 Wiring diagram...
  • Page 33 Installation drawing...
  • Page 34 29.8.2005 Rev. 2.0 Technical specifications Item Model Specification Blade diameter Prima 250 250 mm lade diameter Prima 300 300mm Cut thickness Prima 250 15mm Cut thickness Prima 300 15mm Cut capacity Prima 250 230x185mm Cut capacity Prima 300 250x210mm Power Prima 250...
