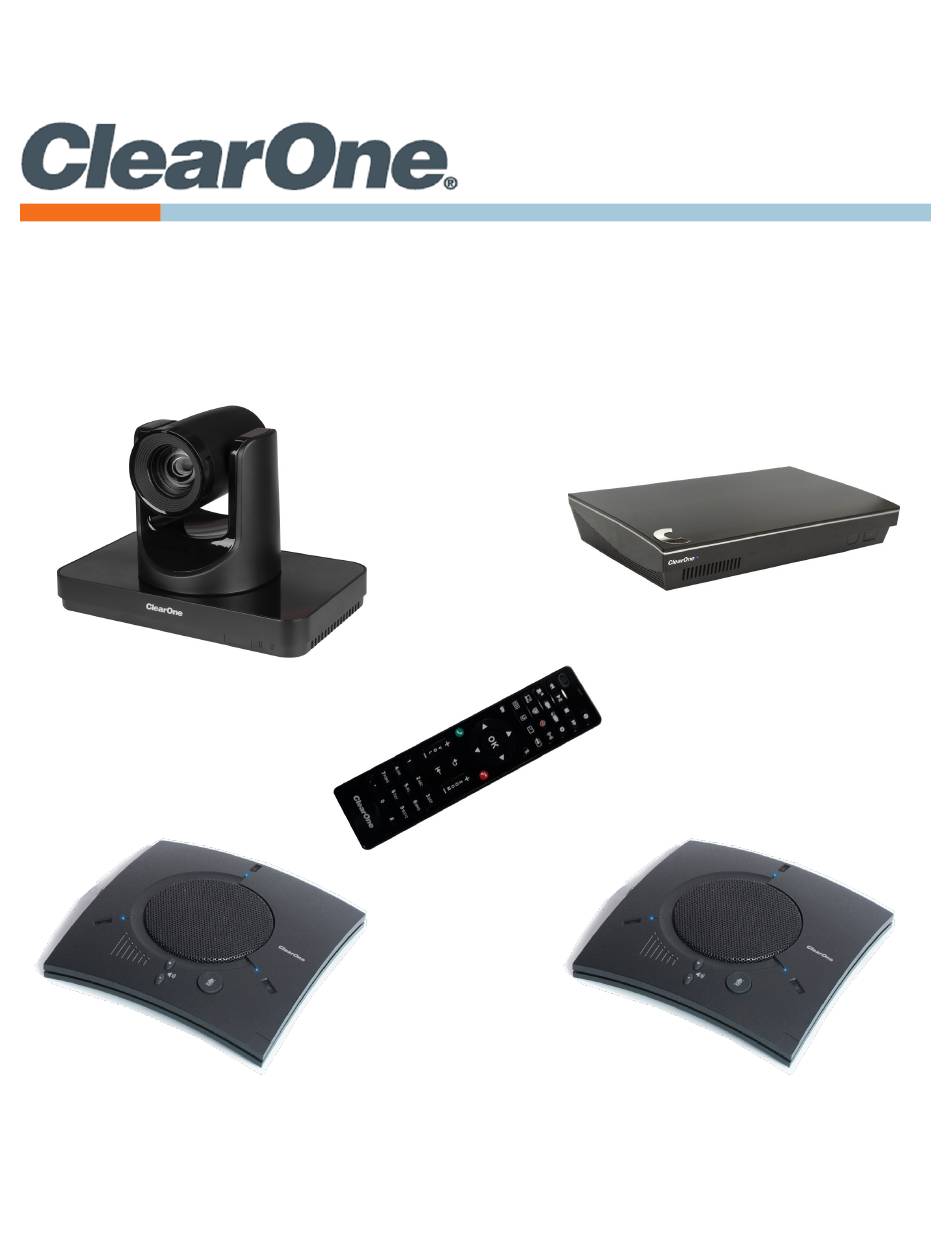

- Page 1 Quick-Start Guide COLLABORATE® Live 600 QSG-0072-001v1.1 April 2023...
- Page 2 Salt Lake City, UT 84116 Sales Technical Support Tel: +1.801.975.7200 Tel: +1.801.974.3760 sales@clearone.com collaborate.support@clearone.com Notices © 2023 ClearOne, Inc. All rights reserved. Information in this document is subject to change without notice. Document: QSG-0072-001v1.1 April 2023 Page 1 QSG-0072-001v1.1 April 2023...

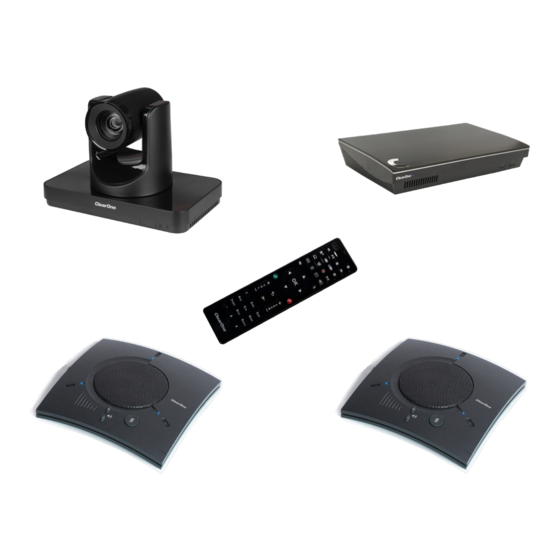

- Page 3 COLLABORATE® Live 600 Quick-Start Guide Components Included COLLABORATE Live 600 Description Products COLLABORATE Live 600 codec with power supply and COLLABORATE Remote control with dongle 910-2100-018 UNITE 260 pro camera, power supply, HDMI cable and RS232 serial control cable. Note: The remote control...
- Page 4 COLLABORATE® Live 600 Quick-Start Guide Making the Connections Connect the CHATAttach 150, the UNITE 260 camera, Ethernet, and monitor(s) to the COLLABORATE Live 600 codec as shown. 1080p or 720p Digital Display UNITE 260 Camera Video Camera Serial Control USB Connection...
- Page 5 The Remote Control includes a dongle that plugs into the FRONT USB port on the codec. Audio Output Options There are three audio output options, accessed from the back of the COLLABORATE Live 600, for connecting the audio. 1. Balanced Audio output to an amplifier that is connected to speakers 2.
- Page 6 Configuring Audio Settings The COLLABORATE Live 600 audio input is CHAT 150 and audio output is set to the Balanced Audio Output. Verify this in COLLABORATE Settings > Audio & Video Note: It is recommended to use the CHATAttach 150.
- Page 7 Using your remote control, navigate into the network settings: Settings > Advanced > Network The COLLABORATE Live 600 obtains its IP automatically by default from the DHCP server. Set “Obtain Address From DHCP” to “Disabled” to manually configure network settings.
