ClearOne UNITE 260 Pro User Manual

Hide thumbs Also See for UNITE 260 Pro:
Table of Contents

Advertisement

Quick Links

Download this manual

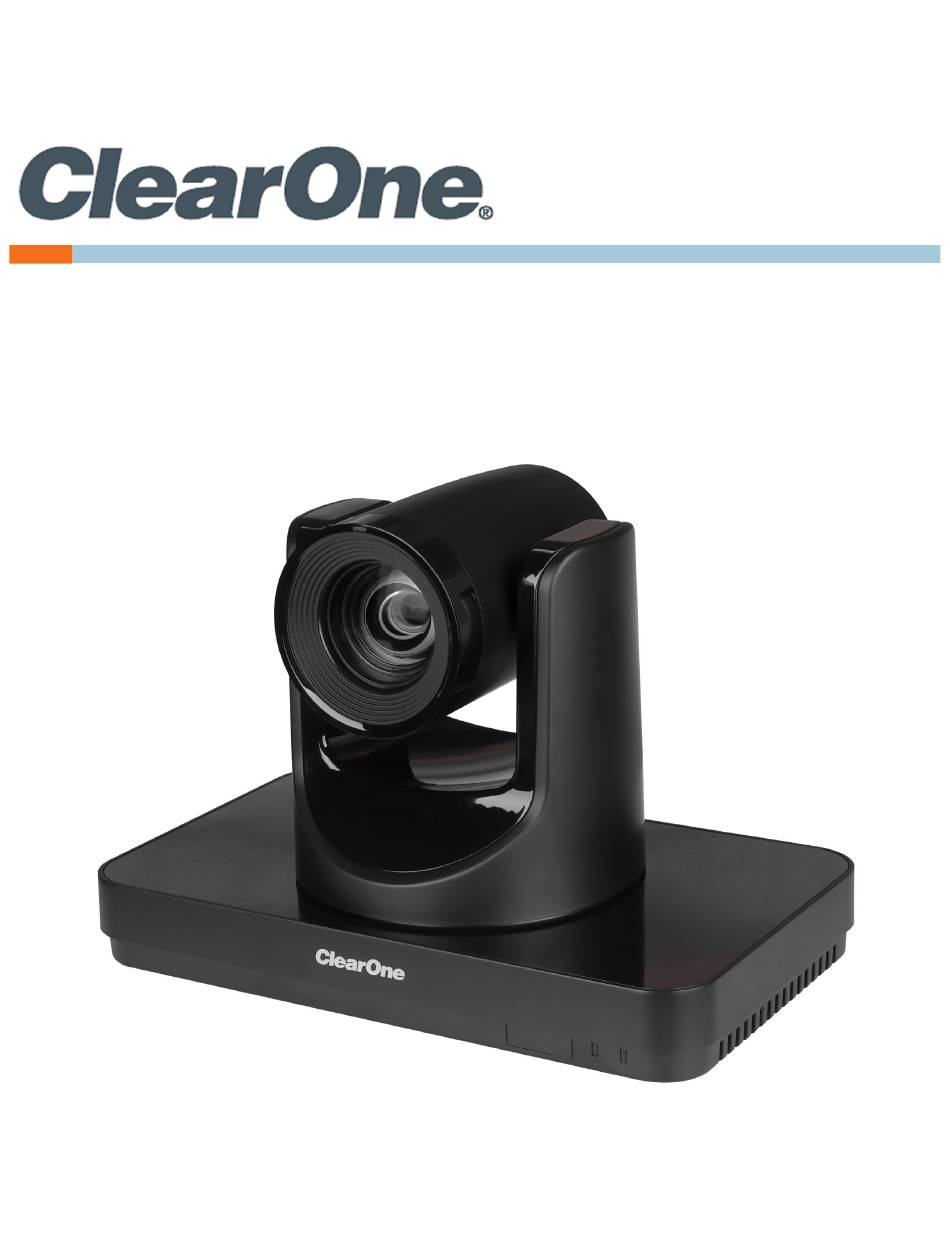

User Manual
UNITE
260 Pro Camera
®
DOC-0571-001v1.0
July 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNITE 260 Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ClearOne UNITE 260 Pro

Summary of Contents for ClearOne UNITE 260 Pro

  • Page 1 User Manual UNITE 260 Pro Camera ® DOC-0571-001v1.0 July 2024...
  • Page 2 Tel: +1.801.975-7200 Salt Lake City, UT 84116 Sales Technical Support Tel: +1.801.975.7200 Tel: +1.801.974.3760 sales@clearone.com videotechsupport@clearone.com Notices ©2024 ClearOne, Inc. All rights reserved. Information in this document is subject to change without notice. Document: DOC-0571-001v1.0 July 2024 DOC-0571-001v1.0 July 2024...

  • Page 3: Table Of Contents

    UNITE 260 Pro Camera User Manual Contents FCC Notices..................iii 1. Safety Precautions ................. 1 2. Packing List ..................1 3. Product Information ................ 2 4. GUI Settings ................. 11 5. Web Settings ................15 6. Record Settings ................22 7.

  • Page 4: Fcc Notices

    Directives on the Approximation of the laws of the Member States relating to Electromag- netic Compatibility Directive 2014/30/EU. Copyright All contents of this manual, whose copyright belongs to Clearone corporation cannot be cloned, copied or translated without the permission of Clearone corporation. DOC-0571-001v1.0...

  • Page 5: Safety Precautions

    UNITE 260 Pro Camera User Manual 1. Safety Precautions • During the installation and operation, all electrical safety regulations of the country and region of use must be strictly observed. • Please use the power adapter that comes standard with this product.

  • Page 6: Product Information

    UNITE 260 Pro Camera User Manual 3. Product Information 3.1 Features • Full Function USB Interface Full featured USB Type-C interface, compatible with USB3.0 and USB2.0, supports audio and encoding output, supports UVC 1.1 protocol. • 4K UHD The new high-quality 1/1.8-inch UHD CMOS sensor with 8.42 million effective pixels enables ultra-high-resolution images up to 4K (3840x2160), downward compatible with 1080P , 720P and other resolutions.
  • Page 7 UNITE 260 Pro Camera User Manual 3.2 Product Specifications Camera Description 4K30, 4K25, 1080P30, 1080P25 Video System Sensor 1/1.8-inch, CMOS, Effective Pixel: 8.42M Progressive Scanning Mode 20x, f=4.4mm ~ 52.8mm, F1.8 ~ F2.6 Lens 0.5 Lux @ (F1.8, AGC ON)
  • Page 8 UNITE 260 Pro Camera User Manual IPC Features H.265/H.264/MJEPG Video Coding Standard First Stream, Second Stream Video Stream 3840x2160, 1920x1080, 1280x720, 1024x576, 960x540, First Stream Resolution 640x480, 640x360 640x360, 480x270, 320x240, 320x180 Second Stream Resolution 32kbps ~ 26624kbps Video Bit Rate...
  • Page 9 UNITE 260 Pro Camera User Manual General Specifications DC 12V/PoE (802.3af) Input Voltage 1.0A (max.) Input Current 0°C ~ 40°C Operating Temperature -40°C ~ 60°C Storage Temperature 12W (max.) Power Consumption 240 x 143.8 x 171 (mm) Dimension Net Weight About 1.6Kg...
  • Page 10 UNITE 260 Pro Camera User Manual 3.3 Interfaces and Buttons 10 11 Interface RS485 Interface RS232 OUT Interface RS232 IN Interface LAN (POE) Interface LINE IN Interface MIC IN Interface HDMI Interface USB3.0 Interface USB2.0 Interface DC 12V Interface Power ON/OFF Button Back to Table of Contents DOC-0571-001v1.0...
  • Page 11 UNITE 260 Pro Camera User Manual 3.4 Dimensions Back to Table of Contents DOC-0571-001v1.0 July 2024...
  • Page 12 UNITE 260 Pro Camera User Manual 3.5 Installation Note: The installation diagram is for reference only. The brackets and screws are not standard. For packing accessories, please refer to the actual product. Back to Table of Contents DOC-0571-001v1.0 July 2024...
  • Page 13 UNITE 260 Pro Camera User Manual 3.6 Remote Control Shortcut Set F1: Short press to open One Push Framing mode / Long press 2s to open Auto Framing mode F3: Short press to open Auto Tracking mode F4: Long press 2s to close Auto Framing or Auto •...
  • Page 14 P/T RST (PTZ Reset) Press to preset Pan/Tilt self-test. Command List The camera uses the VISCA/Pelco-D/Pelco-P serial standard. If you need VISCA/Pelco-D/Pelco-P protocol command list details, please contact ClearOne Technical Support. Back to Table of Contents DOC-0571-001v1.0 July 2024...

  • Page 15: Gui Settings

    UNITE 260 Pro Camera User Manual 4. GUI Settings 4.1 Menu Press the [MENU] key to display the main menu on the screen. Use the arrow key to move the cursor to a desired item and press the [HOME] key to confirm and enter the corresponding sub-menu.
  • Page 16 UNITE 260 Pro Camera User Manual 4.3 Color When in the main menu page, move the cursor to the [Color] and press the [HOME] key to confirm and enter the Color page as shown here. WB-Mode: (White Balance Mode): Auto, Indoor, Outdoor, One Push, Manual, VAR.
  • Page 17 UNITE 260 Pro Camera User Manual 4.5 P/T/Z When in the main menu page, move the cursor to the [P/T/Z] and press the [HOME] key to confirm and enter the P/T/Z page as shown here. Speed By Zoom (The Depth of Field Ratio): On, Off.
  • Page 18 UNITE 260 Pro Camera User Manual 4.8 Communication Setup When in the main menu page, move the cursor to the [Communication Setup] and press the [HOME] key to confirm and enter the Communica- tion Setup page as shown here. Protocol: Auto, VISCA, PELCO-D, PELCO-P .

  • Page 19: Web Settings

    UNITE 260 Pro Camera User Manual 5. Web Settings New features. Check your version Unite 260 new features are only available with firmware versions 9.1.21 or higher. To check your firmware version please: Press [*]+[#]+[8] or go to the camera website and check it under Information menu.
  • Page 20 UNITE 260 Pro Camera User Manual B. PTZ Setup 1) Pan and Tilt Control The direction arrows and home button allow you to manually drive the camera to desired position. 2) Zoom Zoom In and Zoom Out buttons allow for wide or narrow view of the space.
  • Page 21 UNITE 260 Pro Camera User Manual 5.3 Video Setting 1) Video Format Support 50Hz (PAL) and 60Hz (NTSC) formats. 2) Encode Level Support baseline, main-profile and high-profile. 3) Encode Codec Support H264, H265 and MJPEG. 4) Resolution First stream support 3840x2160, 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360;...
  • Page 22 UNITE 260 Pro Camera User Manual 5.4 Image Setting 1) Brightness Image Bright: 0~14 (Default is 7). 2) Saturation Image Saturation: 0~14 (Default is 4). 3) Contrast Image Contrast: 0~14 (Default is 7). 4) Sharpness Image sharpness: 0 ~ 16 (Default is 6).

  • Page 23: Record Settings

    UNITE 260 Pro Camera User Manual 5.6 System Setting 1) Reboot Click “Reboot” to restart system. 2) Username and Password Modify the password of username and guest (use letters and Numbers only). 3) Record Settings (*Only firmware versions 9.1.21 or higher) Packed Time(min) is the value that will define the maximum length of your recordings in minutes.
  • Page 24 UNITE 260 Pro Camera User Manual 5.7 Network Setting 1) Lan Settings The default the IP address is 192.168.19.8, the MAC address cannot be modified. 2) Port Settings A. HTTP Port The IP address identifies a network device and multiple network programs can run on the device, each network program uses the network port for data transmission.
  • Page 25 UNITE 260 Pro Camera User Manual 5.8 AI (Only firmware versions 9.1.21 or higher) From this menu the camera AI can be managed from 3 different areas: 1. AI Control AI detection can be defined here, changing between Auto Framing, Single Tracking or dis- abling AI.
  • Page 26 • Use a standard line-in port 3.5mm TRS jack cable to connect your audio source. To use your PC/laptop’s audio through the Unite 260 Pro’s USB connection, follow these steps: 1. Using the remote control, navigate to MENU > SETUP .

  • Page 27: Serial Command Control

    UNITE 260 Pro Camera User Manual 7. Serial Command Control In default working mode, the camera can be controlled via RS-232 or RS-485 (half-duplex mode). The parameters are as follows: • Baud rate: 2400/4800/9600 bits • Start bit: 1 bit •...
  • Page 28 UNITE 260 Pro Camera User Manual Control Interface Definition Back to Table of Contents DOC-0571-001v1.0 July 2024...

  • Page 29: Troubleshooting

    UNITE 260 Pro Camera User Manual 8. Troubleshooting Image • Forget the IP address or login password • The monitor shows no image The default IP address is: 192.168.19.8; the 1) Ensure that the power supply of camera default username and password are: admin.
