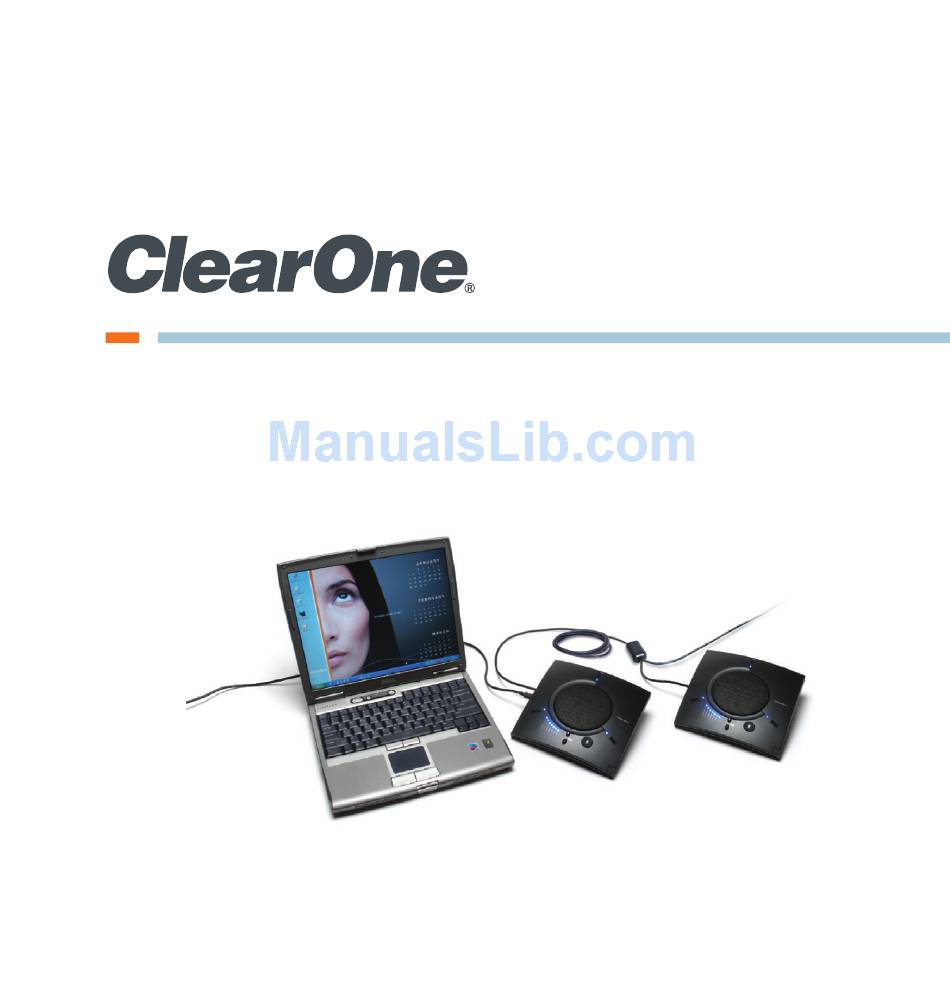

Page 1: Quick Start Guide
CHAT CHATAttach ® ® Group Speakerphone Quick Start Guide... -
Page 2: Table Of Contents
CONFIGURING THE CHAT 150 ............. 1 CHAT 150 FEATURES ..............2 CONNECTING YOUR CHAT 150 ..........3 ChAt 150 PC ..........3 onneCting the to A CONFIGURING AND TESTING YOUR CHAT 150 ......4 ChAt 150 A ............4 udio onfigurAtion ChAtA ™: C ChAt d ...... -
Page 3: Configuring The Chat 150
PC. If the CHAT 150 is to be used with any other device or if the CHAT 150 firmware requires updates, follow the instructions in the CHAT 150 User’s Manual to setup and configure the CHAT 150. -

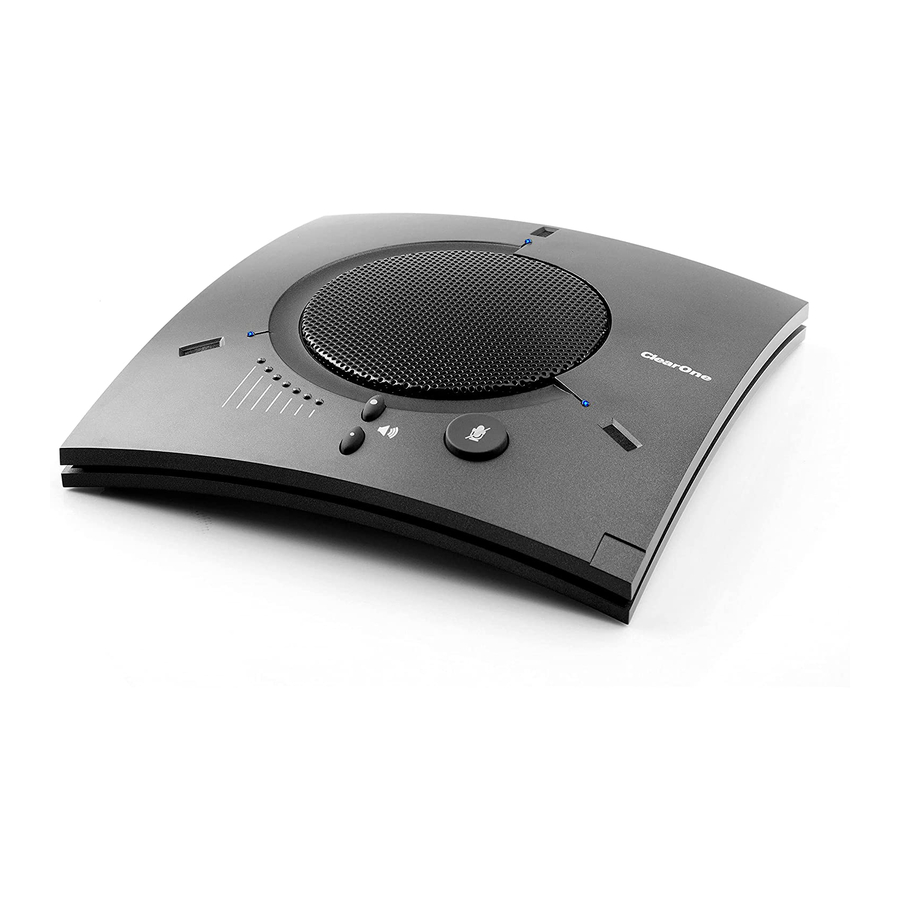

Page 4: Chat 150 Features
CHAT 150 Group Speakerphone CHAT 150 FEATURES Figure 1 - CHAT 150 Features Important! CHAT devices are designed to work on flat, stable surfaces with no obstructions. For best results, do not hold or move the device while in use. -
Page 5: Connecting Your Chat 150
CONNECTING YOUR CHAT 150 The following describes how to connect your CHAT 150 to a PC. The CHAT 150 can also be connected to a number of other devices. For information on connecting the CHAT 150 to other devices, refer to the CHAT 150 User’s Manual. -
Page 6: Configuring And Testing Your Chat 150
To ensure optimal sound quality, the CHAT 150 MUST be tuned properly prior to use or after the device has been moved. The CHAT 150’s audio settings must also be customized for the specific application it is to be used with and for the specific device it is to be connected to. -
Page 7: Chata Ttach ™: C Onnecting T Wo Chat D Evices
Certain restrictions and requirements must be met in order to use the CHATAttach accessory. For a complete list and detailed instructions, consult the CHATAttach or the CHAT 150 User’s Manual. Attach the specially keyed CHATAttach cable to both CHAT 150 devices (Figure 2.0). Plug the power supply into the power source. -
Page 8: Using The Chat 150
Use the Mute button to mute the CHAT 150’s microphone until the Mute button is pressed again. If you are using the CHAT 150 with a PC, you can also use the Speaker Volume Control in Windows, as well as the... -
Page 9: Chat 150 Specifications And Requirements
Power ICES-003, CE Listed, UL Listed USB: Model Numbers 5 VDC @ 500mA Maximum 910-156-200 CHAT 150 USB 910-156-200-00 CHATAttach 150 External: 910-156-222 CHAT 150 Avaya 100 - 240 VAC Input, 9 VDC @ 560 mA 910-156-220 CHAT 150 Cisco... -
Page 10: Technical Support
Technical Support TELEPHONE 1.800.283.5936 1.801.974.3760 1.801.974.3669 Email tech.support@clearone.com U.S. PATENTS: D539,274; D556,189; D531,999. OTHER PATENTS PENDING. © 2012 ClearOne Communications, Inc. All rights reserved. Information in this document is subject to change without notice. 800-156-202 Revision 2.3 April 2012...
