Dura Trel 11127 Assembly Instructions Manual

TOOLS NEEDED:

Drill with #2 Phillips Bit,
¼" and 3/32" Drill Bits
2 – 7/16" Wrenches or Sockets
File

TABLE TOP ASSEMBLY

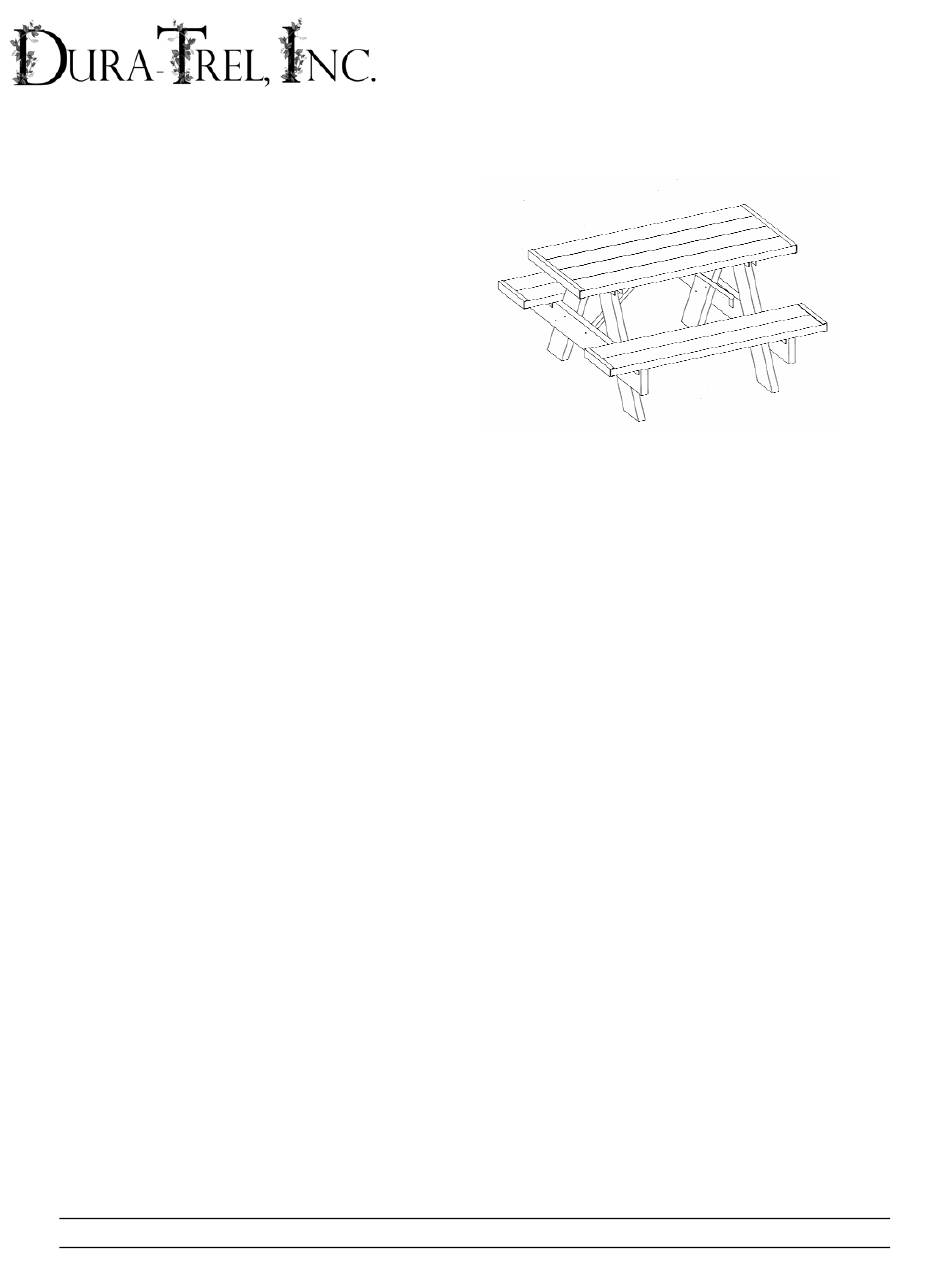

(Refer to Upper Portion of Drawing 1)
On a large flat non-abrasive surface lay the four 1½ x 5½ x 48" table top rails with pilot holes for
screws facing up. (Table top rails have pilot holes farthest from the ends of the rail.) Set the two
20" brackets over the pilot holes on each end of the table top rails, leaving a ⅛" gap between rails.
Fasten one bracket to rails with ¾" screws. Repeat for other end of table.
Apply glue to the inside edges of the ⅞ x 1½ x 22⅜" end cap and push (do not slide from end) the
end cap onto the end of each table top, taking care that the end cap is flush with the outer edges of
table top.

SEAT ASSEMBLY

(Refer to Lower Portion of Drawing 1) (Make 2)
Lay out 2 pieces of seat rail with pilot holes facing up and an approximate gap of ⅛" between them.
(Seat rails have pilot holes closest to the ends of the rail.) Place an 8¾" bracket over pilot holes on
one end of the seat rails and fasten bracket to rails with ¾" screws. Repeat on other end of seat.
Apply glue to the inside edges of the ⅞ x 1½ x 11⅛" end caps and push onto the ends of the seat
rails.
