General Information:
Read through carefully before beginning assembly.
»
When assembling components, place on a clean, flat,
»
non-abrasive surface to avoid scratches.
In the event of missing or defective parts, please call our
»
customer service department directly at 1-877-258-6020
Tools required:
Cordless Drill with #2 phillips bit
»
File or Sandpaper
»
Rubber Mallet (optional)
»
Greenfield
POTTING BENCH
Model# 11203M
Part #
1
2" sq. x 48¼" Back Left Post
2
2" sq. x 48¼" Back Right Post
3
2" sq. x 38" Front Post
4
1½" x 4" x 46½" Table Support
5
1½" x 4" x 46½" Shelf Support
6
1½" x 4" x 20¼" Side Rail
7
⅞" x 3" x 20¼" Table/Shelf Rail
8
⅞" x 3" x 46½" Back Rail
9
1½" x 5½" x 46½" Back Rail
10
1½" x 5½" x 42½" Shelf Rail
11
10¾" Shelf Support Bracket
12
1½" x 5½" x 43" Table Top Rail
13
⅞" x 1½" x 16½" Table Brace
14
16½" Table Top End Cap
15
5½" Shelf End Cap
16
Hardware Kit (includes):
2" sq. Post Cap
1¼" Kappet Screws
¾" Kappet Screws
Kappet Screw Caps
PVC Cement Can

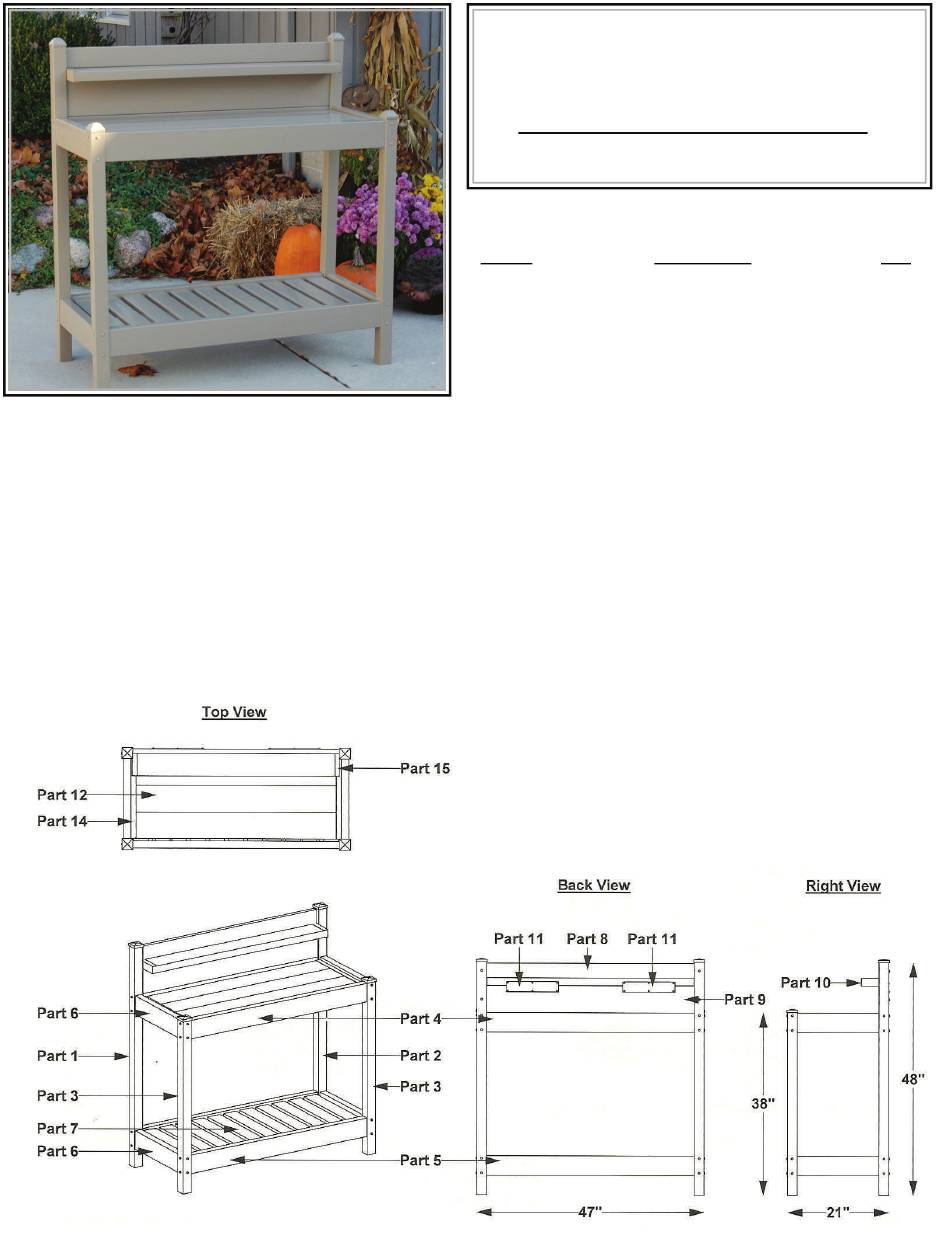

FIGURE 1
Product dimensions &
Part identification
Assembly Instructions
Parts List:
Description
Qty
1
1
2
2
2
4
14
1
1
1
2
3
2
2
2
4
12
48
48
1
Advertisement
Related Manuals for Dura Trel Greenfield 11203M
Summary of Contents for Dura Trel Greenfield 11203M
- Page 1 Greenfield POTTING BENCH Model# 11203M Assembly Instructions Parts List: Part # Description 2” sq. x 48¼” Back Left Post 2” sq. x 48¼” Back Right Post 2” sq. x 38” Front Post 1½” x 4” x 46½” Table Support 1½” x 4” x 46½” Shelf Support 1½”...
- Page 2 Insert ⅞” x 3” x 46½” back rail (part 8) into top hole in back right post (part 2). Insert 1½” x 5½” x 46½” back rail (part 9) into top of large hole of back right post. Insert one table support (part 4), into bottom of large hole of back right post.
- Page 3 Insert three ⅞” x 3” x 20¼” table/shelf rails (part 7) into table support of back panel. Insert eleven ⅞” x 3” x 20¼” table/shelf rails (part 7) into shelf support of back panel. Insert two 1½” x 4” x 20¼” side rails (part 6) into back right and back left post.
- Page 4 Lay out the 1½” x 5½” x 42½” shelf rail and two 10¾” shelf suppport brackets. Using a tape measure, mark shelf rail 6” in from each end. Using three ¾” kappet screws, fasten narrow end of each bracket to shelf rail 6” from end of shelf rail. Shelf rail should sit on part of bracket without screw holes.
