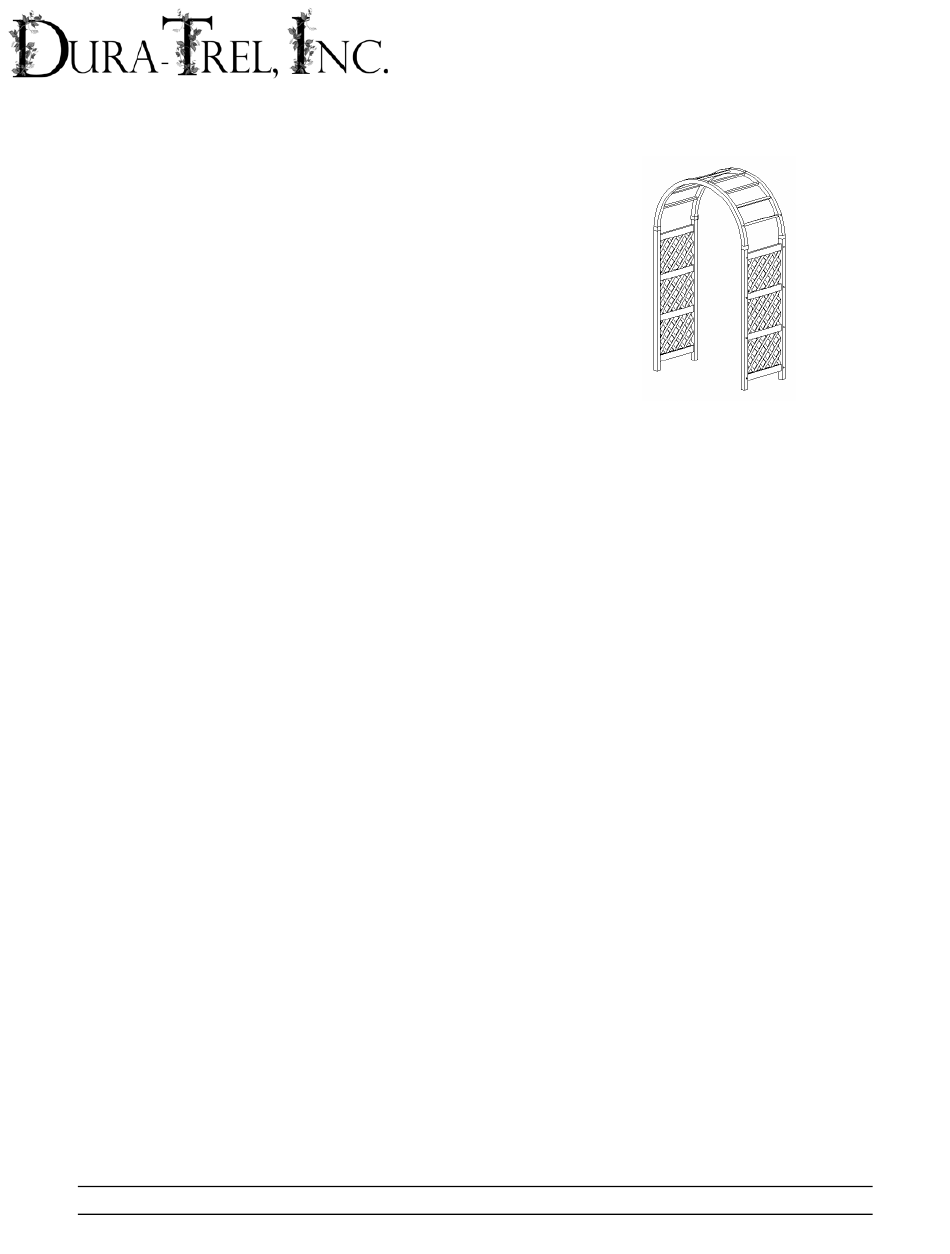

Dura Trel 11163 Assembly Instructions

TOOLS REQUIRED:

Drill with #2 Phillips Bit or
Phillips Screwdriver
Hammer or Mallet

ARBOR SIDE PANEL ASSEMBLY

(Refer to Drawing 1) (Make 2)
On clean flat surface, lay the 7/8 x 3 x 27 ½" center rails down and slide the lattice panel through the
center rails. Push the 7/8 x 3 x 27 ½" top/bottom rails on the ends of the lattice panel. Take two of the
posts with the screw pilot holes facing up and routed hole facing inward and insert the 7/8 x 3 x 27 ½" rails
into the posts, make sure rails are inserted completely into both posts. Fasten the posts to the cross rails
with the 1 ¼" screws and snap the screw caps over the screw heads.

ARBOR TOP ASSEMBLY

(Refer to Drawing 2)
Using the two bent arbor tops, with the 1 x 1" routed holes facing each other, insert the
1 x 1 x 27 ½" square rails between the tops. Make sure all the 1 x 1's are completely in both bent arbor
tops pieces and fasten with the 1 ¼" screws. Snap screw caps over screw heads.
Set the flared ends of the arbor top assembly onto the assemble side panels. The screw caps on the side
panels should face the outside of the completed arbor. The arbor is now ready for installation (See Ground
Anchor Hardware Bag).
If you encounter missing or defective parts, please call manufacturer direct at toll free #
Dura-Trel, Inc. ~ PO Box 122, Sheboygan Falls, WI 53085 ~ Toll Free 877-258-6020
#11163 S
ASSEMBLY INSTRUCTIONS
below.
a
omerset rbor
