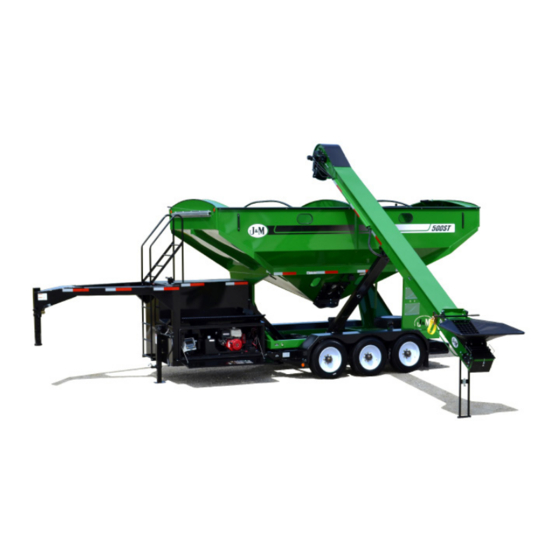

J&M SpeedTender 500ST Operator's Manual
  1. Manuals
  2. Brands
  3. J&M Manuals
  4. Farm Equipment
  5. SpeedTender 500ST
  6. Operator's manual

J&M SpeedTender 500ST Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

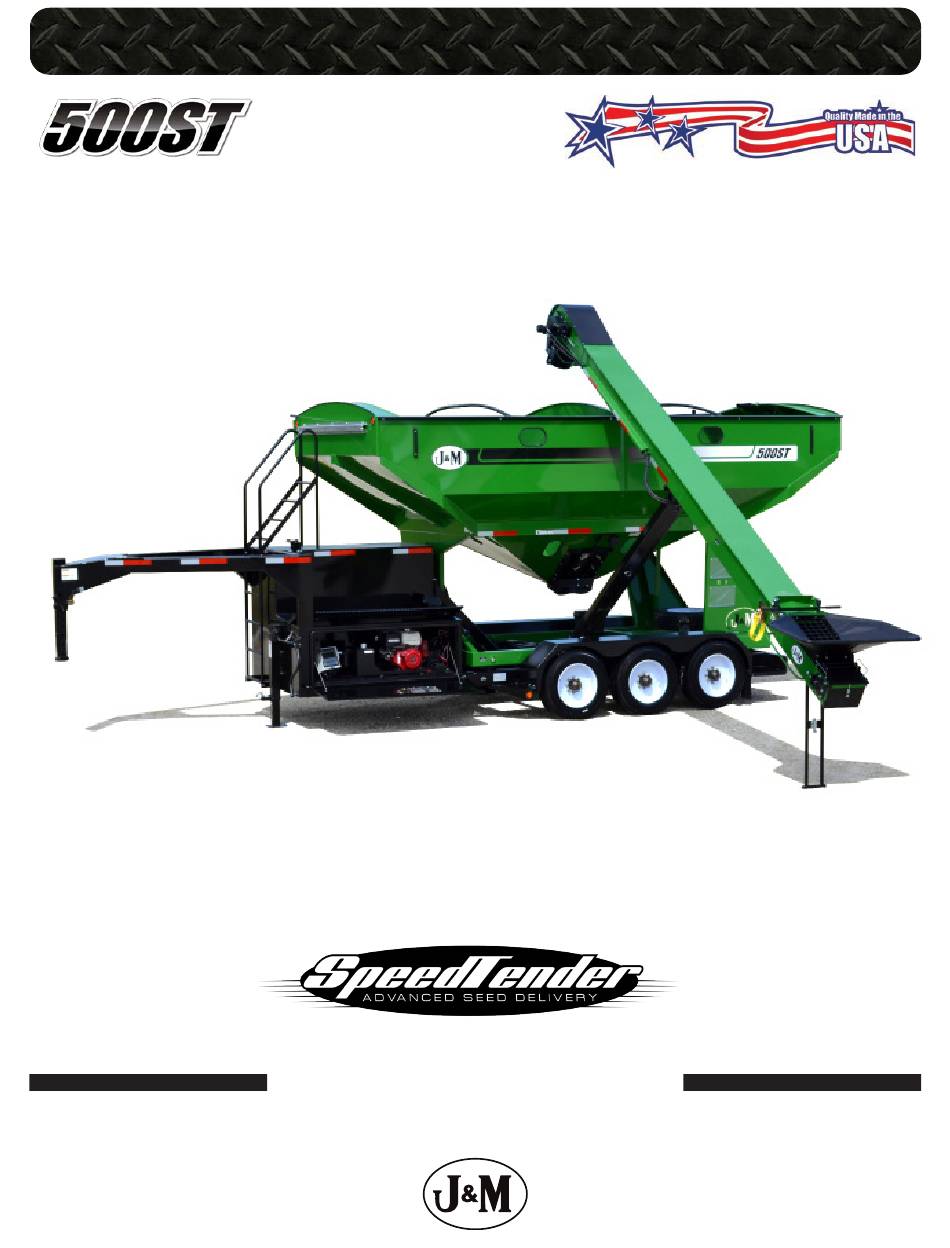

O P E R A T O R' S M A N U A L
Manual Standards
J. & M. MFG. Co., Inc.
P.O. Box 547 Ft. Recovery, OH 45846
PH: (419) 375-2708
www.jm-inc.com
Revision 7.8.2013

Advertisement

Table of Contents
loading

Related Manuals for J&M SpeedTender 500ST

Summary of Contents for J&M SpeedTender 500ST

  • Page 1 O P E R A T O R’ S M A N U A L Manual Standards J. & M. MFG. Co., Inc. P.O. Box 547 Ft. Recovery, OH 45846 PH: (419) 375-2708 www.jm-inc.com Revision 7.8.2013...

  • Page 2: General Information

    General Information TO THE DEALER: Read manual instructions and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists in the Operator’s Manual are completed before releasing equipment to the owner. The dealer must complete the Warranty Registration Card attached to the front inside cover of this manual and re- turn to J.
  • Page 3 General Information The manufacturer reserves the right to make product design and material changes at any time without notice. They shall not incur any obligation or liability to incorporate such changes and improvements in products previ- ously sold to any customer, nor shall they be obligated or liable for the replacement of previously sold products with products or parts incorporating such changes.

  • Page 4: Table Of Contents

    Table of Contents General Information..................To The Owner....................Safety Rules......................Operations....................8-16 Service......................17-28 Troubleshooting..................29-31 Bolt Torque Specifications................Scales....................... 6 Spool Valve....................34-35 Chassis......................36-37 Boom Arm....................... Hydraulic Door....................Conveyor....................40-41 Roll Tarp..................... 42-43 Routing....................... 44-47 Auto Scale Shut-Off Directions..............10K LB Torsion Axle..................
  • Page 5 Notes...

  • Page 6: To The Owner

    To The Owner TO THE OWNER: The purpose of this manual is to assist you in operating and maintaining your Speed Tender in a safe manner. Read it carefully. It furnishes information and instructions that will help you achieve years of dependable performance and help maintain safe operating conditions.

  • Page 7: Safety Rules

    Safety Rules Understand that your safety and the safety of other persons are measured by how you service and operate this ma chine. Know the positions and functions of all controls before you try to operate them. Make sure to check all controls in a safe area before starting your work. The safety information given in this manual does not replace safety codes, federal, state, or local laws.

  • Page 8: Operations

    1.0 Operations 1.1 Preparing the Towing Vehicle Before towing the Speed Tender, refer to towing vehicle’s owner’s manual for information concerning hitch capacities, hitch adjustments, and tire inflation. Towing vehicle must be equipped with proper electric braking components. NOTE: The Speed Tender is equipped with LED lights. The towing vehicle may require a flasher upgrade for lights to operate properly.
  • Page 9 1.0 Operations 1.4 Transporting NOTE: Make sure the jack is in the raised position before transporting. NOTE: Check to make sure the boom arm is in the boom rest and the lynch pin is in place with the conveyor ratchet strap securely fastened. WARNING: Travel at a safe speed that allows you to maintain complete control of towing vehicle and Speed Tender at all times.
  • Page 10 1.0 Operations WARNING: Purge hydraulic system of air before operating Speed Tender to prevent serious injury or death. WARNING: Wear proper hand and eye protection when searching for leaks. Use wood or cardboard instead of hands. Check to make sure all fittings and hardware are in proper operating condition. Replace if worn or broken.
  • Page 11 1.0 Operations 1.6 Field Operation WARNING: The Speed Tender must be hooked to the towing vehicle during loading and unloading. Position the Speed Tender next to the planter/drill so the conveyor/auger will reach the planter box. Remove lynch pin from Boom Arm. (Figure 1.3) Start the hydraulic power unit and increase throttle speed.
  • Page 12 1.0 Operations Wireless Handheld Remote Control Figure 1.4 Figure 1.5 See Section 4.1 for Remote Options Hopper Up Figure 1.6 Using the remote, open the hydraulically driven doors on the speed tender. WARNING: Empty-out the rear compartment first to help prevent the chance of flipping the Speed Tender.
  • Page 13 1.0 Operations Position boom above boom rest and lower to allow its full weight on the boom rest. Replace lynch pin in Boom Arm. Make sure that the conveyor hold down ratchet strap is tight enough that the conveyor will not move during transportation.
  • Page 14 1.0 Operations Lock collapsible hopper in the up position (Figure 1.6). Position the wagon or bulk seed container over the collapsible hopper. Use the handheld controller or wireless remote to start the conveyor. Fill the Speed Tender to desired level. WARNING: Fill the front compartment first to help prevent the chance of flipping.
  • Page 15 1.0 Operations Lower the boom so you can remove the telescoping spout from the discharge end of the conveyor/auger. Undo the conveyor hold down ratchet strap (Figure 1.3). Swing the collapsible hopper end out from under the Speed Tender shell. Place the collapsible hopper in the up position (Figure 1.6) With the discharge end lower than the collapsible hopper end, place the discharge end into a 5 Gal.
  • Page 16 1.0 Operations 1.9 Adjusting the Tarp Tension in Hanger Bracket Fully unroll the tarp as shown in Figure 1.11. Remove the two bolts that hold the tarp U-Joint on the splined shaft. Remove the u-joint from the spline shaft. Rotate u-joint and handle three or four spline teeth. NOTE: Clockwise to tighten the tarp or counter-clockwise to loosen it.

  • Page 17: Service

    2.0 Service 2.1 Grease Conveyer Bearings Grease the conveyor bearings every 10 hours of operation and before storage. Use only two pumps of grease per bearing (Figure 2.1). NOTE: Over lubrication of these bearings will result in premature failure. NOTE: The conveyor has four bearings that need grease (two at each end). Grease Point Figure 2.1 2.2 Grease Boom Arm...
  • Page 18 2.0 Service 2.3 Tire Pressure The following is to be used as a general guide for tire inflation. Figures can vary depending on specific brand of tire used. It is important that tires are inspected before and after unit is loaded. Start with the minimum pressure indicated.
  • Page 19 2.0 Service 2.5 Wheel Bearings The wheel bearings need to be cleaned, inspected, and repacked every 12 months or 12,000 miles. Use a number 2 wheel bearing grease to repack the bearings. Bearing Inspection and Service: Jack up Speed Tender. Remove wheel lug-nuts.
  • Page 20 2.0 Service Bearing Lubrication - The axles are equipped with oil lubricated hubs. The lubrication procedure is to periodically fill the hub with a high quality hypoid gear oil to the level indicated on the clear plastic oil cap. The oil can be filled through the rubber plug hole in the cap.
  • Page 21 2.0 Service 2.6 Hydraulic Power Unit Daily (every 5 hours of use): Check oil level. Inspect for oil leaks and repair as necessary. Check all hoses, fittings, bolts and hardware to make sure that they are secure and properly tightened. Check motor oil level.
  • Page 22 2.0 Service Remove Remove Discharge Pan Bearing Mount- ing Plate Jam Nut Adjustment Bolt Loosen these bolts when adjusting Conveyer belt tension. Typical Clean-out Door each side. Figure 2.4 Figure 2.3 2.8 Adjusting Conveyer Belt Tracking Loosen (Do Not Remove) the 4 bolts on the two bearing mounting plates located at the collapsible hopper end of the conveyor (Figure 2.5).
  • Page 23 2.0 Service 2.9 Belt Tensioning NOTE: You need to adjust your belt tension at least once a year. Remove the head pan and head rubber discharge pan (Figure 2.3). Loosen (Do Not Remove) the 4 bolts on the two bearing mounting plates located at the discharge end of the conveyor (Figure 2.3).
  • Page 24 2.0 Service How to adjust electric brakes: Park the Speed Tender on firm and level ground. Block the trailer tires on the opposite side securely so that no forward or rearward movement is possible. Jack up the Speed Tender. Secure the trailer on jack stands of adequate capacity front and rear. At the back of the wheel, on the brake backing plate, there is a small rubber plug near the bottom of the backing plate.
  • Page 25 2.0 Service Replacing Brake Linings: Remove the brake shoe retract spring. Remove the shoe hold down assembly by holding the back of the pin with one hand and pushing against the spring and twisting with a hold down spring tool until the cup is released. Remove both shoes together leaving the adjuster assembly and spring intact.
  • Page 26 2.0 Service Straight Edge Abnormal Wear Normal Wear (Replace) Figure 2.7 Voltage in the system should begin at 0 volts. As the controller bar is slowly actuated, the voltage should grad- ually increases to about 12 volts. This is referred to as modulation. No modulation means that when the con- troller begins to apply voltage to brakes it applies an immediate high voltage, which causes the brakes to apply instantaneous maximum power.
  • Page 27 2.0 Service Brake Drum Inspection: There are two areas of the brake drum that are subject to wear and require inspection. These two areas are the drum surface where the brake shoes make contact during stopping and the armature surface where the magnet contacts (only in electric brakes).
  • Page 28 2.0 Service Grease the conveyor/auger bearings. Use only two pumps of grease per bearing. NOTE: Over lubrication of these bearings will result in premature failure. NOTE: The conveyor has four bearing that need greased (two at each end). Grease pivot points on boom arm and jack crank before storage. The wheel bearings need to be cleaned, inspected, repacked, and adjusted.

  • Page 29: Troubleshooting

    Troubleshooting Check engine oil level. See Engine operator’s manual for details on oil levels, oil types, and service intervals. Check Speed Tender lights before each time you tow. Make sure that the conveyor/auger hopper guard is in place. Reattach battery and check to make sure that it is fully charged. IMPORTANT: Make sure main disconnect is off before charging.
  • Page 30 Troubleshooting Problems Solutions Locking brakes a. Replace any weak or broken springs in brakes b. Replace any excessively worn or contaminated linings Grabbing brakes a. Replace any excessively worn or contaminated linings Surging brakes a. Trailer is not adequately grounded Belt is not moving - Hydraulic pump is not producing sufficient pressure or volume to belt motor.
  • Page 31 Troubleshooting Problems Solutions Excessive wear to belt edge - Tracking is off. a. Adjust belt tension and tracking (See section 2.8). Excessive wear to belt edge - Rubber skirting is worn or out of place. a. Replace rubber skirting. b. Adjust rubber skirting. Boom arm will not move up or down - Engine R.P.M.

  • Page 32: Bolt Torque Specifications

    Bolt Torque Specifications 2.15 Bolt Torque Specifications Standard Dry Torque in Foot-Pounds Bolt Dia. Pitch (in.) (threads/ Grade 0-1-2 Grade 3 Grade 5 Grade 6 Grade 7 Grade 8 inch) 74,000 psi 100,000 psi 120,000 psi 133,000 psi 133,000 psi 150,000 psi Low Carbon Med.

  • Page 33: Scales

    Scales Description Part.No. Qty. Scale Display Unit JM0007293 1/4” USS Flat Washer JM0003090 1/4”-20 Gr5 Z Hex Nut JM0002122 Indicator Mounting Bracket JM0013576 Grommet PN 3141 JM0016924 3/8”-16 X 3-1/2” Gr5 Z Hex Bolt JM0001986 Weigh Bar Weldment JM0009966 1/2”-13 X 1-3/4” Gr5 Z Hex Bolt JM0002101 1/2”...

  • Page 34: Spool Valve

    6 Spool Valve...
  • Page 35 6 Spool Valve Description Part.No. Qty. #8 male JIC X 3/4” male NPT; 90 degree elbow JM0010290 1/2” I.D. Hose; #8 Female JIC Swivel X #8 Female JIC Swivel; 92” OAL JM0016737 1/2” I.D. Hose; 3/8” Male Pipe Rigid X #8 Female JIC Swivel; 55” OAL JM0016736 1/4”...

  • Page 36: Chassis

    Chassis Description Part. No. Qty. 3/8”-16 x 1.0” Gr8 Z SF Hex Bolt JM0001485 3/8”-16 Gr5 Z F Hex Nut JM0001707 Amber Round Light Assembly JM0001908 Amber Round Light JM0001895 Round Light Grommet JM0001902 5/8”-18 Lugnut JM0016936 Tire and Wheel JM0016937 Fender Weldment JM0015678...
  • Page 37 Chassis Description Part. No. Qty. Red Oval Brake Light JM0007114 Red Oval Brake Light Grommet JM0001897 Bumper Weldment JM0015682 Chassis Weldment JM0015841 License Plate Holder JM0010305 #10-24 x 1.0” Slotted Hex Washer Head Machine Screw JM0009982 #10-24 Z Nylon Locking Hex Nut JM0016030 10k Torsion Axle JM0012466...

  • Page 38: Boom Arm

    Boom Arm Description Part. No. Horizontal Axis Boom Pivot Pin JM0002456 Vertical Axis Boom Pivot JM0002241 1-1/4”-7 Gr5 Z Hex Nut JM0001700 .188 X 1-1/2” Cotter Pin JM0015883 1.0” Diameter Hydraulic Cylinder Pin JM0015882 4-1/2” Bore x 3-3/4” Stroke 14-1/4” Hydraulic Cylinder JM0016945 1.0”-8 X 5.0”...

  • Page 39: Hydraulic Door

    Hydraulic Door Description Part. No. Qty. 3/8”-16 x 1” Serrated Flange Head Hex Bolt JM0003150 1/2”-13 X 2” Gr5 Z Hex Bolt JM0001620 1/2”-13 Gr5 Z Centerlock Hex Nut JM0001511 1-1/2” Bore X 7” Stroke Hydraulic Cylinder JM0002882 Hydraulic Door Frame Weldment JM0012455 3/8”-16 Gr5 Z SF Hex Nut JM0001707...

  • Page 40: Conveyor

    Conveyor...
  • Page 41 Conveyor Description Qty. Part.No. Description Qty. Part.No. 1/4”-20 X 3/4” Gr5 Z Hex Bolt JM0001642 40 1/4”-20 Gr5 Z SF Hex Nut JM0002122 Conveyor Discharge End Skirt JM0012365 41 Conveyor Hopper End Rear Brush JM0012401 Plate 3/8”-16 X 1.0” Gr5 Z Carriage Bolt JM0001632 42 1-1/4”...

  • Page 42: Roll Tarp

    Roll Tarp Description Part. No. 3/8”-16 Grade 5 Zinc Serrated Flange Hex Nut JM0002152 3/8”-16 x 3/4 Grade 5 Zinc Serrated Flange Hex Bolt JM0001750 Tarp Bow JM0013893 0.5”-13 X 1-1/4” Gr5 Z SF Hex Bolt JM0001513 Electric Tarp Mounting Brace JM0013846 1/2”-13 Gr5 Z SF Hex Nut JM0002124...
  • Page 43 Spring Return # Description Part. No. Qty. 1 1/4”-20 X 1-1/2” Gr5 Z Hex Bolt JM0002447 2 Spring Return Spring JM0000207 3 Short Plastic Spacer JM0002442 4 Rectangular Plastic Spacer JM0002443 5 Roller Small JM0002439 6 1/4”-20 Gr5 Z Centerlock Hex Nut JM0001505 7 3/8”-16 Gr5 Z Centerlock Hex Nut JM0001512...

  • Page 44: Routing

    Routing Main Harness To Rear Top Harness White 4” 4” 3” 18” 19” 40” 34” 37” 77” 32” 10” 5” 3” Green White 10” 10” 3” 6” White Black 6” White White 12” Dark Blue White White Dark Blue Dark Blue 82”...
  • Page 45 Routing FUSE BLOCK Halogen Scale Indicator Electric Tarp Valve Bank Camera Electric Jack Spare 2 Front Harness 3” 3” 30” 8” 3” White To Front Top Harness 33” 65” To Front Lower Marker Light To Front Lower Marker Light 384” 147”...
  • Page 46 Routing Flood Light Switch Harness 2” 60” Switch w/ Rubber Boot 2” Black Flood Light White Switch Harness To Flood Light Harnesses Black White 2” 60” To Flood Light Harnesses Switch w/ Black Rubber Boot 2” Black White To Flood Light Harnesses Black White Flood Light Harnesses...
  • Page 47 Routing Wireless Receiver or Handheld Controller Connector Reference Function Figures 4.1-4.4 Tip Spout up Tip Spout Down Boom swing front (optional) Boom swing rear (optional) Boom Up Boom Down Rear door up (optional) Front door down (optional) Power Front door up (optional) Rear door down (optional) Pump In Conveyor Start...

  • Page 48: Auto Scale Shutoff Directions

    Auto Scale Shutoff Directions Ground Deluxe Wireless Remote •Starts/Stops Motor •Raise/Lower Conveyer To Toggle Switch •Open/Close Tank Doors •Hydraulic Conveyer To Valve Body •Auger Swing •Tip Spout •Electronic Auto Scale Shutoff To Scale Display/Interface 1. Turn Scale Head, Wireless Remote, and Wireless Toggle Switch on. -The main screen showing gross and tared weight will display.

  • Page 49: Lb Torsion Axle

    10k LB Torsion Axle Description Part. No. 10K Torsion Axle Seal JM0018099 Tapered Bearing Cone 387A JM0018101 Tapered Bearing Cup 382A JM0018100 Tapered Bearing Cup 25520 JM0018102 Tapered Bearing Cone 25580 JM0018104 O-Ring For Dust Cap JM0202321 Dust Cap JM0025747 Hub Cap (plastic) JM0018379 10K Torsion Axle Primary Shoe...

  • Page 50: Miscellaneous

    Miscellaneous...
  • Page 51 Miscellaneous Description Part. No. Oval Window JM0002455 Oval Window Grommet JM0002454 Buckhorn Seed Pouch JM0017562 1/4” x 3/4” Gr5 Hex Bolt JM0001507 1/4” Centerlock Hex Nut JM0001505 RearView Camera Kit JM0016024 Hydraulic Power Unit JM0005886 Honda GX390 Engine JM0016753 Safety Chains JM0016075 10 5th Wheel Receiver JM0016068...
