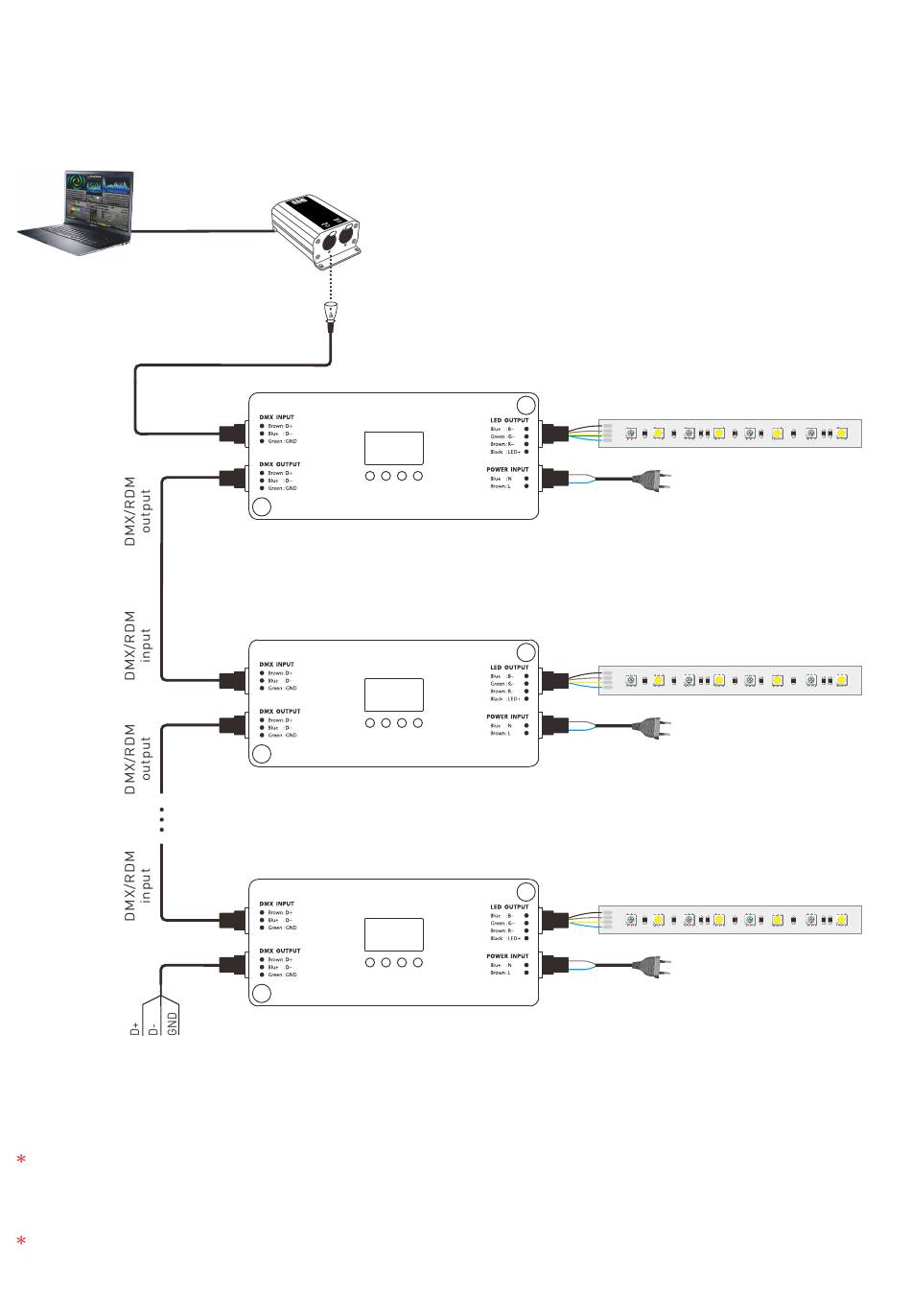

Wiring Diagram

DMX/RDM
input
When more than 32 DMX decoders are connected, DMX signal amplifiers are needed and signal amplification should not be more than
5 times continuously. If you need to modify the parameter settings of connected DMX/RDM decoders that exceed 32, you can add 1 RDM
signal amplifier. Or you can add 1-5 DMX signal amplifiers after completing the parameter settings.
If the recoil effect occurs because of long signal line or poor quality wires, please try to connect a 0.25W 90-120Ω terminal resistor at
the end of each line.
DMX console
SH
P U
SH
P U
3 1
2
3
1
2
WP-803H
WP-803H
WP-803H
LED+
R
G
B
LED+
R
G
B
LED+
R
G
B
5
WP-803H DMX/RDM CV Decoder
100-240V~
100-240V~
100-240V~
