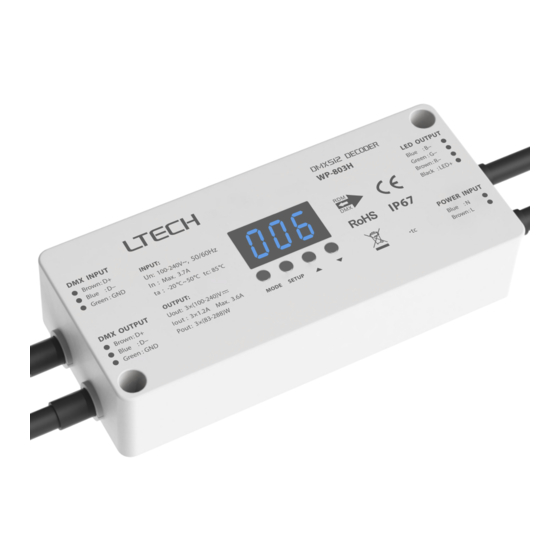

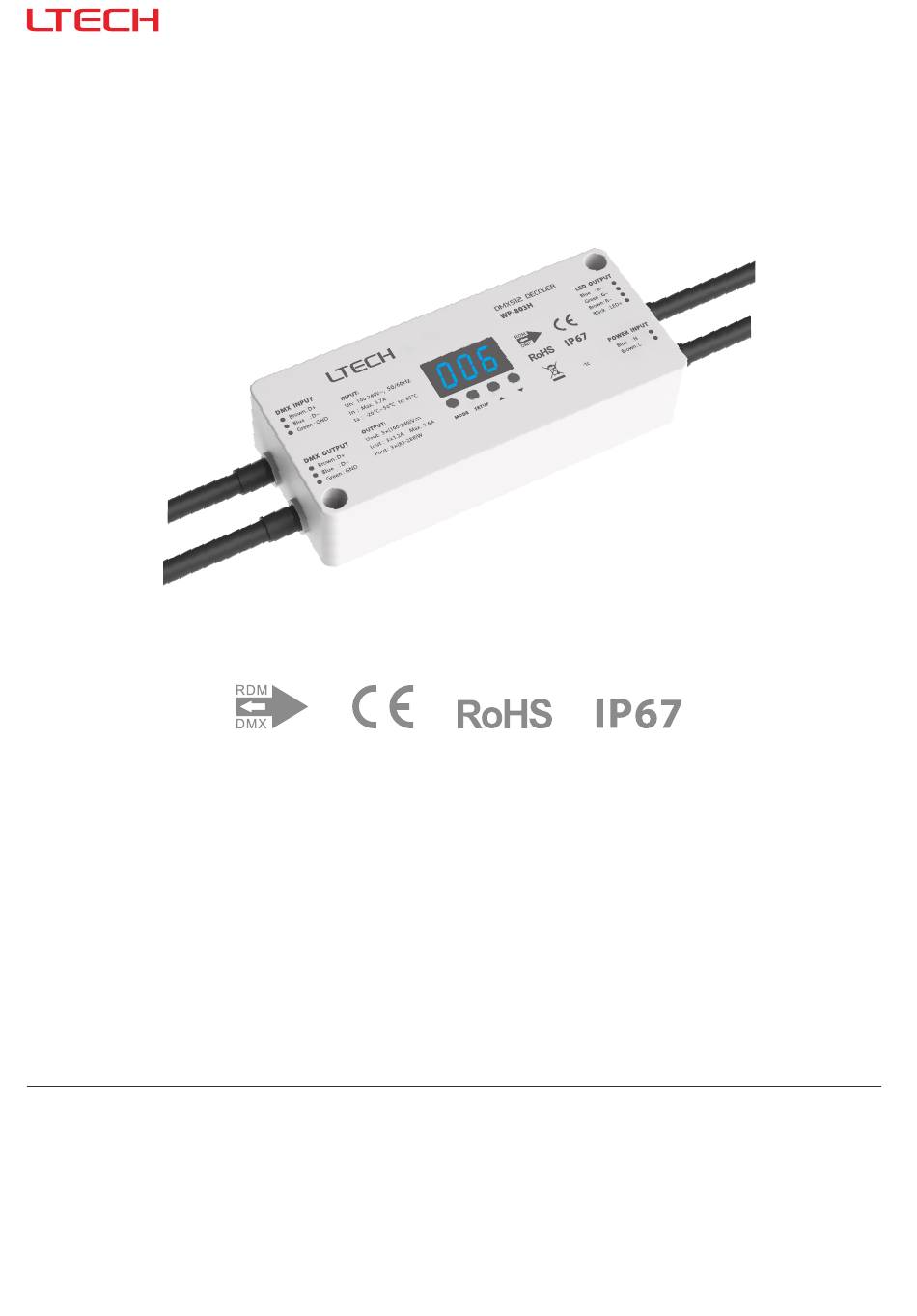

WP-803H uses the RDM protocol and supports DMX512/RDM signal bi-directional communication. The RDM pro-
tocol enables the remote management such as reading/ writing DMX address (the DMX master must be RDM
compliant). WP-803H has 3 channel output with max. 1.2A output for each channel. It can be used to control
DIM, CT, RGB constant voltage lights and achieve 0-100% dimming or various lighting effects. WP-803H can be
operated in DMX mode or in customized mode.
It is easy to set address via digital display and buttons. WP-803H is a waterproof decoder with IP67 rating, sui-
table for outdoor and damp environments.
Product Parameters
WP-803H
Input Signal:
DMX512, RDM
Input Voltage:
100-240V~
Output Current:
Max. 1.2A/CH Max. 3.6A(3CH)
Output Power:
(83-288)W/CH Max. 864W(3CH)
Dimming Range:
0-100%
WP-803H
DMX/RDM CV Decoder
Working Temp.:
Dimensions(L×W×H):
Package Size(L×W×H):
Weight(N.W.):
Protection:
1
WP-803H DMX/RDM CV Decoder
-20°C~50°C
L164×W70×H36mm
L230×W95×H47mm
670g
Short circuit, over temperature, over
current protection, auto recovery.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ltech WP-803H
Summary of Contents for Ltech WP-803H
- Page 1 DIM, CT, RGB constant voltage lights and achieve 0-100% dimming or various lighting effects. WP-803H can be operated in DMX mode or in customized mode. It is easy to set address via digital display and buttons. WP-803H is a waterproof decoder with IP67 rating, sui- table for outdoor and damp environments.
- Page 2 WP-803H DMX/RDM CV Decoder Product Size 164mm 146mm Main Component Description Digital display DMX/RDM signal input LED lamp connection DMX/RDM signal output 100-240V~ power input Digital display: Access Configuration: Long press the MODE button for more than 2s. Adjust Value: Short press or button.
- Page 3 WP-803H DMX/RDM CV Decoder OLED display interface DMX mode Short press the MODE button and button simultaneously. When the screen displays "L-1", it enters the DMX mode. Long press Mode button for 2s to enter the menu. After parameter settings are com- pleted, Long press the SETUP button for more than 2s to save the configuration.
- Page 4 WP-803H DMX/RDM CV Decoder Customized mode Short press the MODE and button simultaneously. When the screen displays "L-2", it enters the customized mode. Long press the MODE button for 2s to enter the menu. After parameter sett- ings are completed, Long press the SETUP button for more than 2s to save the configuration.
- Page 5 WP-803H DMX/RDM CV Decoder Wiring Diagram DMX console DMX/RDM input LED+ 100-240V~ WP-803H LED+ 100-240V~ WP-803H LED+ 100-240V~ WP-803H When more than 32 DMX decoders are connected, DMX signal amplifiers are needed and signal amplification should not be more than 5 times continuously.
- Page 6 1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or conse- quential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail. Update Time: 27/02/2023_A0...
