Ltech Artnet-DMX-8 Quick Start Quide

Artnet-DMX-8
Artnet-DMX Converter

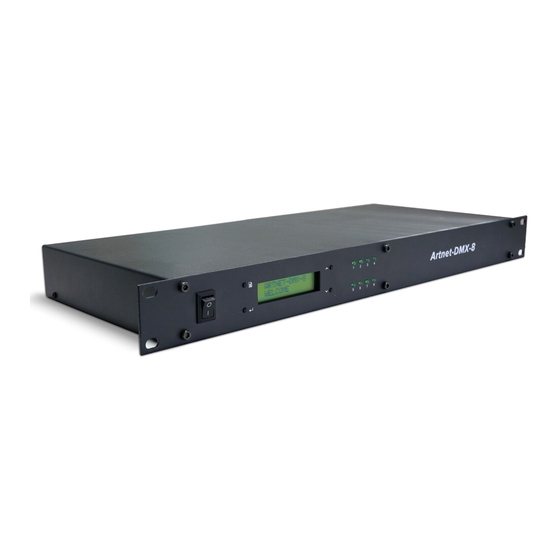

Artnet-DMX converter is the Ethernet Control System based on the Artnet protocol, used to convert
the Artnet network date package into DMX512 date, adopting high-speed ARM processor, stable and
reliable working. Following Art-net standard protocol, it supports RJ45 network interface and standard
DMX512 output interface.
Artnet-DMX-8 use standard 1U(19") chassis architecture, convenient installation in professional cabinet,
easily operation setting with LCD display.
Artnet-DMX-8 provides 8 standard DMX512 data output port, total output 8×512 data.
It is compatible with all the effects lighting control software which support Art-net protocol, widely used
in the LED dot matrix and the stage lighting control network in needing lots of DMX-512 data,
especially for TV station recorded scene, stage performances, entertainment and so on.
1. Technical Specs
Artnet-DMX-8
Power input: 5-24VD C
(with a power adaptor)
Input signal:
Artnet
Output signal: DMX512
DMX channels:
8×512 channels
Current: 30mA@12VDC
IP: Indoor use only
DMX Output Connection: XLR-3
2. Performance Features
2.1. Based on Artnet protocol network data communication, accept network DMX data.
2.2 Two different IP address for each controller
2.3. Send packets to the network by broadcast mode
Artnet-DMX-8 Artnet-DMX Converter
warranty
5 years
Network Connection: RJ45
Isolation Ethernet Port: Total Isolation
Isolation Power Input: Total Isolation
Working temperature: -20 ~65 ℃ ℃
Dimension:
L482.6×W200×H44mm
Package Size: L550×W265×H100mm
Weight (G.W): 2200g
1
2.4. Manage Artnet on broadcast mode or unicast mode
2.5. Standard 1U(19" ) chassis architecture, convenient installation in the standard cabinet.
2.6. With LCD screen display, convenient operation intuitive settings
2.7. Provides 8 standard DMX512 data output port,output 8×512 data in total.
2.8. Set different network segments to avoid multiple sets Artnet data interference.
2.9. Compatible with the light software based on Artnet Protocol, control stage lighting and LED
lighting simultaneously.
2.10 Connect up to 256 DMX Universes to one network.
2.11 10BaseT Ethernet Port.
2.12 Data activity indicators
2.13 Configurable DMX output refresh rates.

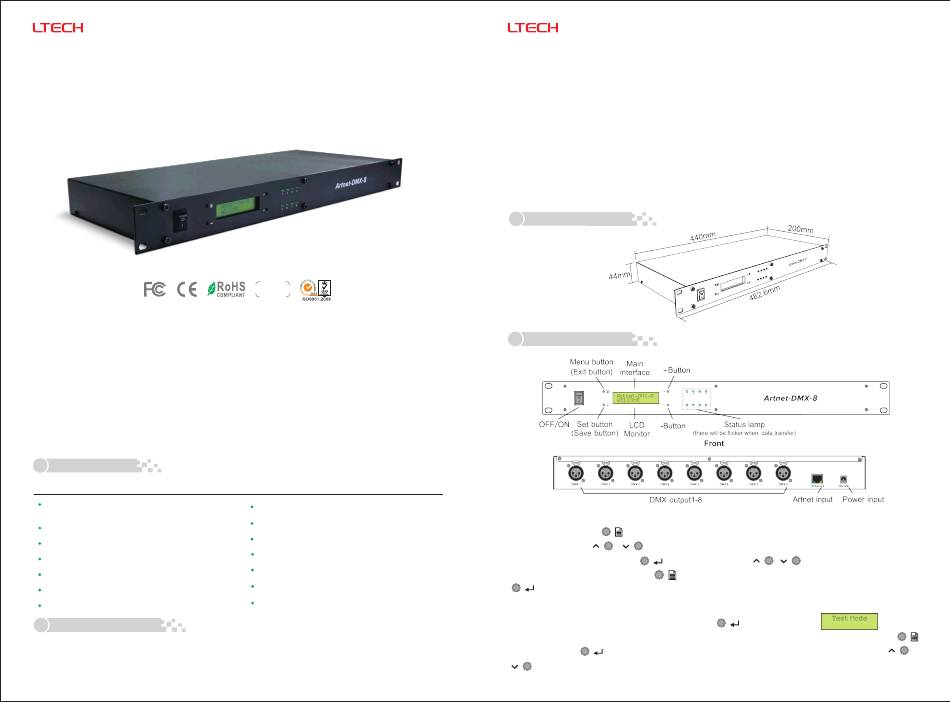

3. Product dimension:
4. Interface instruction:
Button Operating Instructions:
Press the menu button in the main interface to enter the menu interface(see the below table).
Press the +/- button / to move up and down the menu and set the relative parameter
through press the setting button . Press the +/- button
parameter. Press the setting button to save the setting when finished and press the menu button
to quit the setting status.
Other Functions of Button:
In the main interface, long press the setting button
dark, light and highlighting skipping data changing effect to the 8 ports). Press the menu button
or setting button to quit the test mode. In the main interface, long press the +/- button
at the same time to restore factory settings.
