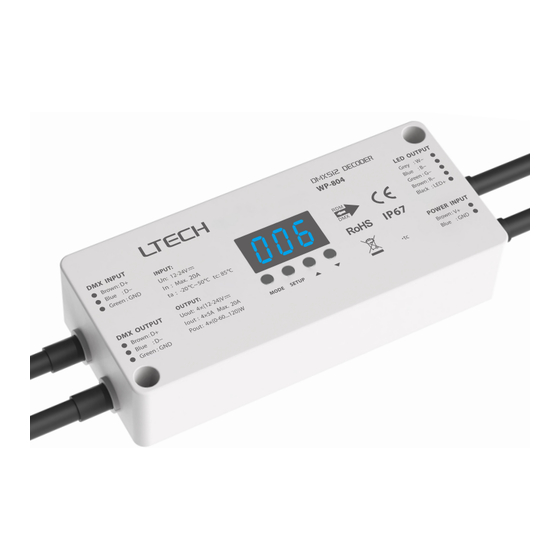

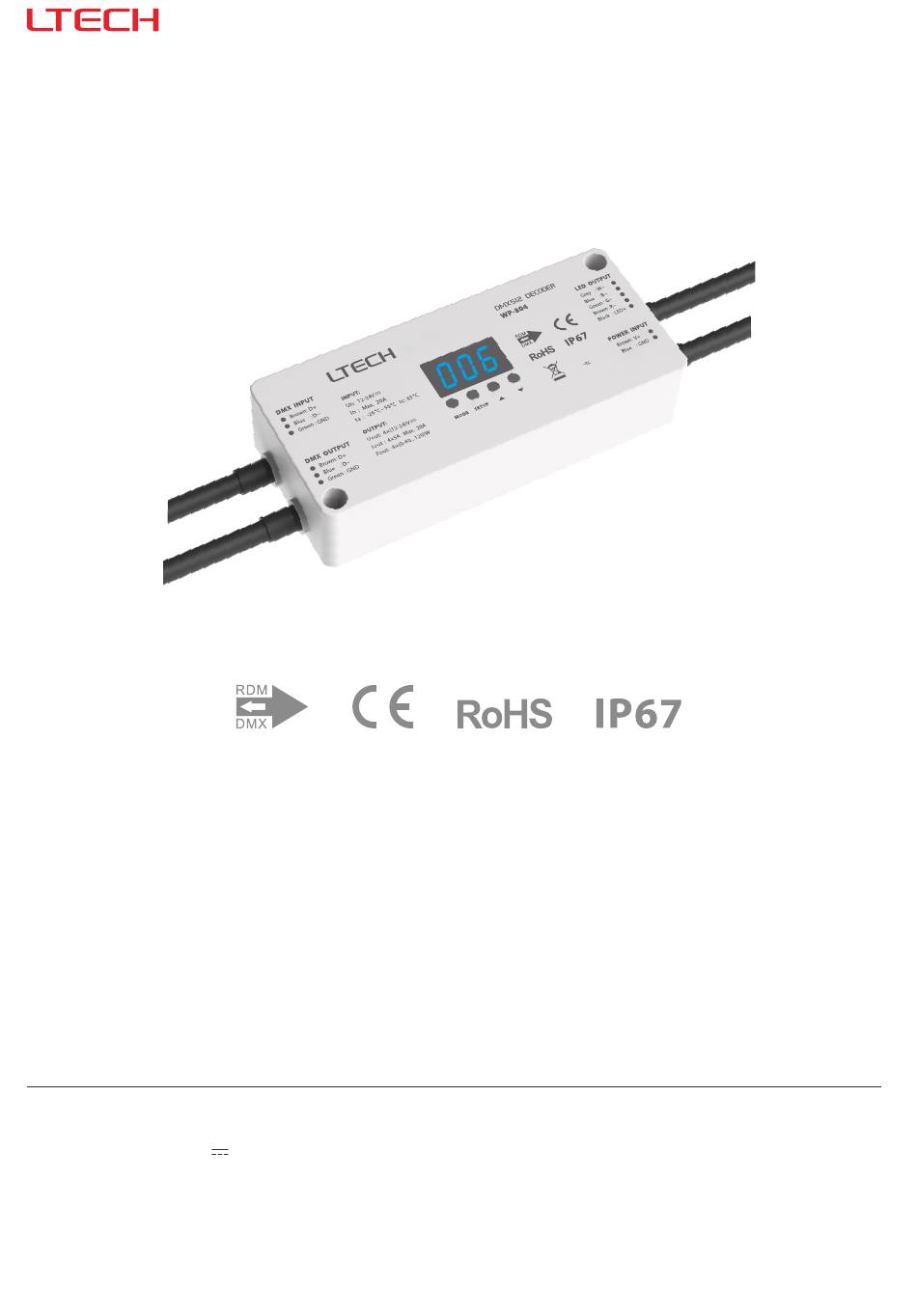

WP-804 uses the RDM protocol and supports DMX512/RDM signal bi-directional communication. The RDM pro-
tocol enables the remote management such as reading/ writing DMX address (the DMX master must be RDM
compliant). WP-804 has 4 channel output with max. 5A output for each channel. It can be used to control DIM,
CT, RGB, RGBW constant voltage lights and achieve 0-100% dimming or various lighting effects. WP-804 can be
operated in DMX mode or in customized mode.
It is easy to set address via digital display and buttons. WP-804 is a waterproof decoder with IP67 rating, sui-
table for outdoor and damp environments.
Product Parameters
WP-804
Input Signal:
DMX512, RDM
Input Voltage:
12-24V
Output Current:
Max. 5A/CH Max. 20A(4CH)
Output Power:
(0-60...120)W/CH Max. 480W(4CH)
Dimming Range: 0-100%
WP-804
DMX/RDM CV Decoder
Working Temp.:
Dimensions(L×W×H):
Package Size(L×W×H): L230×W95×H47mm
Weight(N.W.):
Protection:
1
WP-804 DMX/RDM CV Decoder
-20°C~50°C
L164×W70×H36mm
690g
Short circuit, over temperature, over
current protection, auto recovery.
Advertisement
Table of Contents
Related Manuals for Ltech WP-804
Summary of Contents for Ltech WP-804
- Page 1 DMX address (the DMX master must be RDM compliant). WP-804 has 4 channel output with max. 5A output for each channel. It can be used to control DIM, CT, RGB, RGBW constant voltage lights and achieve 0-100% dimming or various lighting effects. WP-804 can be operated in DMX mode or in customized mode.
- Page 2 WP-804 DMX/RDM CV Decoder Product Size 164mm 146mm Main Component Description Digital display DMX/RDM signal input LED lamp connection DMX/RDM signal output CV power input Digital display: Access Configuration: Long press the MODE button for more than 2s. Adjust Value: Short press or button.
- Page 3 WP-804 DMX/RDM CV Decoder OLED display interface DMX mode Short press the MODE button and button simultaneously. When the screen displays "L-1", it enters the DMX mode. Long press Mode button for 2s to enter the menu. After parameter settings are com- pleted, Long press the SETUP button for more than 2s to save the configuration.
- Page 4 WP-804 DMX/RDM CV Decoder Customized mode Short press the MODE and button simultaneously. When the screen displays "L-2", it enters the customized mode. Long press the MODE button for 2s to enter the menu. After parameter sett- ings are completed, Long press the SETUP button for more than 2s to save the configuration.
- Page 5 WP-804 DMX/RDM CV Decoder Wiring Diagram DMX console DMX/RDM input LED+ WP-804 CV power 12-24V LED+ WP-804 CV power 12-24V LED+ WP-804 CV power 12-24V When more than 32 DMX decoders are connected, DMX signal amplifiers are needed and signal amplification should not be more than 5 times continuously.
- Page 6 1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or conse- quential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail. Update Time: 27/02/2023_A0...
